SOLID CBPF 3400-4200MHz C-BAND BAND PASS FILTER
₹10,000.00
Reward Points: 200
Price in reward points: 10000

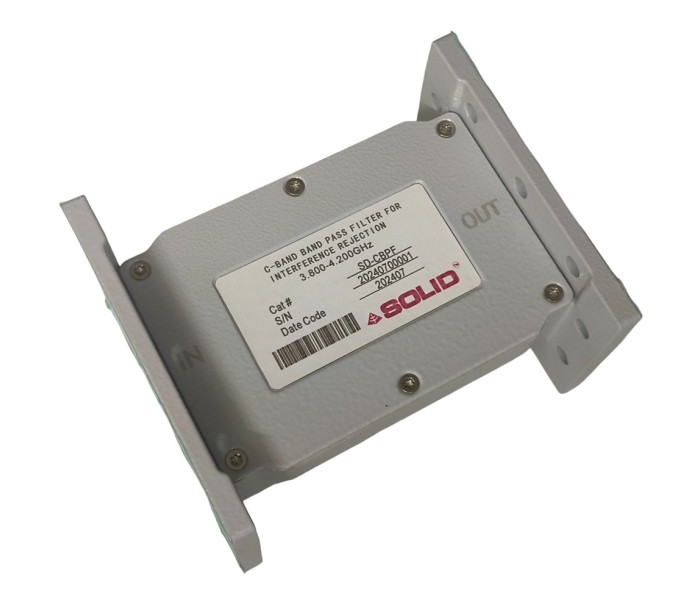

SOLID CBPF 3400-4200MHz C-BAND BAND PASS FILTER
Pass band: 3400-4200MHz
Suitable for indoor and outdoor applications
Plane mounting
Connector Type， Flange
|
Electrical Specifications |
|||
|
Type No. |
FT6B34420030 |
||
|
Frequency Band (MHz) |
3400-4200 |
||
|
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.6max |
||
|
Rejection (dB) |
≥75@3000-3200MHz,≥70@3200-3300MHz, ≥25@4250-4400MHz, ≥70@4400-5000MHz |
||
|
Return Loss (dB)/VSWR |
≤-18/1.3:1 |
||
|
Input Power (W) |
<100 |
||
|
Mechanical Specifications |
Environmental & Compliance |
||
|
Dimensions,HxWxD (mm) |
160x98.4x69.9 |
Operational Temperature (°C) |
-40 to +65 |
|
Weight (kg) |
0.7 |
Operational Humidity (%) |
≤95 |
|
Packing Size(mm) |
235x170x120 |
Environment |
IP66 |
|
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
|
Color |
Apple White |
RoHS |
Compliant |
|
Mounting |
Plane mounting |
|
|
