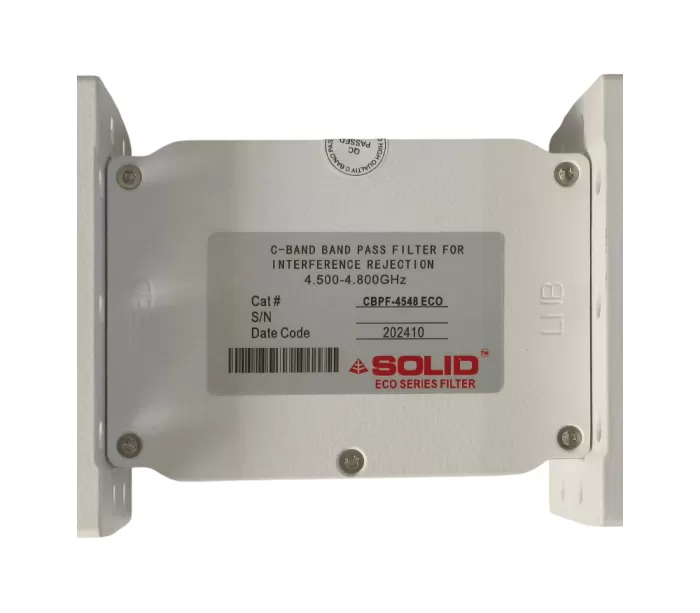

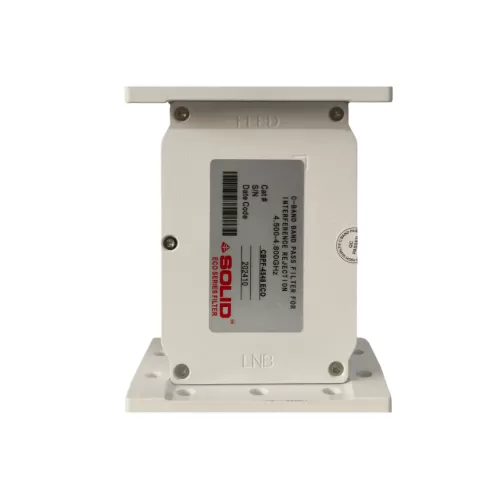

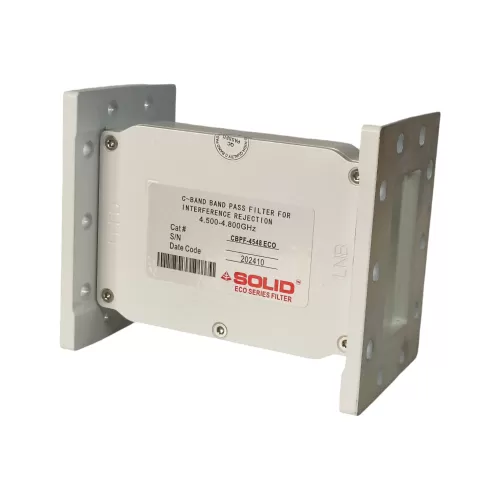

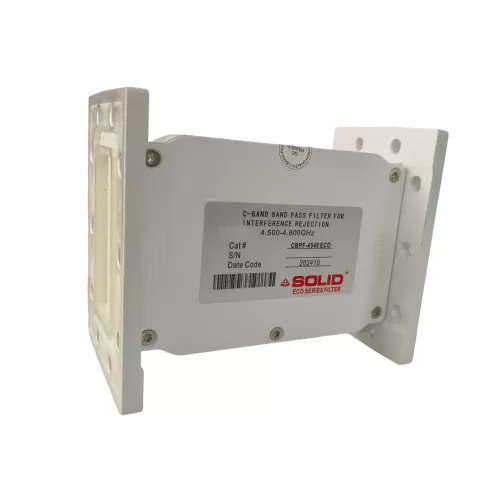

SOLID CBPF 4500-4800MHz / 4.5-4.8 C-BAND BAND 5G PASS FILTER
SOLID CBPF 4500-4800MHz / 4.5-4.8 BAND 5G PASS FILTER
The SOLID CBPF 4500-4800MHz / 4.5-4.8 C-BAND 5G PASS FILTER is a type of radio frequency (RF) filter designed for 5G networks.
Here are some key features and specifications -
Key Features -
Frequency Range: 4500-4800 MHz (4.5-4.8 GHz)
C-Band Filter: Designed for C-Band 5G frequencies
Pass Filter: Allows 5G signals to pass through while rejecting other frequencies
High Selectivity: Provides sharp rejection of out-of-band frequencies
Low Insertion Loss: Minimizes signal loss, ensuring high-quality 5G connectivity
Applications -
5G Base Stations: Used to filter out unwanted frequencies and ensure high-quality 5G signal transmission
Cellular Networks: Deployed in cellular networks to improve 5G signal quality and reduce interference
Wireless Communication Systems: Used in various wireless communication systems, including satellite communications and radar systems
Specifications - |
|||
|
Type No. |
FT6B45480010 |
||
|
Frequency Band (MHz) |
4500-4800 |
||
|
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.9max |
||
|
Rejection (dB) |
≥18@4450&4850MHz,≥60@4350&4950MHz,≥70@Below3500&Belo w5800MHz |
||
|
Return Loss (dB)/VSWR |
≤-18/1.3:1 |
||
|
Input Power (W) |
<100 |
||
|
Mechanical Specifications |
Environmental & Compliance |
||
|
Dimensions,HxWxD (mm) |
170x98.5x69.9 |
Operational Temperature (°C) |
-40 to +65 |
|
Weight (kg) |
0.8 |
Operational Humidity (%) |
≤95 |
|
Packing Size(mm) |
235x170x120 |
Environment |
IP67 |
|
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
|
Color |
Apple White |
RoHS |
Compliant |
|
Mounting |
Plane mounting |
Finish |
UV resistant Epoxy |
