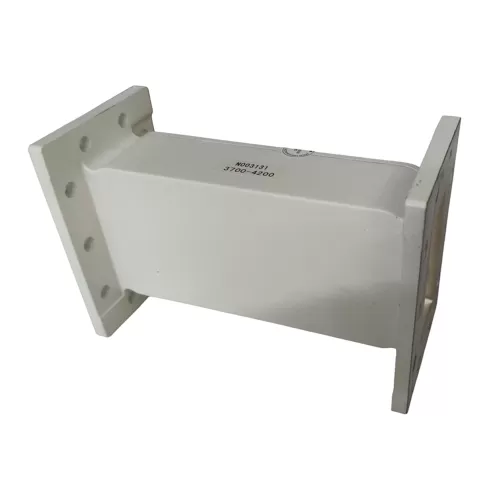

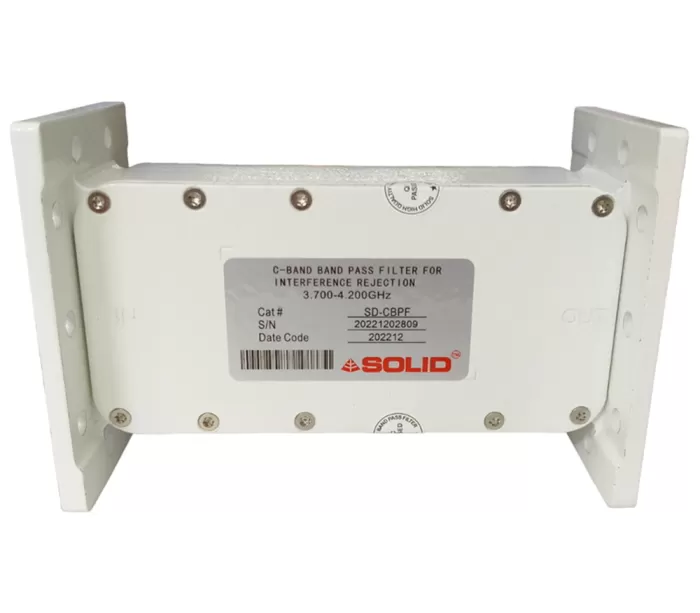

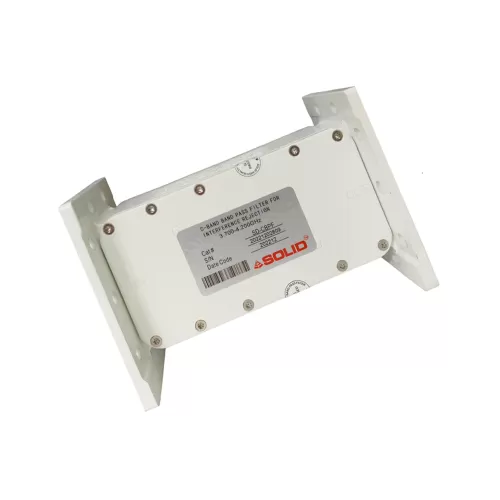

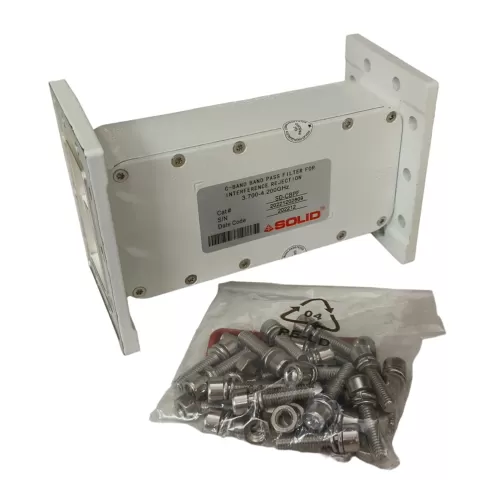

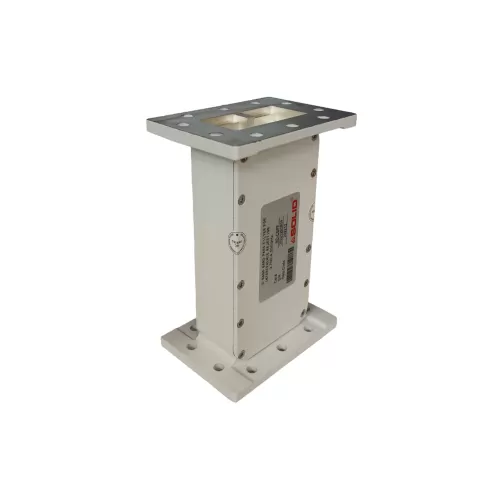

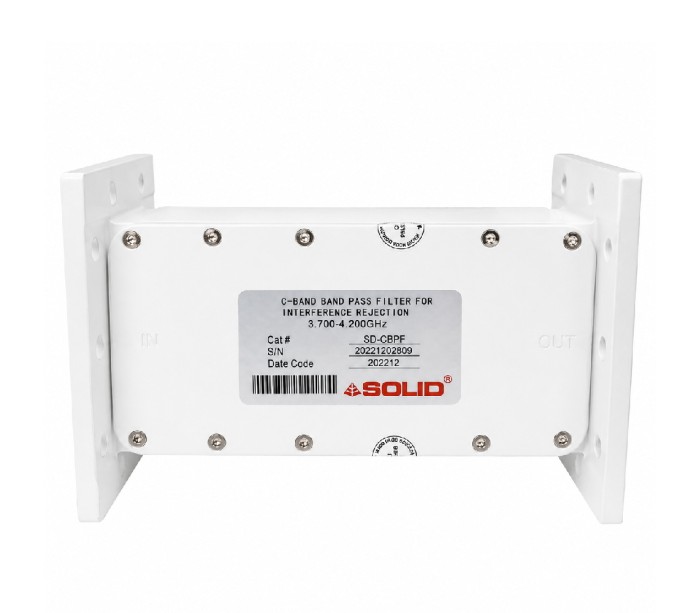

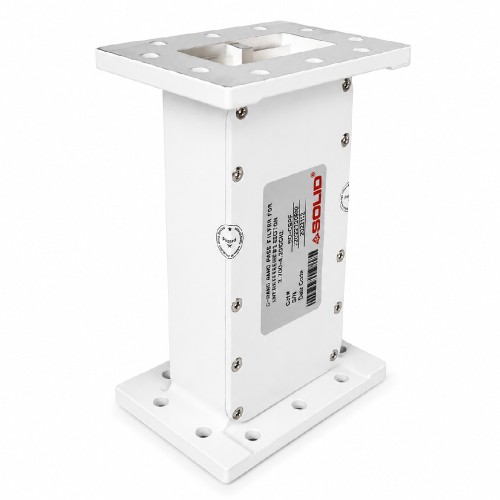

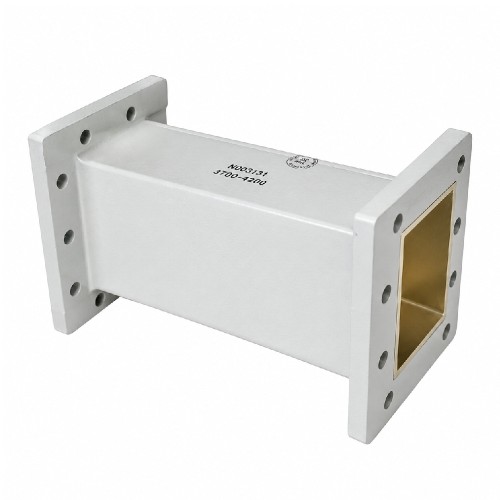

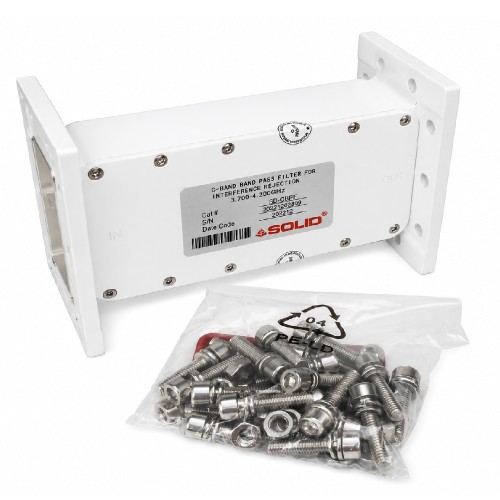

SOLID C-BAND BAND 5G PASS FILTER

The SOLID C-BAND BAND 5G PASS FILTER is a specialized filter designed for C-band satellite communications systems.

Here's a detailed overview:

Key Features -

C-Band Support: The filter operates within the C-band frequency range (3.7-4.2 GHz), which is commonly used for satellite communications.

5G Pass Filter: The filter allows 5G signals to pass through while rejecting other frequencies, ensuring that the C-band satellite signal is protected from interference.

High Selectivity: The filter has a high selectivity, which means it can effectively differentiate between the desired C-band signal and unwanted signals, including 5G interference.

Benefits -

Reduces Interference: The filter helps to minimize interference from 5G networks and other sources, ensuring a stable and clear C-band satellite signal.

Protects C-Band Signals: By allowing 5G signals to pass through while rejecting other frequencies, the filter protects the C-band signal from interference and ensures reliable communication.

Improves Signal Quality: The high selectivity of the filter ensures that the desired C-band signal is not affected by unwanted signals, resulting in improved signal quality.

Applications -

Satellite Communications: The SOLID C-BAND BAND 5G PASS FILTER is designed for use in C-band satellite communications systems, including satellite TV broadcasting, telecommunications, and internet services.

Teleports and Earth Stations: The filter can be used in teleports and earth stations to protect C-band signals from interference and ensure reliable communication.

Satellite Operators: Satellite operators can use this filter to protect their C-band signals from interference and ensure high-quality communication services.

Other Features -

• Rejects terrestrial interference in C-Band (5G, Telecom Radar, and C-Band transmitter)

• Easily installed between the feed and LNB

• Suitable for use with Norsat’s C-Band LNBs

• Environmentally sealed and moisture resistant

SPECIFICATIONS  -

Frequency Range 3.70 to 4.20 GHz

VSWR 1.4: 1 max.

Insertion Loss in Band 0.5 dB max.

Rejection -

25 dB min at 3.650 GHz and 4.250 GHz

60 dB min at 3.550 GHz and 4.350 GHz

70 dB min at 3.500 GHz and 4.400 GHz

Group delay variation within +/-0.5MHz 0.6 sec

Weight -  550 g
