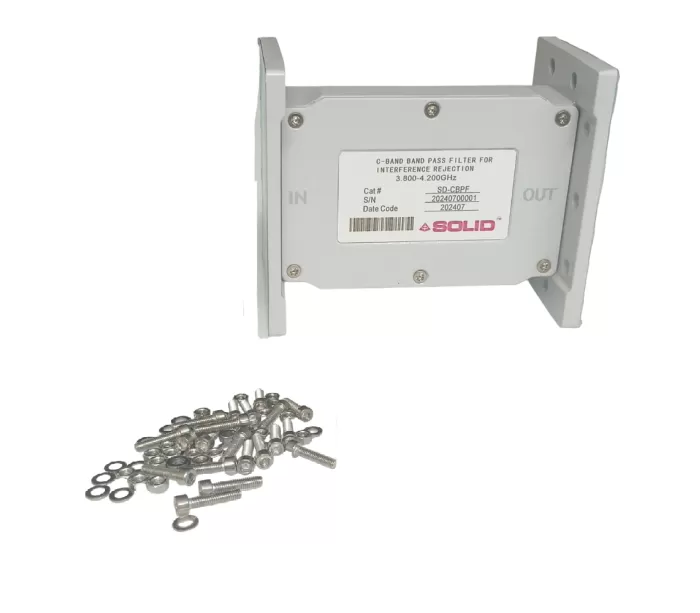

SOLID CBPF-3800-4200MHz BAND 5G PASS FILTER

SOLID CBPF-3800-4200MHz BAND 5G PASS FILTER

Name: SOLID CBPF-3800-4200MHz BAND 5G PASS FILTER
Brand: Solid
SKU: CBPF-3800-4200
Price: 10000.00 INR
Availability: OutOfStock

0 reviews • Write a review

Brand: Solid Product Code: CBPF-3800-4200 Out Of Stock

₹10,000.00 Reward Points: 200 Price in reward points: 10000

ACTIVE OFFERS !!

NEW YEAR OFFER - Sony LIV, Dangal Play & 10+ OTT Apps Bundle Pack for 1 Months

Don't want

Qty

Description
Reviews (0)

SOLID CBPF-3800-4200MHz BAND 5G PASS FILTER

The SOLID CBPF-3800-4200MHz C-BAND 5G PASS FILTER is a high-performance filter designed to allow 5G signals to pass through while filtering out other frequencies in the C-Band satellite frequency range. Here's an overview:

Key Features:

C-Band Frequency Range: 3800-4200 MHz, covering a portion of the C-Band satellite frequency range.

5G Pass Filter: Allows 5G signals to pass through while filtering out other frequencies.

High Rejection: Provides high rejection of out-of-band frequencies, ensuring minimal interference.

Low Insertion Loss: Minimizes signal loss, ensuring high-quality signal transmission.

Compact Design: Suitable for use in various satellite communication systems.

Technical Specifications:

Frequency Range: 3800-4200 MHz

Insertion Loss: 0.4 max

Return Loss: ≤-19/1.25:1

Connector Type: Flange

Applications:

Satellite Communications: Suitable for use in C-Band satellite communication systems.

Teleports: Ideal for teleport operators requiring high-quality signal transmission.

Earth Stations: Compatible with earth stations for satellite communications.

Electrical Specifications
*Type No.*		*FT6B38420080*
Frequency Band (MHz)		3800-4200
Insertion Loss (dB)(Full temperature,Outcluding connectors)		0.4 max
Rejection (dB)		≥75@3000-3600MHz,≥70@3600-3700MHz, ≥25@4250-4400MHz, ≥70@4400-5000MHz,
Return Loss (dB)/VSWR		≤-19/1.25:1
Input Power (W)		<100
Grorp Delay(ns)		0.6 (Within +/-0.5MHz)
Mechanical Specifications		Environmental & Compliance
Dimensions,HxWxD (mm)	120x98.4x69.9	Operational Temperature (°C)	-40 to +65
Weight (kg)	0.65	Operational Humidity (%)	≤95
Packing Size(mm)	190x170x130	Environment	IP67
Connector Type	CPR-229G(input),CPR-229F(output)	Application	Indoor and Outdoor
Color	Apple White	RoHS	Compliant
Mounting	Plane mounting	Finish	UV resistant Epoxy
