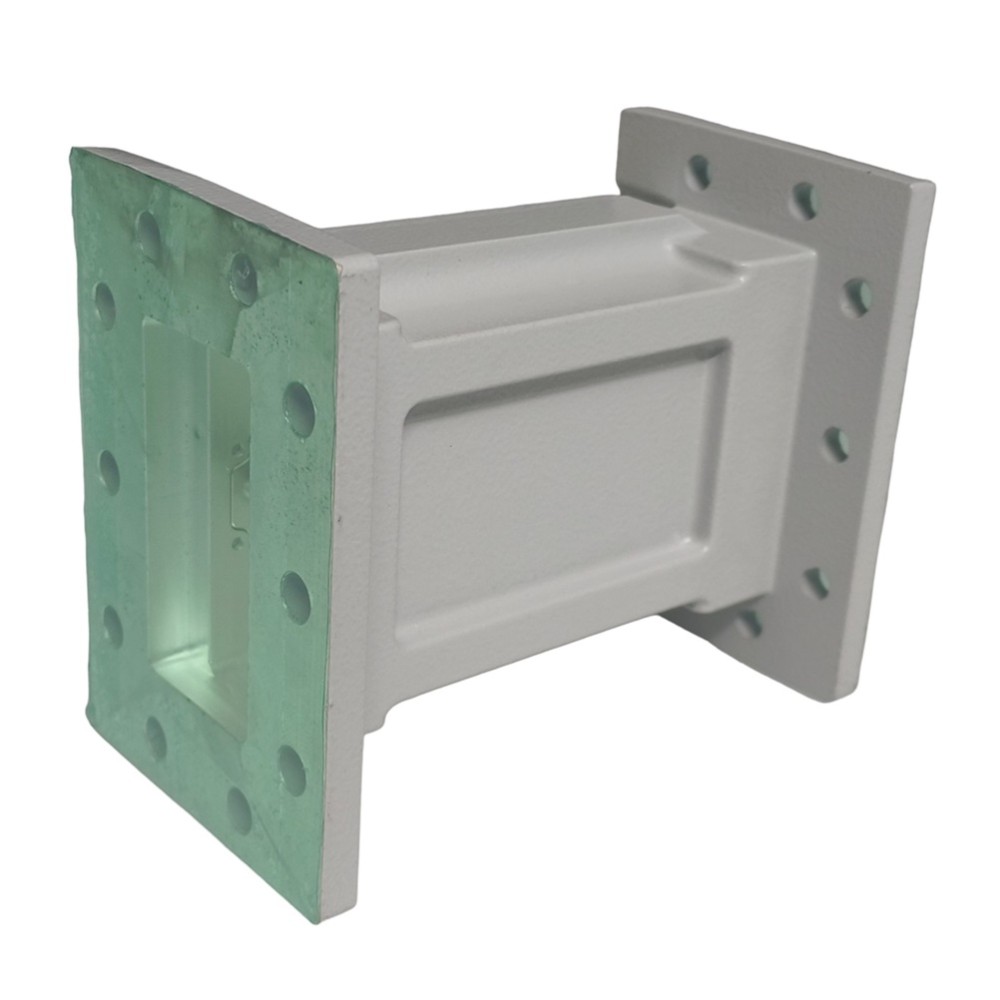

SOLID CBPF 3720-4200MHz C-BAND BAND PASS FILTER
SOLID CBPF 3720-4200MHz C-BAND BAND PASS FILTER
• Rejects terrestrial interference in C-Band (5G, Telecom Radar, and C-Band transmitter)
• Easily installed between the feed and LNB
• Suitable for use with Norsat’s C-Band LNBs
• Environmentally sealed and moisture resistant
Pass band: 3720-4200MHz
Suitable for indoor and outdoor applications
Plane mounting
Connector Type， Flange
|
Electrical Specifications |
|||
|
Type No. |
FT6B37420240 |
||
|
Frequency Band (MHz) |
3720-4200 |
||
|
Insertion Loss (dB)(Full temperature,Outcluding connectors) |
0.4 max |
||
|
Rejection (dB) |
≥75@3000-3520MHz,≥70@3520-3620MHz, ≥25@3620-3670MHz, ≥25@4250-4400MHz, ≥70@4400-5000MHz, |
||
|
Return Loss (dB)/VSWR |
≤-19/1.25:1 |
||
|
Input Power (W) |
<100 |
||
|
Grorp Delay(ns) |
0.6 (Within +/-0.5MHz) |
||
|
Mechanical Specifications |
Environmental & Compliance |
||
|
Dimensions,HxWxD (mm) |
120x98.4x69.9 |
Operational Temperature (°C) |
-40 to +65 |
|
Weight (kg) |
0.65 |
Operational Humidity (%) |
≤95 |
|
Packing Size(mm) |
190x170x130 |
Environment |
IP67 |
|
Connector Type |
CPR-229G(input),CPR-229F(output) |
Application |
Indoor and Outdoor |
|
Color |
Apple White |
RoHS |
Compliant |
|
Mounting |
Plane mounting |
Finish |
UV resistant Epoxy |
