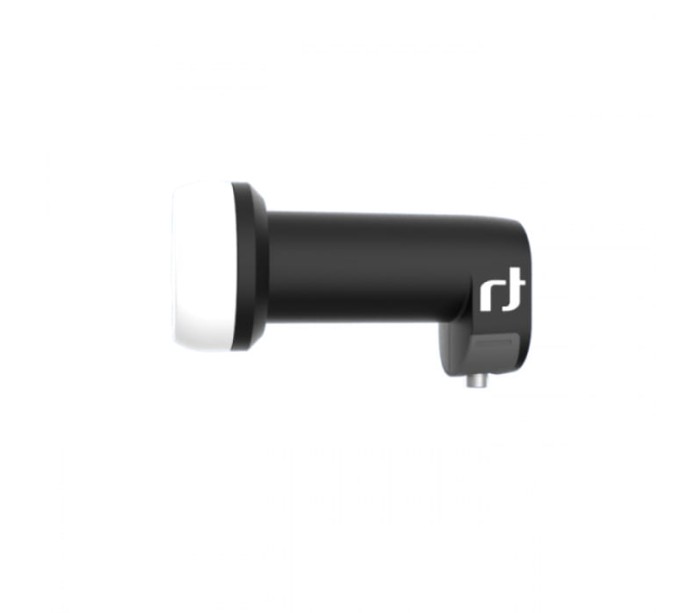

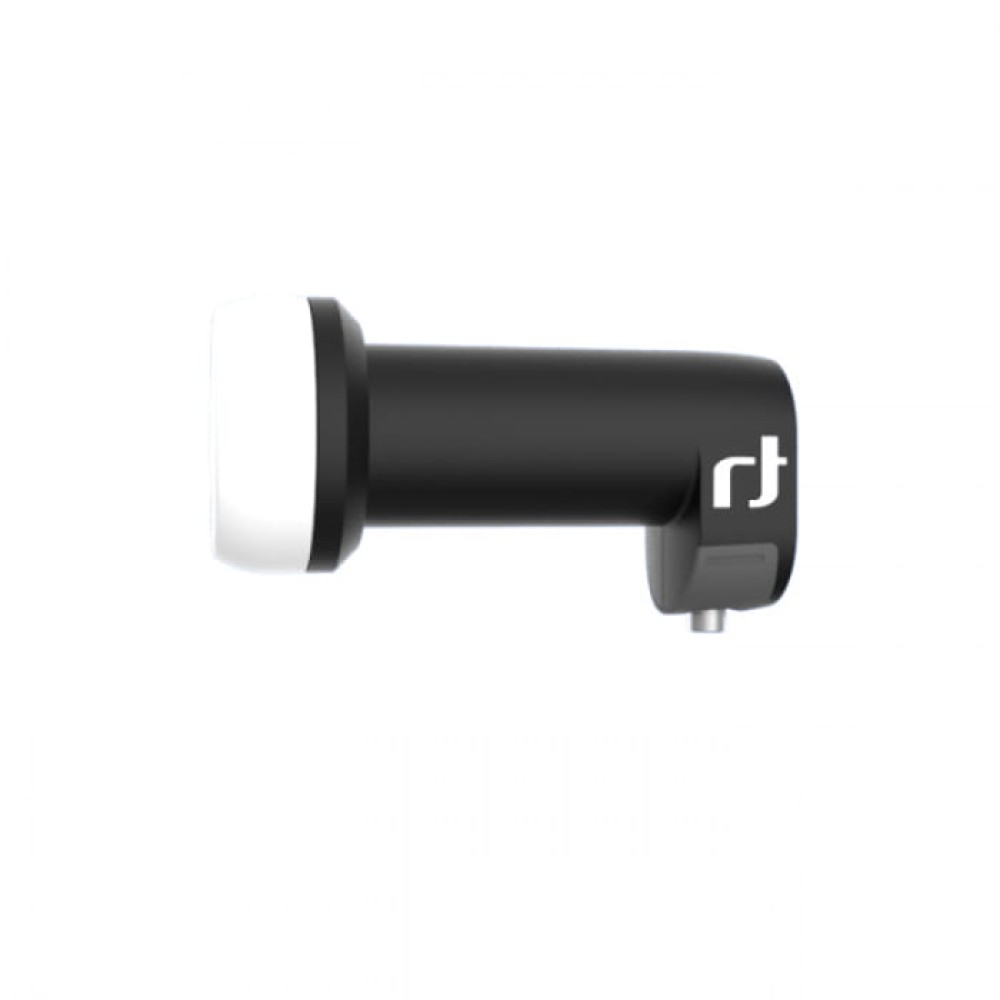

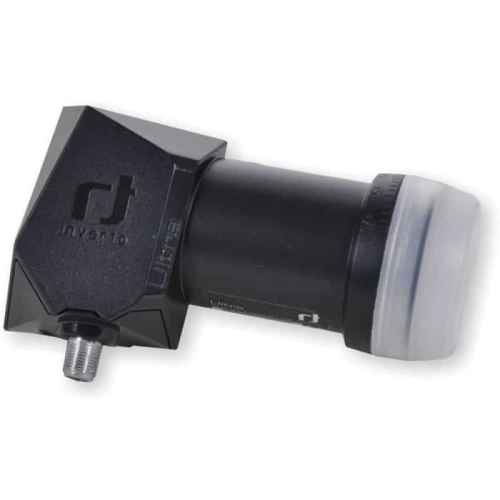

Inverto Black NR3116 Ultra Single HGLN 40mm LNB

This LNB is a high-performance product

featuring the lowest noise figure available to address the need for superior reception under the edges of the satellite footprint skirt. Thanks to its novel front-end architecture and superior components, this LNB provides higher conversion gain yet with the lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross-polarization isolation, and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. This LNB enables the reception of signals from one satellite, its distribution to a single tuner Set-top box and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Main Features:

Superior Phase Noise performance, DVB-S2 (HDTV) compliant

Excellent Cross Polarization Isolation

Very Low Spurious Levels

Superior Noise Figure

Higher Conversion Gain

Ultimate Reliability

Technical specifications

Low band input frequency range 10.7 GHz ~ 11.7 GHz

Low band output frequency range 950 MHz ~ 1950 MHz

Low band LO frequency

9.75 GHz

High band input frequency range

11.7 GHz ~ 12.75 GHz

High band output frequency range 1100 ~ 2150 MHz

High band LO frequency

10.6 GHz

Noise figure

0.2 dB typ. (0.7 dB Max.)

LO temperature drift ± 3.0 MHz max.

LO initial accuracy @ 25 °C

± 1.0 MHz max.

LO phase noise @ 10 kHz

-90 dBc/Hz

Conversion gain

60 dB min.

Gain ripple (over 26 MHz bandwidth) ± 0.75 dB

Gain variation (over full band) ± 4 dB max.

Image rejection

40 dB min.

1 dB compression point (@ output) 0.0 dBm min.

Cross talk

22 dB min.

Control signal Ca (V)

11.0 V ~ 14.0 V

Control signal Cb (H)

16.0 V ~ 20.0 V

Control signal Cc (band switching)

22 kHz ± 4 kHz, 0.4V – 0.8V pp

Output VSWR

2.0 : 1

In band spurious level -50 dBm max.

Current consumption

120 mA max. (11 VDC ~ 20 VDC)

Operating temperature

-30 °C ~ +60 °C

Output impedance

75 Ω (F-type)

Output connector type

F-Type (female)

Weight 151 g

Logistical info

Packaging dimensions (W x D x H) 13.2 cm x 7.1 cm x 6.7 cm

Packaging weight 0.22 Kg

Quantity per Carton 60

Carton dimensions (W x D x H) 41.9 cm x 33.2 cm x 35.5 cm

Carton weight 13.01 kg

Quantity per pallet 720

You can Receive TV Signals from Ku-Band like DD Free Dish and suitable with other DTH like Tata Sky, Dish TV, D2H, Sun Direct, Zing Digital, and Airtel DTH. It is also capable to receive other Ku-Band FTA channels from different-2 satellites.
