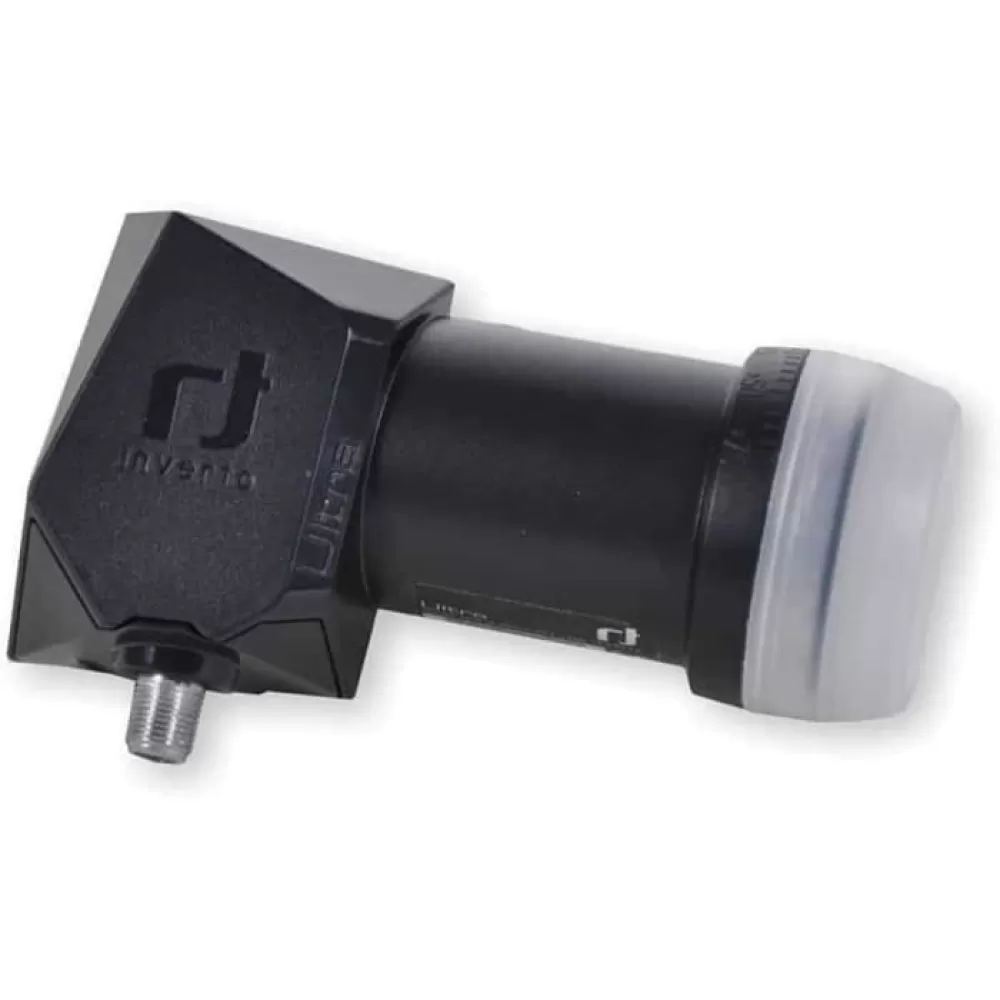

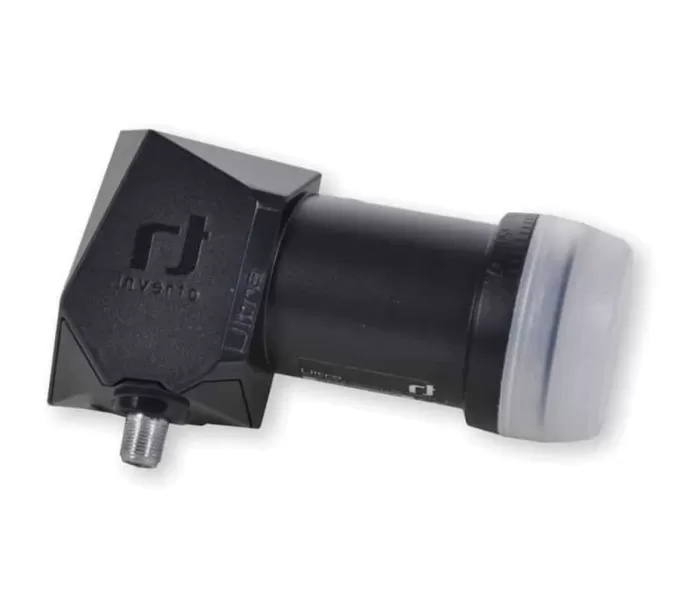

Inverto Ultra Single High-Gain Low Noise 40mm PLL LNB
This LNB provides higher conversion gain yet with a low noise figure and best phase noise performance. The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation, and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to a single tuner Set-top box, and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution.
Main Features:
Novel feed horn design
Superior Phase Noise performance, DVB-S2X compliant supporting Ultra HD (4K and 8K) TV
Excellent Cross Polarization Isolation
Very Low Spurious Levels
Superior Noise Figure with high Conversion Gain
High 4G Immunity
Ultimate Reliability
You can Receive TV Signals from Ku-Band like DD Free Dish and suitable with other DTH like Tata Sky, Dish TV, D2H, Sun Direct, Zing Digital, and Airtel DTH. It is also capable to receive other Ku-Band FTA channels from different-2 satellites.
Technical specifications
Low band input frequency range
10.7 GHz ~ 11.7 GHz
Low band output frequency range
950 MHz ~ 1950 MHz
The low band LO frequency
9.75 GHz
High band input frequency range
11.7 GHz ~ 12.75 GHz
High band output frequency range
1100 ~ 2150 MHz
The high band LO frequency
10.6 GHz
Noise figure
0.2 dB typ. (0.7 dB max.)
LO temperature drift
± 2.0 MHz max.
LO initial accuracy
± 1.0 MHz max.
LO phase noise @ 1 kHz
-70 dBc/Hz
LO phase noise @ 10 kHz
-80 dBc/Hz
LO phase noise @ 100 kHz
-90 dBc/Hz
LO phase noise @ 1 MHz
-100 dBc/Hz
Conversion gain
60 ~ 70 dB
Gain ripple (over 26 MHz bandwidth)
1 dB max. (peak-to-peak)
Gain variation (over full band)
4 dB max. (peak-to-peak)
Image rejection
50 dB min.
3th order intermodulation - ICP3
+10 dBm min
1 dB compression point (@ output)
0 dBm min.
Cross polarization isolation
22 dB min.
Control signal Ca (V)
10.0 V ~ 14.0 V
Control signal Cb (H)
16.0 V ~ 20.0 V
Control signal Cc (band switching)
22 kHz ± 4 kHz, 0.4V – 0.8V pp
Output VSWR
2.0 : 1 max.
In-band spurious level\
-65 dBm max.
Current consumption
100 mA max. (10 VDC ~ 20 VDC)
Operating temperature
-30 °C ~ +60 °C
Output impedance
75 Ω (F-type)
Output connector type
F-Type (female)
Weight
111.2 g
