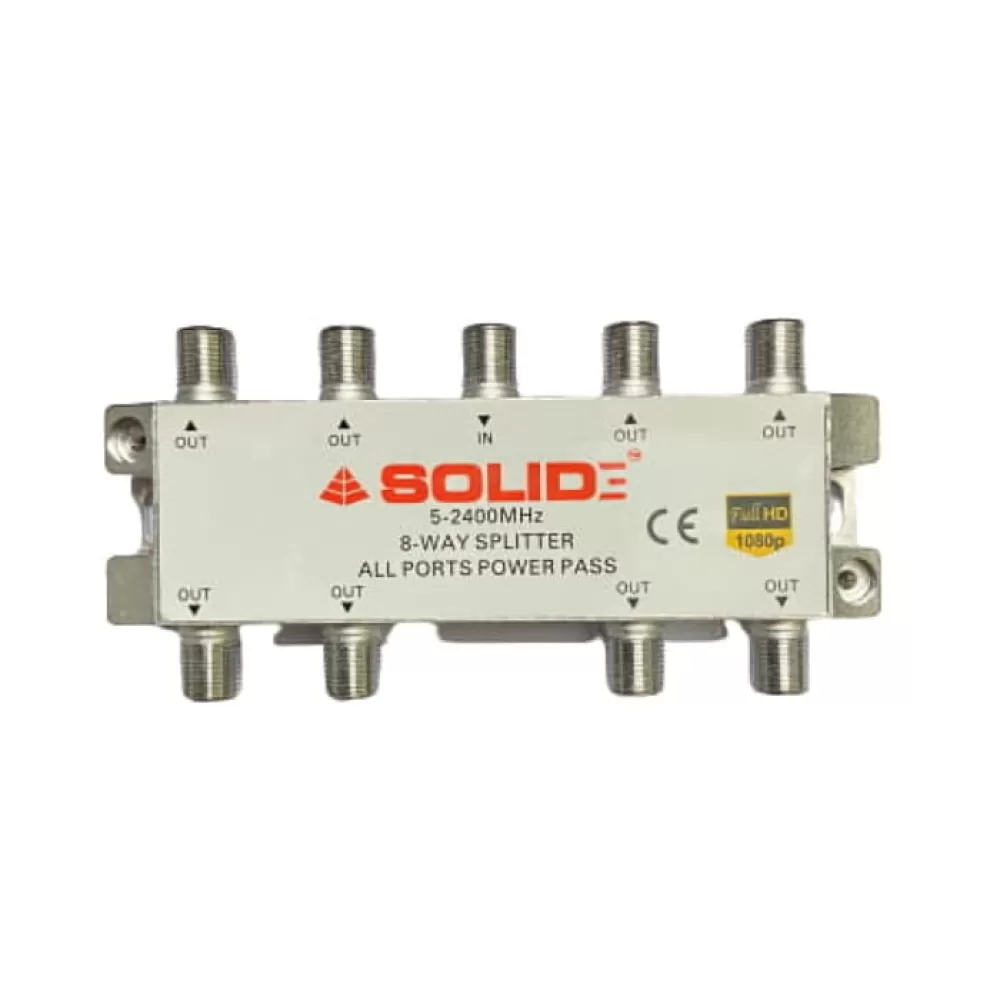

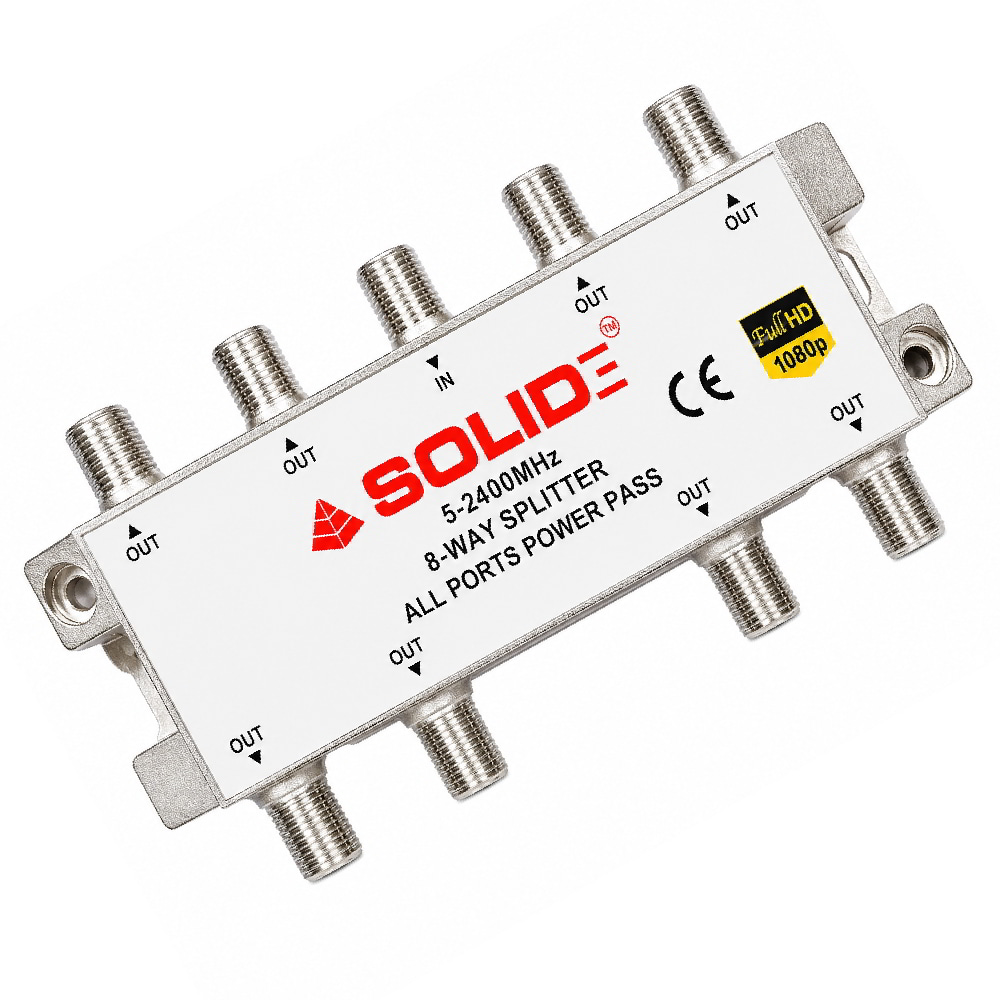

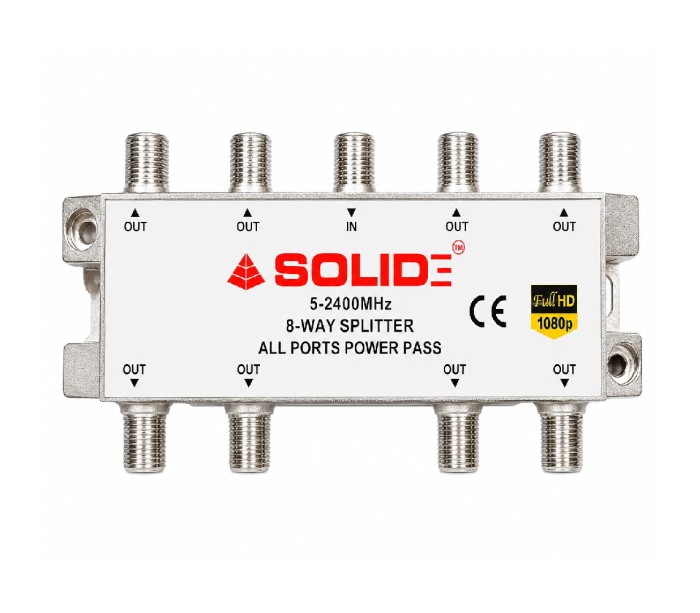

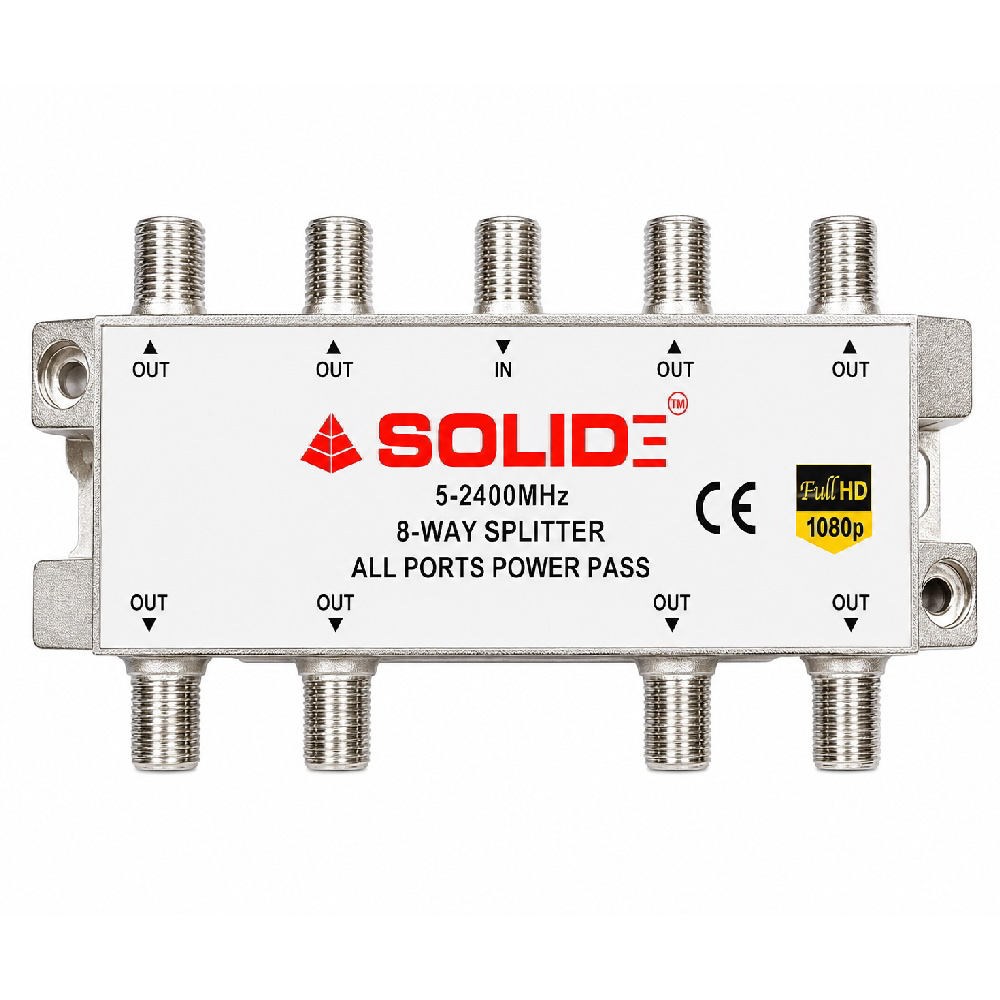

Solid 8-Way Power Pass Splitter

Solid 8-Way Splitter - 8-Way Power pass

The Solid 8-Way Splitter is a high-performance signal distribution solution for SATV/CATV networks. Its robust design, wide frequency range, and high isolation make it an ideal choice for distributing Pay and FTA TV channels from C-Band and Ku-Band satellites. With its low insertion loss and power passing capabilities, this splitter ensures high-quality video and audio transmission, making it a perfect solution for various SATV/CATV applications.

Key Features:

- 8-Way Power Pass: All 8 ports support power passing, with 1 input and 24V, 0.8A (Max.) power handling.

- Wide Frequency Range: Supports 5-2400 MHz frequency range, ideal for distributing Pay and FTA TV channels from C-Band and Ku-Band satellites.

- High Isolation: Ensures minimal signal interference between ports, providing perfect performance index.

- Low Insertion Loss: Minimizes signal loss, ensuring high-quality video and audio transmission.

- F-Connector: All ports feature F-connectors, ensuring secure and reliable connections.

Ideal for:

- Distributing Pay and FTA TV channels from C-Band and Ku-Band satellites

- SATV/CATV networks

- Cable TV distribution

- LNB signal distribution in multi Set-top box connections (H or V, not both simultaneously)

- DD Free Dish and other DTH frequency lists

Zinc Die-cast housing, nickel-plated

Easy installation with two edge hole sites

Screening factor: 5-2400 MHz >100dB

Low insertion loss

High insolation

Perfect performance index

Designed for SATV/CATV Power passing 24V 0.8A (MAX.)

All ports F-(f) connector, 75 Ohm

This 8 Way splitter is easy to use with Cable TV distribution, All 8 ports are power pass with 1 input. You can also use LNB signal distribution in multi Set-top box connection but you can use only H or V at the same time. You can not use both H/V at the same time.

This Splitter can distribute Pay and FTA TV Channels from C-Band and Ku-Band like DD Free Dish. You can get the other DTH frequency list from here.
