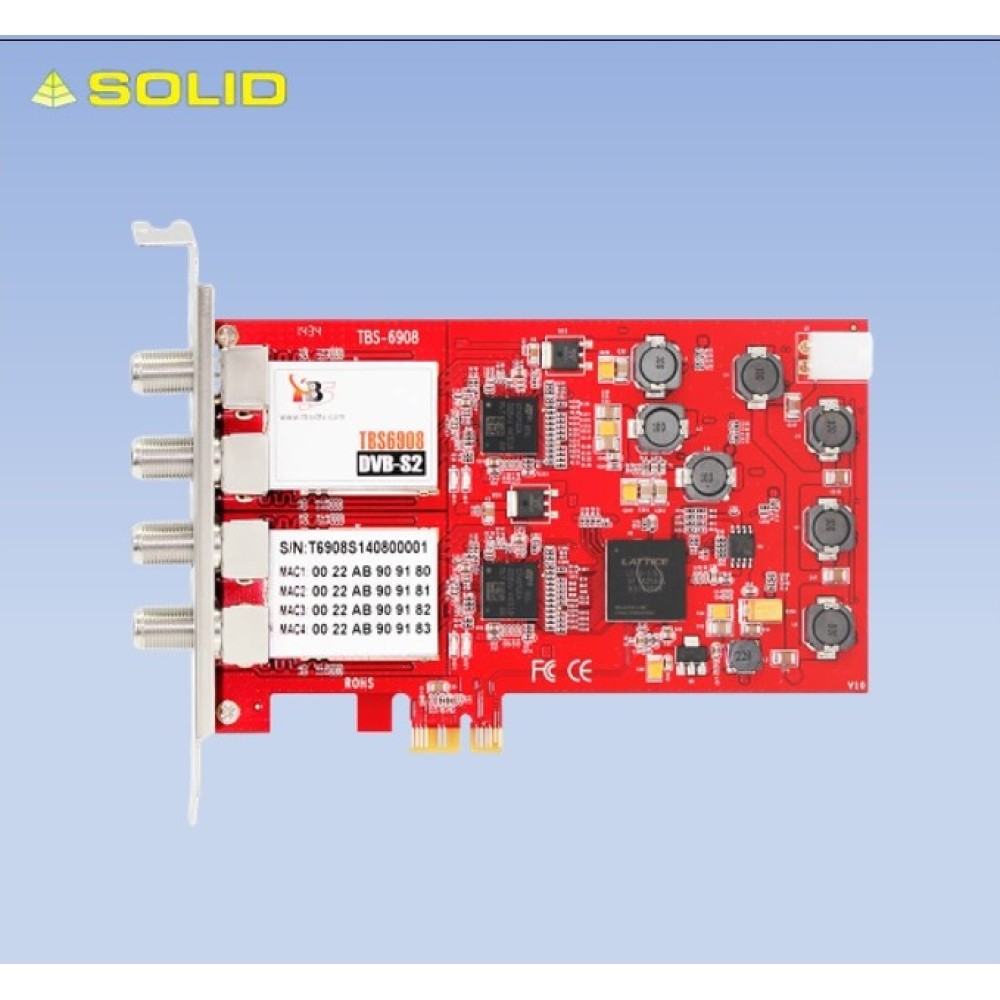

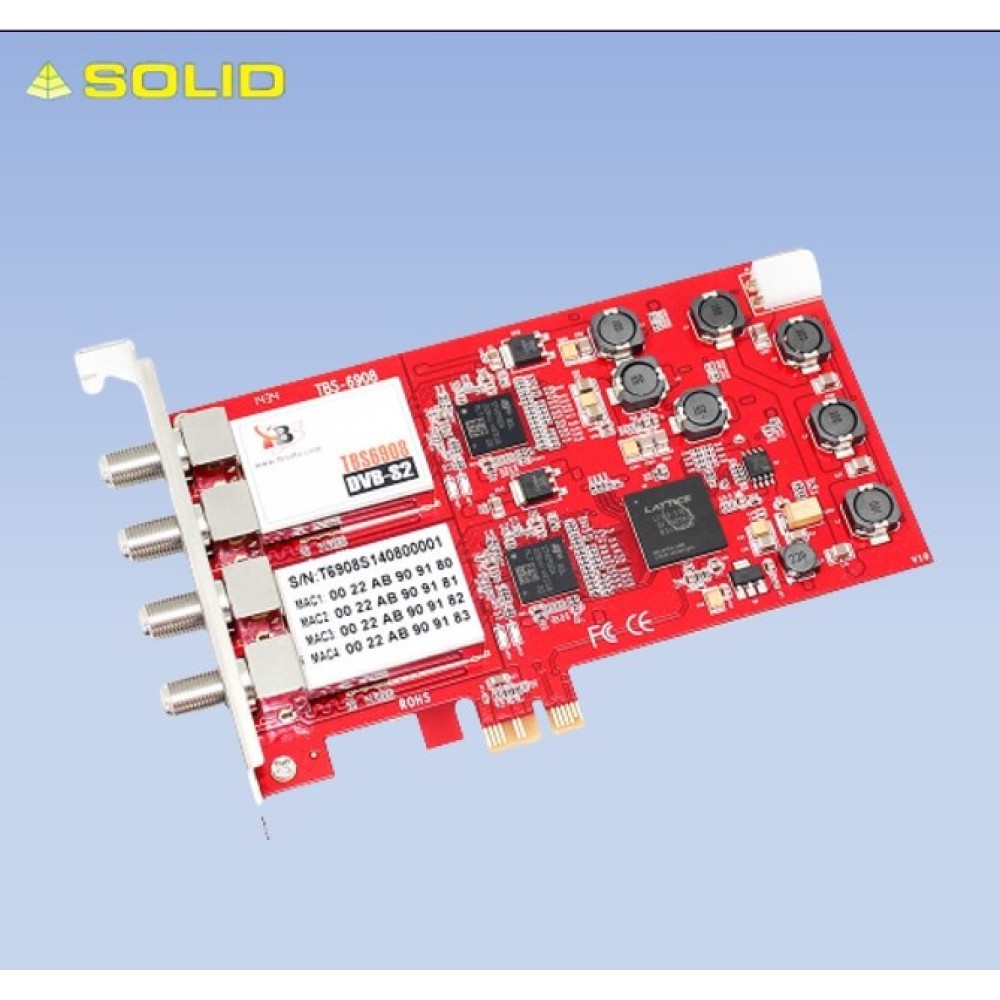

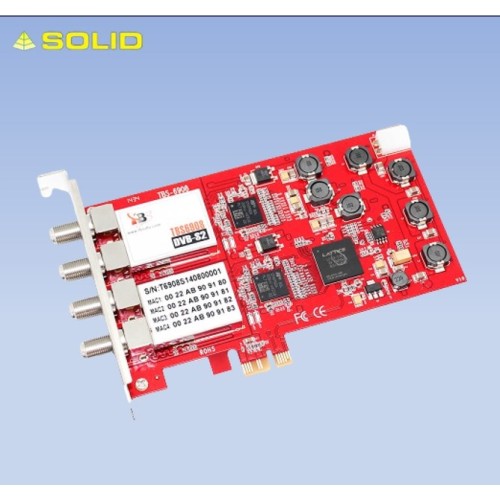

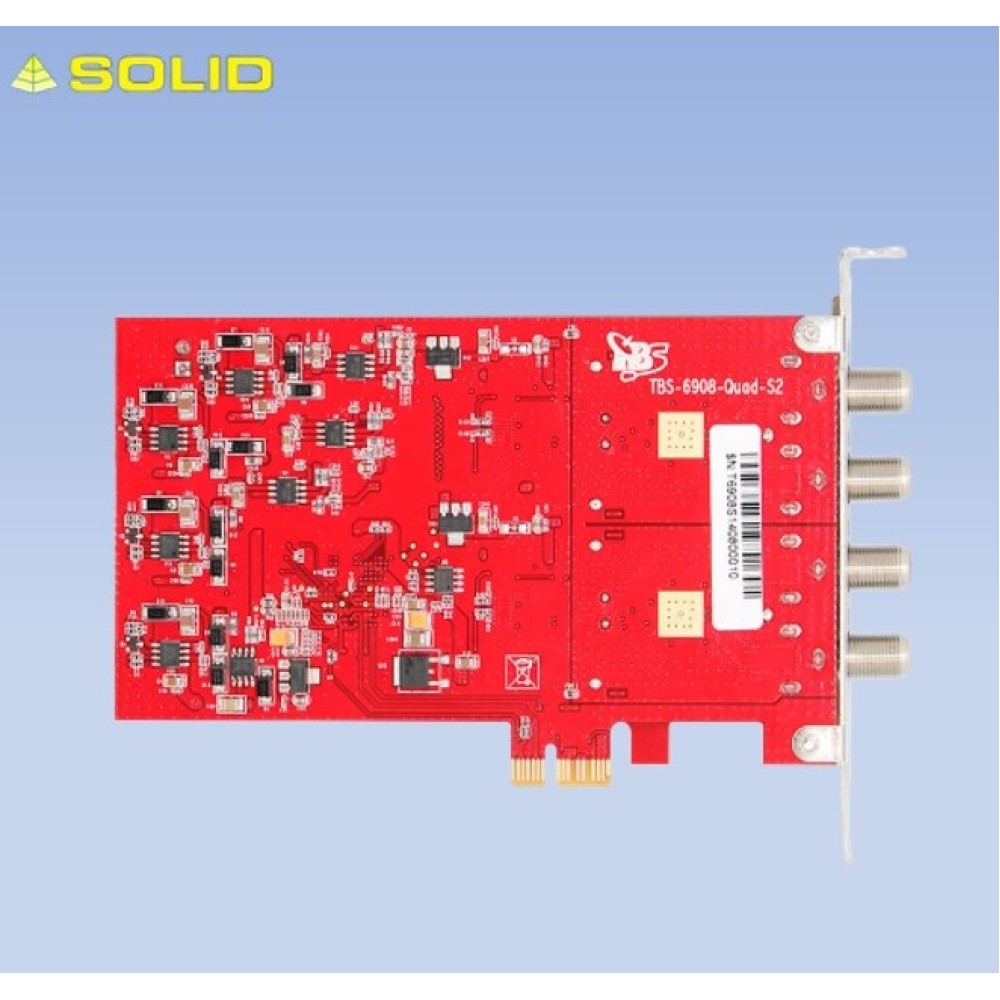

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card

TBS6908 is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6908 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, Multi Input Stream, 16APSK, 32APSK, Generic Stream Mode , which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver up to the latest kernel 3.X are ready.

Specifications:

• Receiving frequency: 950~2150 MHz tuning range
• Input level: -69~-23dBm
• Quad channels DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK ACM/VCM Demodulator
• Symbol rate:
• -Maximum symbol DVB-S2 rate limitations (Msymb/s)

  Msymb/s	Demod	LDPC	Single	Dual
  QPSK	67.5	135	67.5	67.5
  8PSK	67.5	90	67.5	45
  16APSK	67.5	67.5	67.5	33.7
  32APSK	67.5	54	54	27

• -DVB-S
• QPSK+1/2, 2/3, 3/4, 5/6, 7/8
• Support Data Burst & Tone Burst
• Support DiSEqC2.X and Motor
• Dimension: 145*92.3mm (length x height)
• Max Power consumption: 32W

System Requirements:

• Windows XP / Vista/ 7/8/10, Linux
• Pentium 4 2.0 GHz, Pentium M 1.3 GHz
• For HDTV: 2.6 GHz multi core processor
• Hard disk with min. 1 GB free capacity
• Sound and graphics card with support for DirectX 9 or higher
• Available PCI Express x1, x4, x8 or x16 slot
• CD/DVD drive for software installation

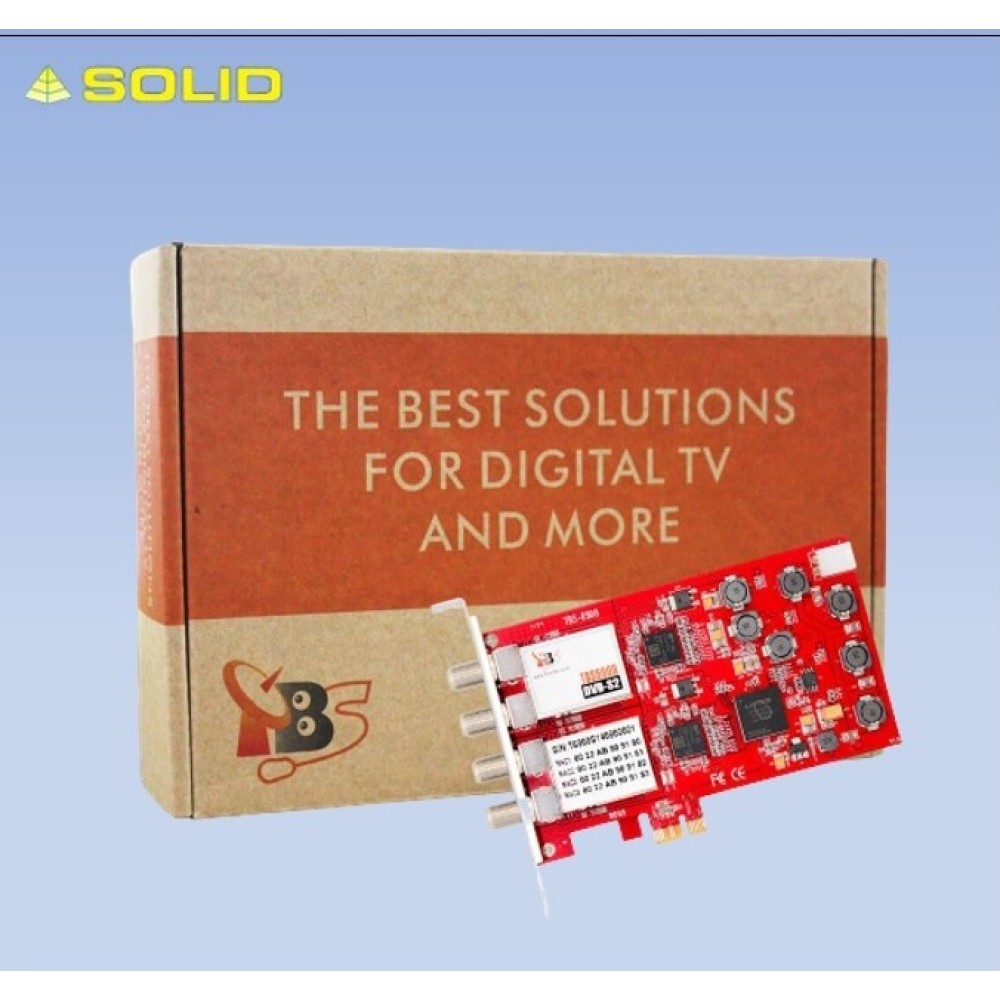

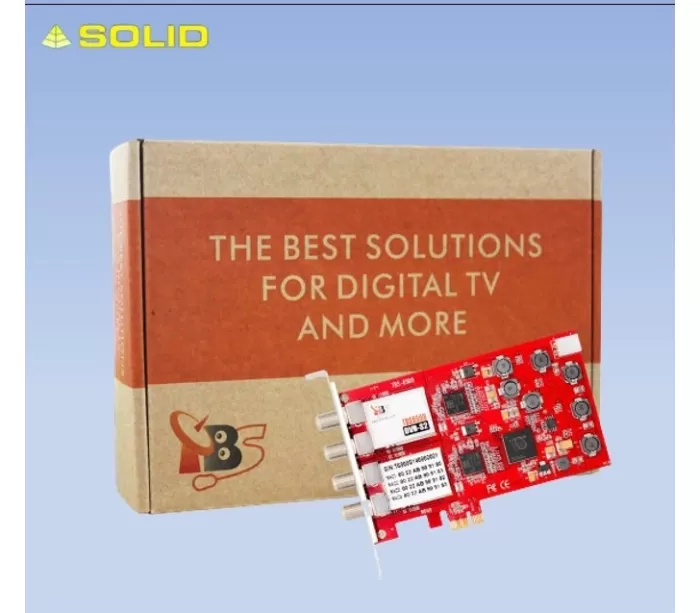

Package Contents:

• 1 x TBS6908
• 1 x DC line
