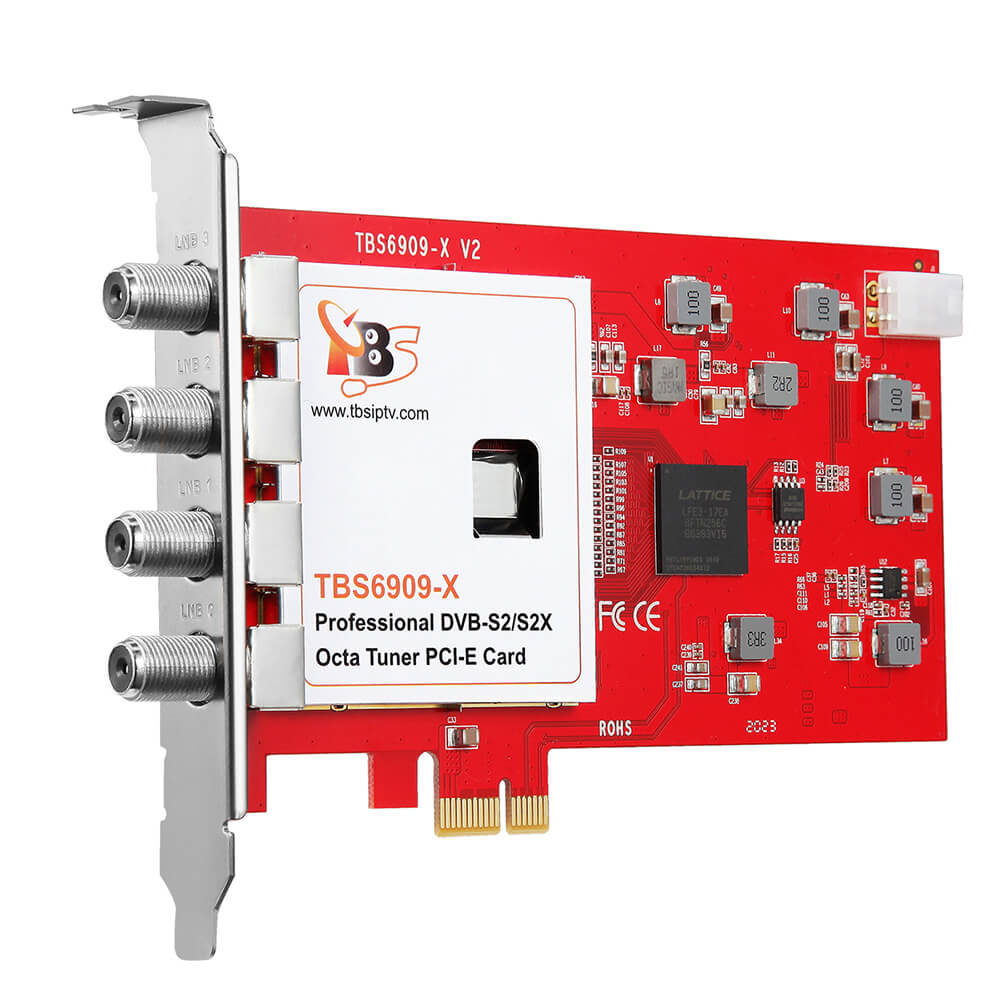

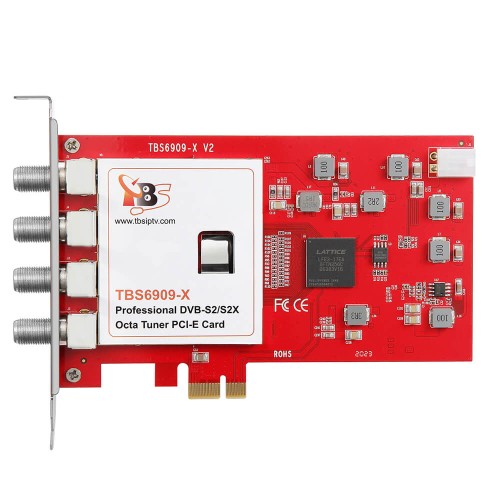

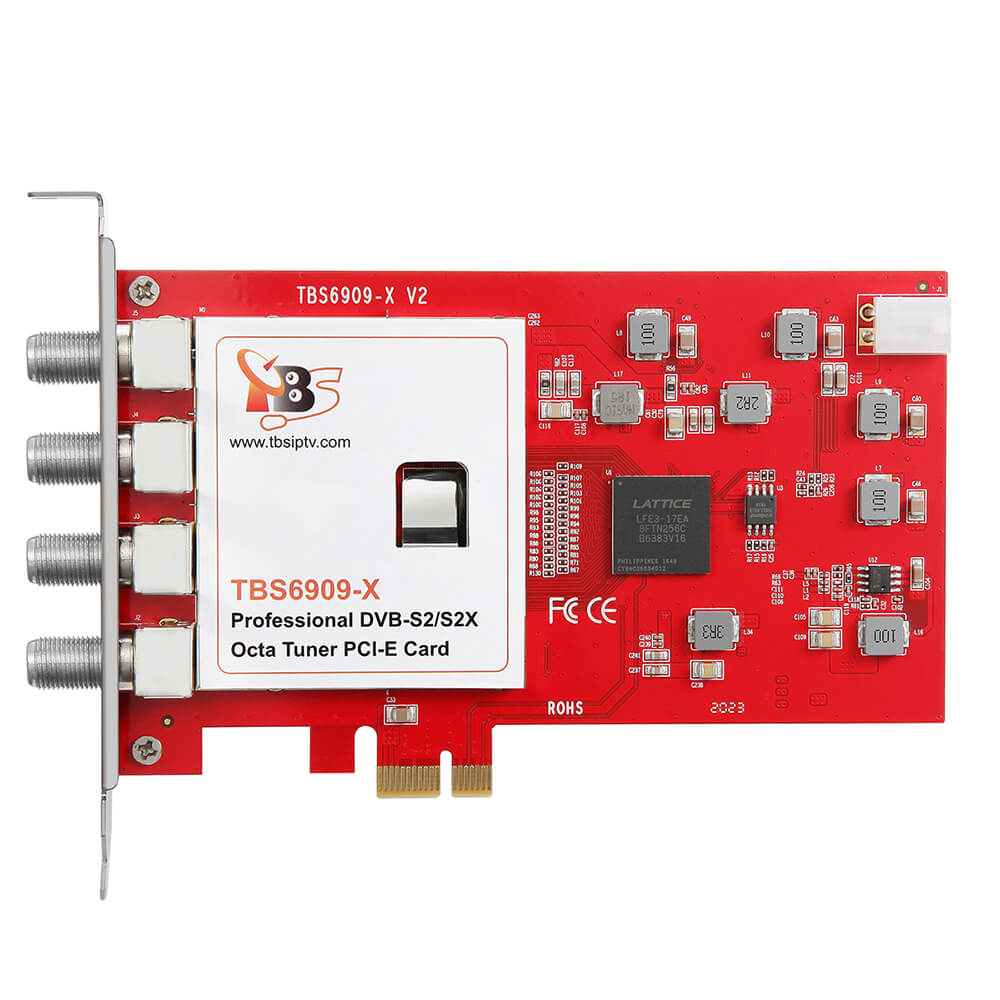

TBS6909-X S/S2/S2X Octa Tuner PCIe Card
TBS6909-X is a powerful S2X/S2 and annex M octa tuner card with PCI Express interface, it is capable of receiving SD/HD digital TV channels from 8 different satellite transponders simultaneously, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.
Main Features:
Support Octa DVB-S/S2/S2X
Fast scanning functionality for all media
Support VCM, ACM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
Support wide band
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specification:
| Model | TBS6909-X | |
| Connection | PCI-express | |
| 4x RF in | ||
| S/S2/S2X | ||
| S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK | 2/3, 32/45 | |
| VCM | Yes | |
| ACM | Yes | |
| Power consumption | ||
| Input/ Power: | 12V/7~15W | |
| temperature | 0°~ 60° | |
| Other information: | ||
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Dimension: | ||
| TV tuner card size | 145*92*1.6mm | |
| Gift Box Size | 200*130*30mm | |
| Weight | 400g | |

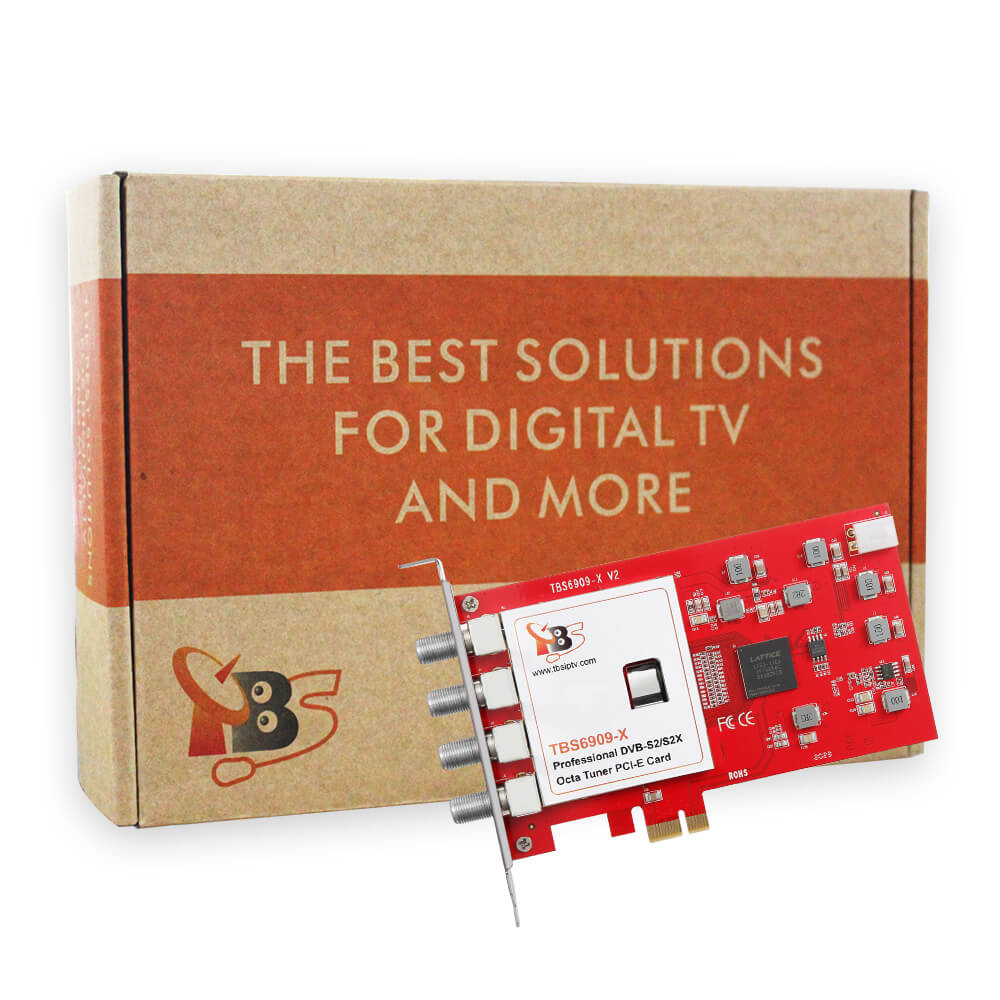

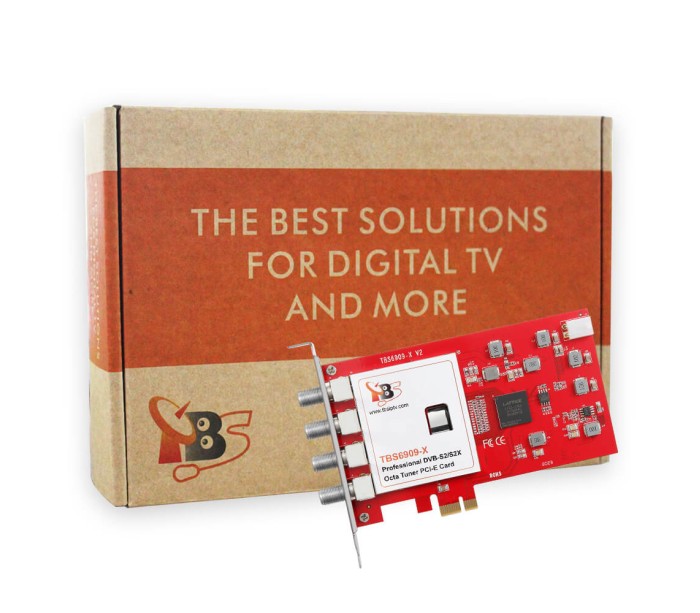

| Package Contents | 1* TBS6909-X | |
| 1* Power cable | ||
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
| Msymb/s | Demod | LDPC | 4 simultaneous demodulators | 6 simultaneous demodulators | 8 simultaneous demodulators |
| QPSK | 64 | 720 | 64 | 60 | 45 |
| 8PSK | 64 | 720 | 60 | 45 | 30 |
| 16APSK | 64 | 720 | 45 | 30 | 22.5 |
| 32APSK | 51 | 720 | 36 | 24 | 18 |
| 64APSK | 43 | 720 | 30 | 20 | 15 |
