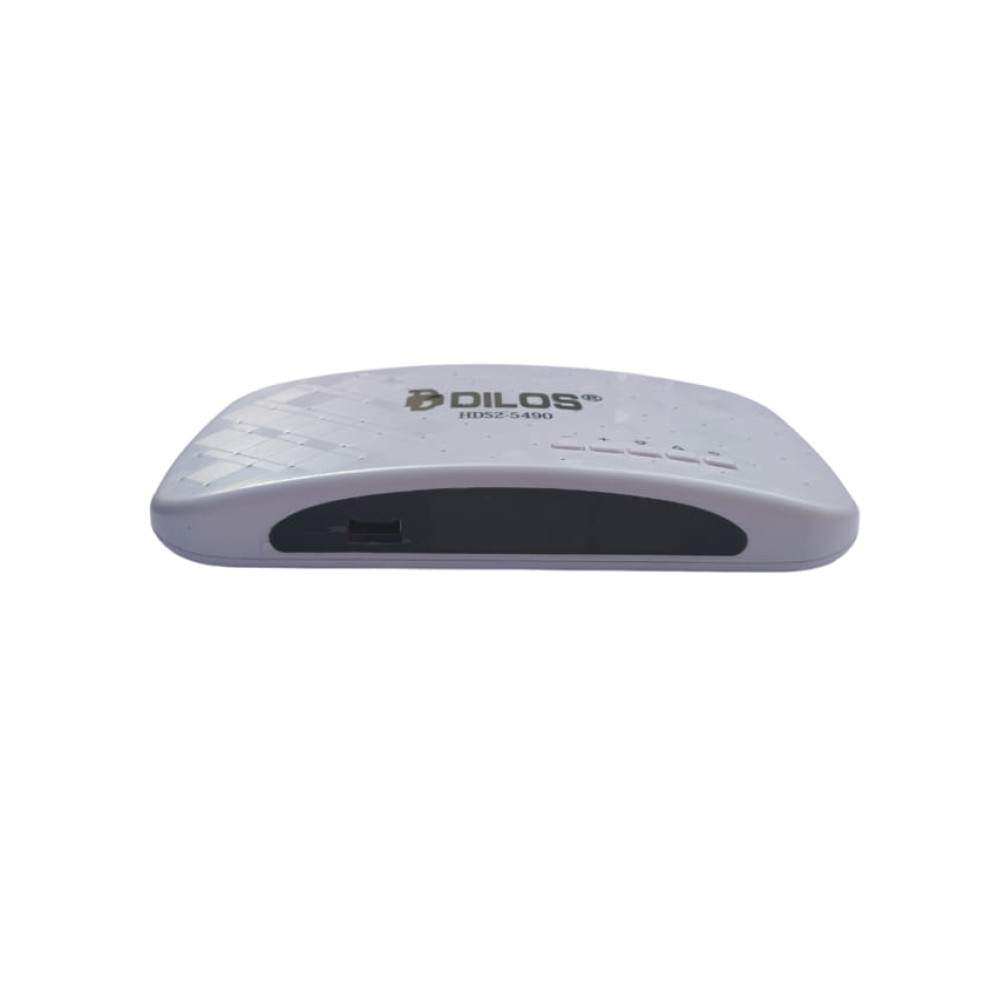

DILOS HDS2-5490 Free-To-Air Full HD DVB-S2 Set-Top Box
The DILOS HDS2-5490 is a Free-To-Air (FTA) set-top box that supports full HD DVB-S2 satellite TV channels. Here are its key specifications:
General Specifications:
1. Model: DILOS HDS2-5490
2. Type: FTA Full HD DVB-S2 Set-Top Box
3. Power Supply: 12V, 1A
4. Power Consumption: ≤ 15W
5. Weight: ≤ 0.5kg
Tuner and Demodulation:
1. Tuner: DVB-S2, QPSK, 8PSK
2. Frequency Range: 950-2150 MHz
3. Demodulation: DVB-S2, DVB-S
Decoding and Video:
1. Decoding: MPEG-4 AVC/H.264, MPEG-2
2. Video Resolution: Up to 1080p (1920x1080)
3. Aspect Ratio: 4:3, 16:9
4. Video Output: HDMI (version 1.4), CVBS (RCA)
Audio:
1. Audio Decoding: MPEG-1 Layer I/II, MPEG-2 Layer I/II,
2. Audio Output: RCA (L/R), S/PDIF (optical and coaxial)

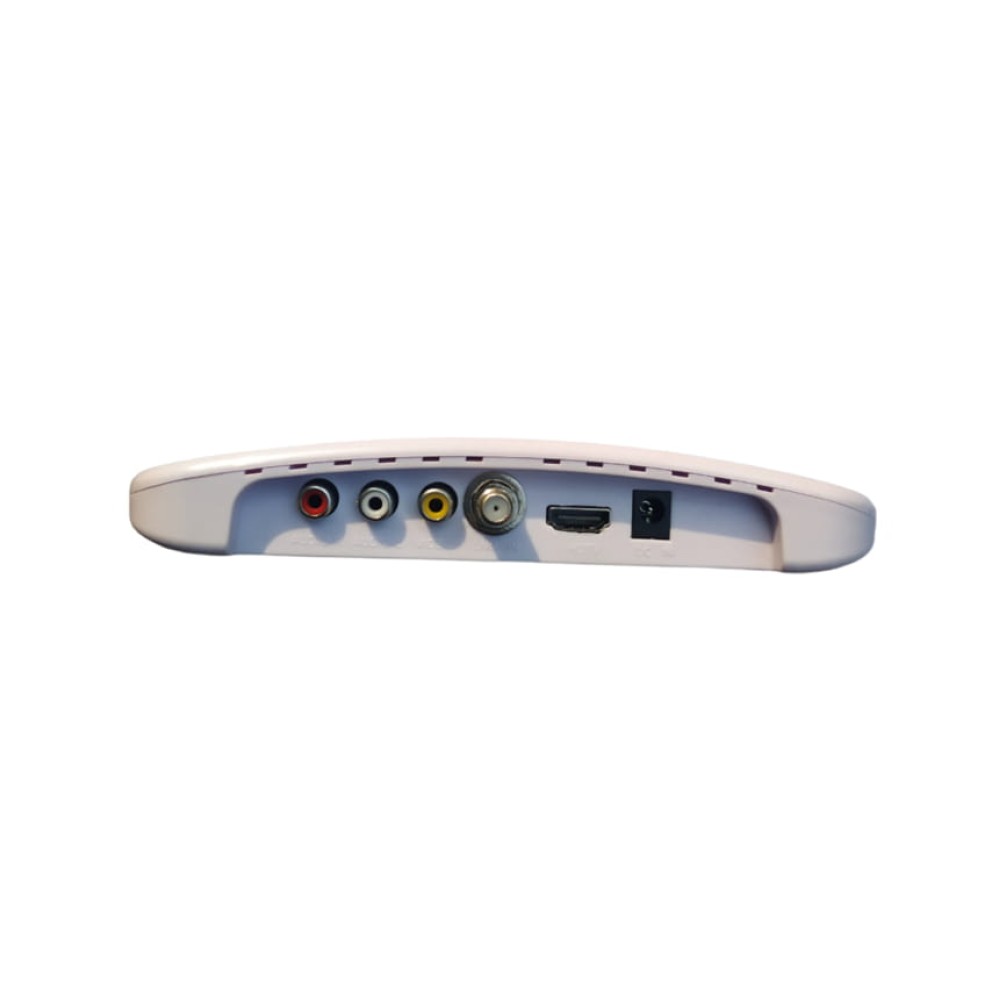

Connectivity:
1. LNB Input: F-type connector
2. RF Output: F-type connector
3. USB: USB 2.0 (for PVR and software updates)
4. HDMI: HDMI 1.4 (for HD video output)
Other Features:
1. FTA Channel Support: Receives unencrypted FTA channels
2. Favorite Channel Edit: Allows users to edit and manage favorite channels
3. Parental Lock: Enables parental control for restricting access to certain channels
4. PVR Ready: Supports recording and playback of TV programs using an external USB storage device
Software and Firmware:
1. Operating System: Linux-based
2. Firmware Upgrade: Available via USB or online update
Supported Free TV Channels -
Specifications:
Chipset: ALi
RAM: 512MB
Firmware: 4MB
Features :
Fully compliant with the DVB-S2 digital TV Reception standards.
Support SDTV MPEG-2/ MPEG-4/ H.264 decoding.
Support HDTV 480i/480p/576i/576p/720p/1080p.
Convenient auto search function.
Intelligent graphical user interface design.
The capacity of storing up to 1000 transponders and 2000 TV channels.
Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK.
Input frequency range 950 MHz to 2150 MHz.
Support DiSEqc1.0 and DiSEqc1.2
Reception for SCPC/MCPC, C/ku Band reception.
Fast channel selection
Favorite channel Edit, parental lock
Variable aspect radio (4:3, 16:9) 4:3 Pan and Scan or Letter Box modes.
Support Multi audio feed
Support USB 2.0 and OTA software upgrade.
Support USB 2.0 Live TV Recording.
Support YouTube app
Support Online Streaming by USB and Online Link file

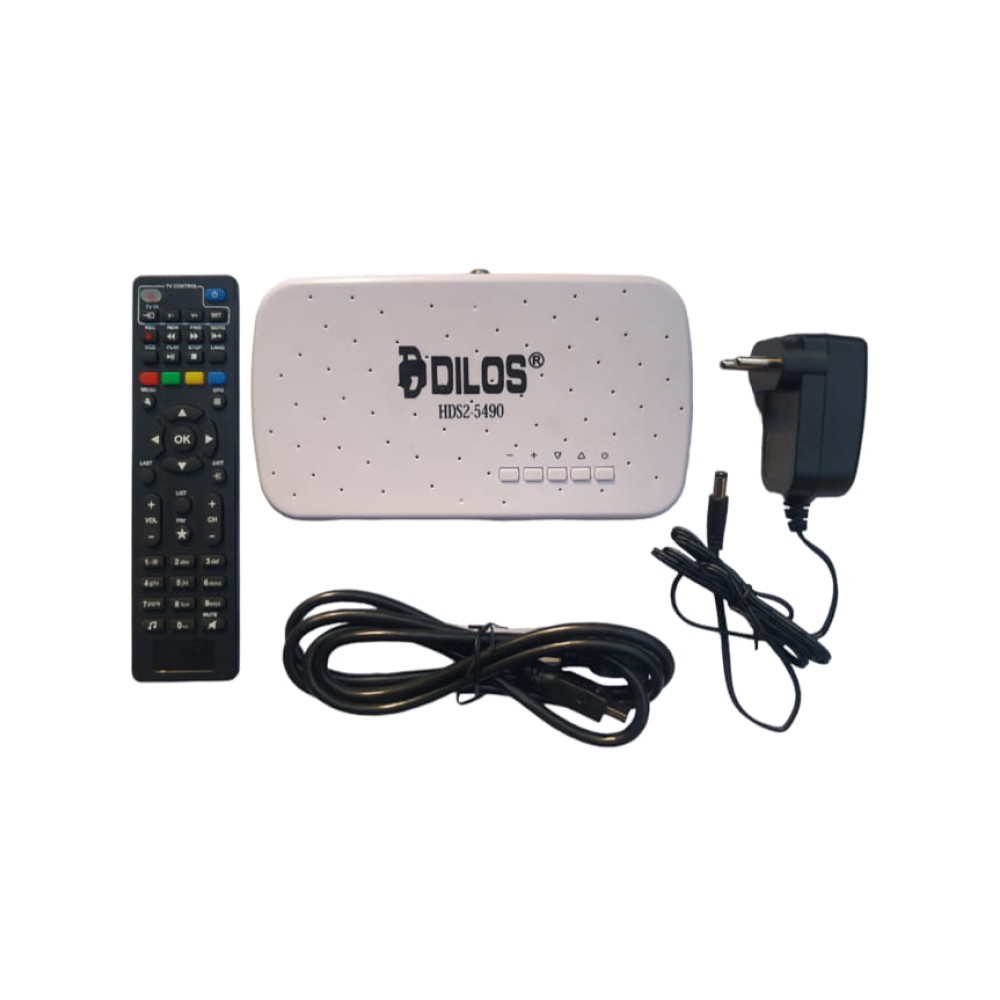

Package included :
1 X Free to air Set-Top Box
1 X Remote
1 X AV Cable
1 X Power Adopter
Note - This Set-Top Box is suitable only for free-to-air broadcasts.
You can Receive TV Signals from Ku-Band like DD Free Dish It is also capable to receive other Ku-Band/ Ku-Band FTA channels from different-2 satellites.
