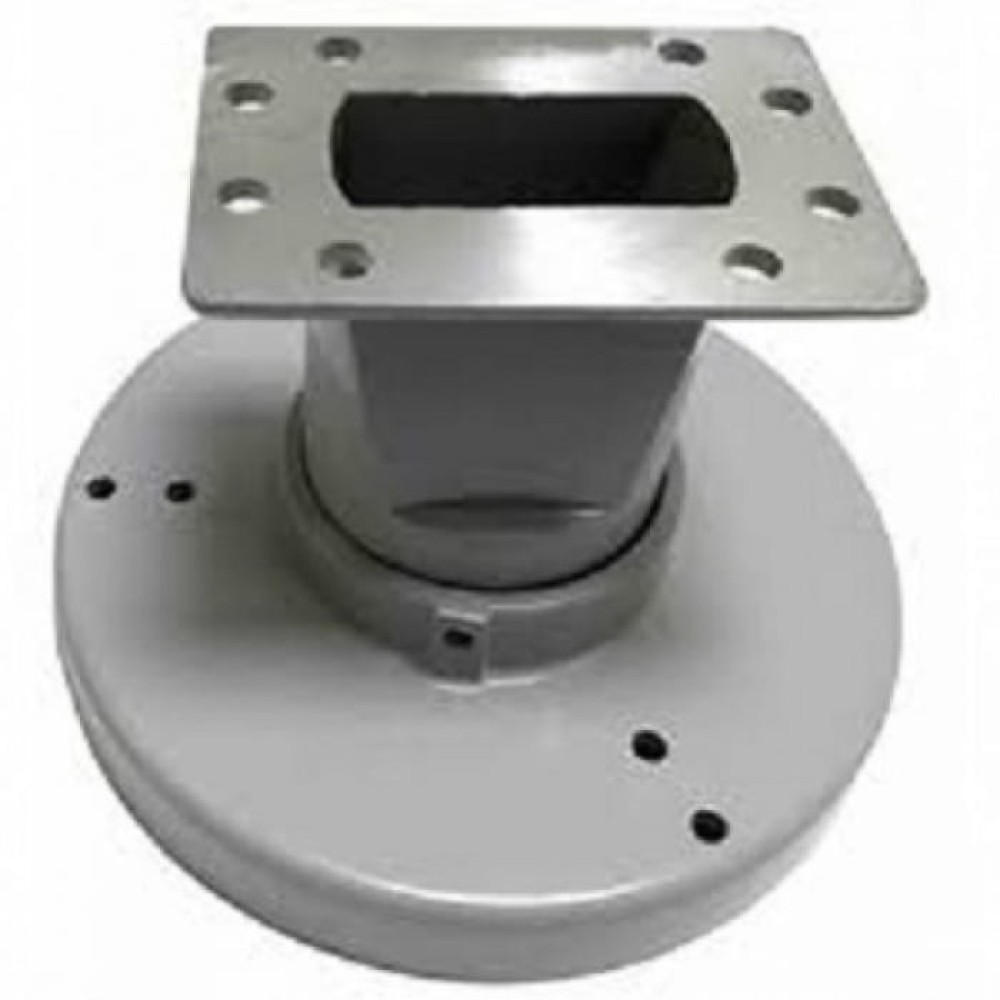

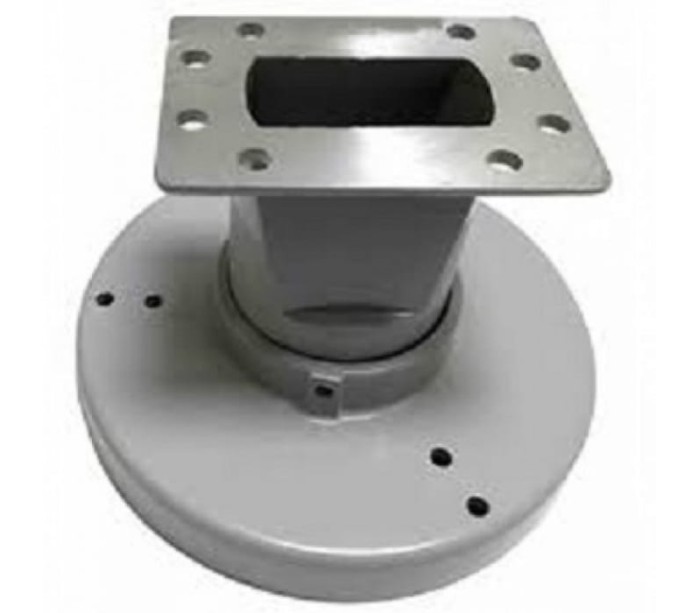

Our C Band Single Polarity Feedhorn can be used for single polarity reception with a Single polarity C Band LNB on prime focus C-Band dish antenna. The feedhorn has a standard C Band flange that will bolt to any standard C Band LNB. The feedhorn can be fitted to dishes that use either tri or quad-feed arms for support of the LNB and feedhorn.
Description
The Feed is a single polarity C Band feedhorn for the reception of linear polarized signals in the 3.7 to 4.2 GHz bandwidth. Superior quality, excellent illumination patterns, and a compact design make the Super Feed the ideal choice in feedhorns for single polarity systems.
- Feed features chip-resistant
- powder paint and cast aluminum construction for
- added protection against the environment. Built-in the
- Chaparral tradition of quality, the Super Feed is the
- an ideal choice for reliable performance.
Specifications
- C-Band Frequency Range 3.7-4.2 GHz
- f/D Range 33 to 45
- Cross Pol. Isolation 25 dB minimum
- Output Ports WR 229 compatible
- Temperature Range -40° C to 60° C
