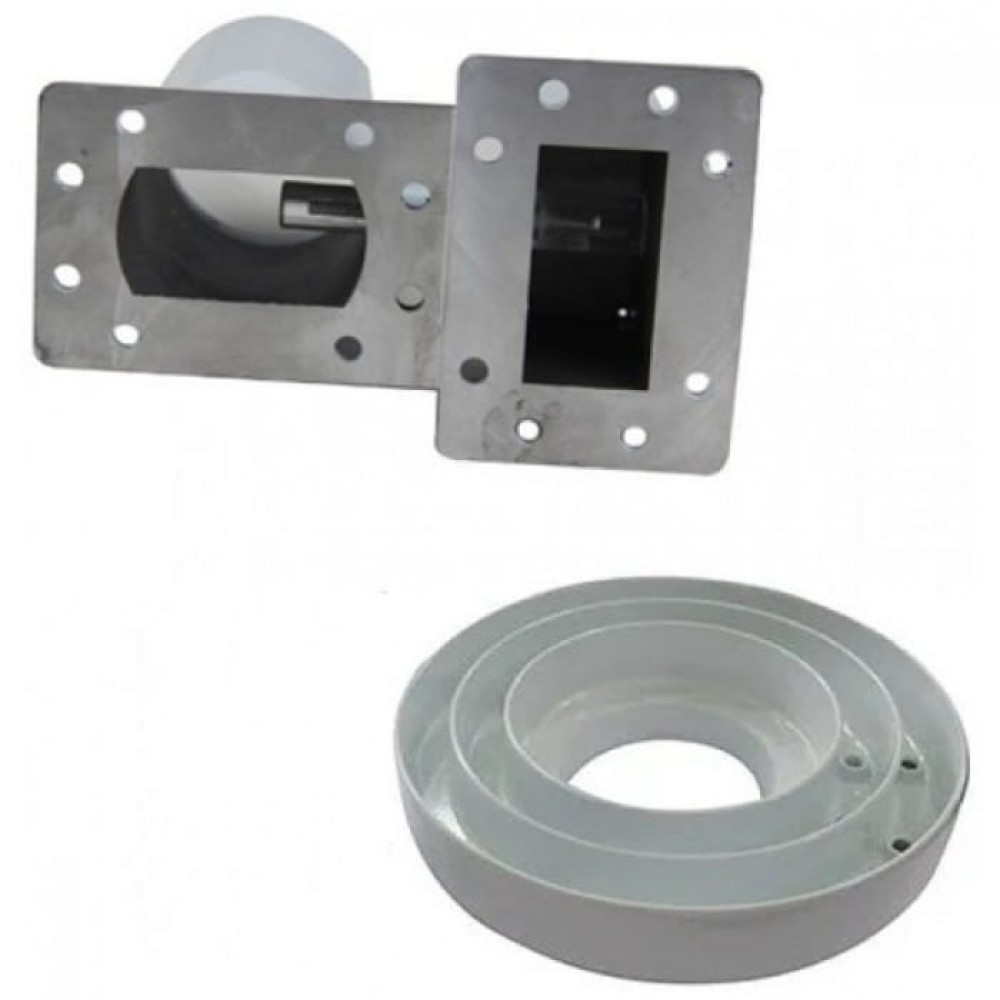

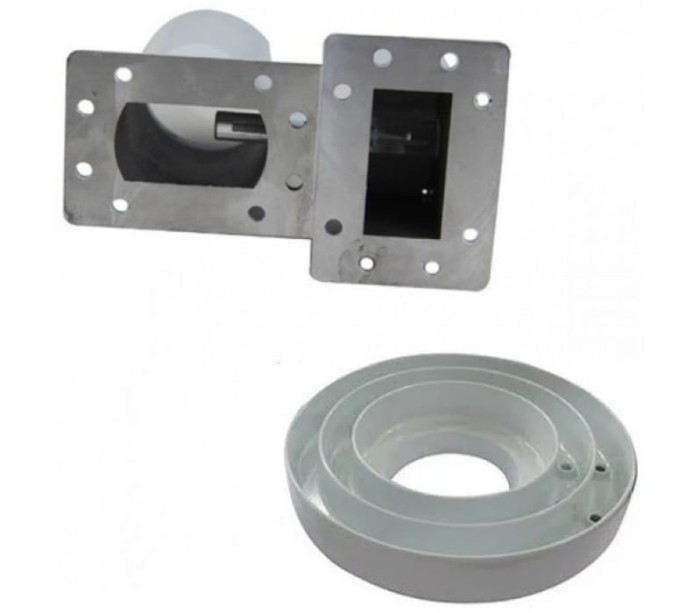

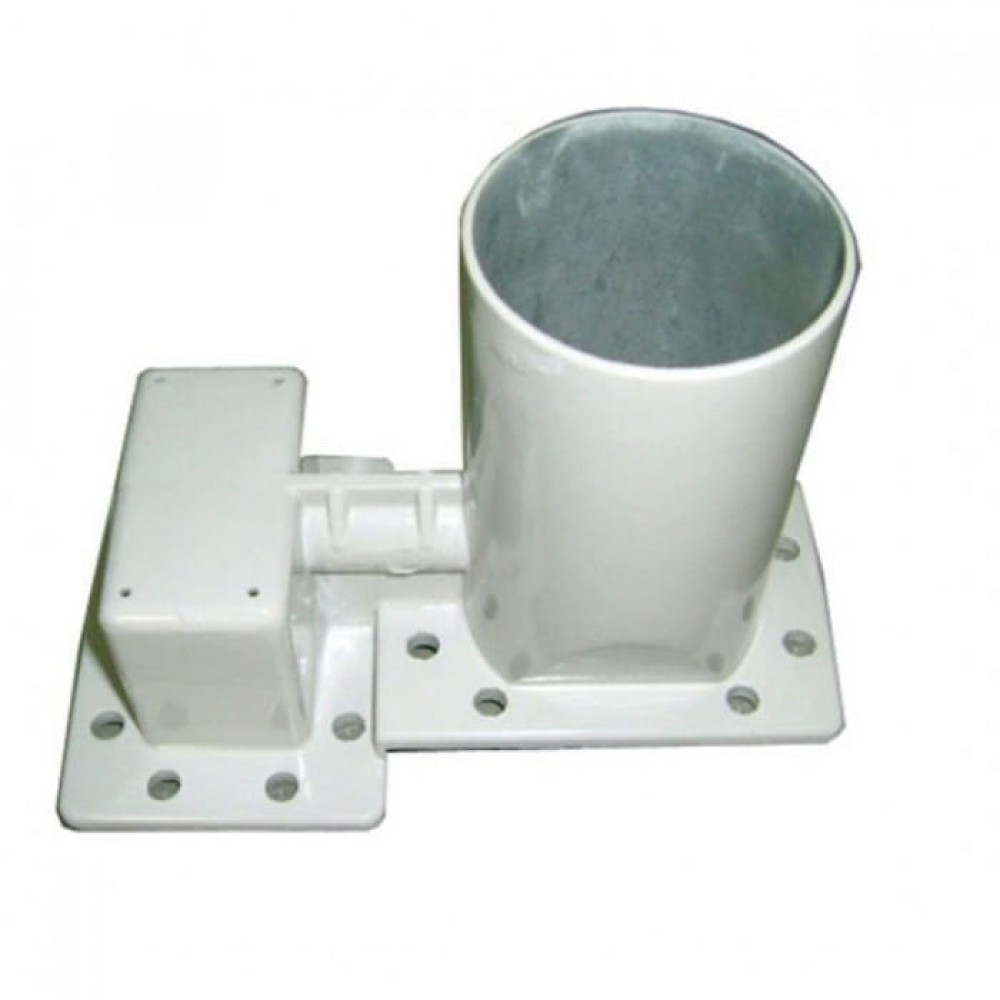

C Band Dual Polarity Feedhorn
Our C Band Dual Polarity Feedhorn can be used for dual or double polarity reception with a dual polarity C Band LNB on prime focus C-Band dish antenna. The feedhorn has a standard C Band flange that will bolt to any standard C Band LNB. The feedhorn can be fitted to dishes that use either tri or quad feed arms for support of the LNB and feedhorn.
Description
The Feed is a dual polarity C Band feedhorn for the reception of linear polarized signals in the 3.7 to 4.2 GHz bandwidth. Superior quality, excellent illumination patterns, and a compact design make the Super Feed the ideal choice in feedhorns for dual polarity systems.
Feed features chip-resistant
powder paint and cast aluminum construction for
added protection against the environment. Built in the
Chaparral tradition of quality, the Super Feed is the
an ideal choice for reliable performance.
Specifications
C-Band Frequency Range 3.7-4.2 GHz
f/D Range 33 to 45
Cross Pol. Isolation 25 dB minimum
Output Ports WR 229 compatible
Temperature Range -40° C to 60° C
You can get TV Signals from C-Band using C-Band Dish Antenna.
