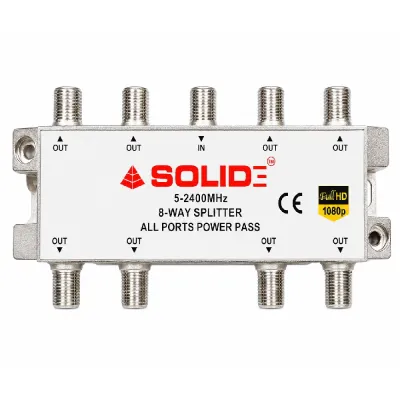

Solid 8-Way Power Pass Splitter
from Tamil Nadu
Shiva
ordered
Solid FS-135 Multi Satellite Ku-Band DTH LNB
from Tamil Nadu
Ramesh
ordered
SOLID HDS2X-7299 HEVC 8bits H.265 Free-To-Air Set-Top Box With Free Wi-Fi Dongle
from Rajasthan
Jit mohan
ordered
SOLID HDS2X-6309 DVB-S2 HD Digital Set Top Box with Inbuilt WiFi | MPEG4 HEVC H.265 Free-to-Air Satellite Receiver
from Orissa
Rajesh
ordered
SOLID HDS2X-7299 HEVC 8bits H.265 Free-To-Air Set-Top Box With Free Wi-Fi Dongle
from Uttar Pradesh
Raja
ordered
SOLID HDS2X-7299 HEVC 8bits H.265 Free-To-Air Set-Top Box With Free Wi-Fi Dongle
from Jharkhand
Amit
ordered
SOLID HDS2X-7299 HEVC 8bits H.265 Free-To-Air Set-Top Box With Free Wi-Fi Dongle
from Haryana
SOLID SF-750 T2+C Combo (BER+MER) dB Meter
Features :
Support DVB-T, DVB-T2 and DVB-C function
Support Automatic channel scanning
Build highlight LED
Show the signal quality of the nixie tube
Built-in buzzer
Support to check the power cable automatically
Support to reset to defaults
The unit of signal power support dBm, dBuV
Use USB 2.0 for software upgrade and data backup.
Specifications of DVB-T2 signals -
Frequency range - 170 to 230MHz (VHF Band)
- 470 to 862Mhz (UHF Band)
Impedance - 75ohm
Signal level - -78 to -10dBm
Demodulation Scheme - DVB-T / QPSK / 15QAM / 64QAM / 256AQM
- DVB-T2 / 16QAM / 64QAM / 256QAM
Brandwidth - 5MHz / 6MHz / 7MHz / 8Mhz
Demolution type - DVB-T and DVB-T2
Specifications of DVB-C signals -
Frequency - 47 to 862 MHz
Impedance - 75ohm
Signal level - -78 to -10dBm
Symbol Rate - 1.4M to 7.5M baud
Demodulation Scheme - 16QAM / 32QAM / 64QAM / 128QAM / 256QAM
Demolution type - DVB-C
Brandwidth - 6MHz / 8Mhz
