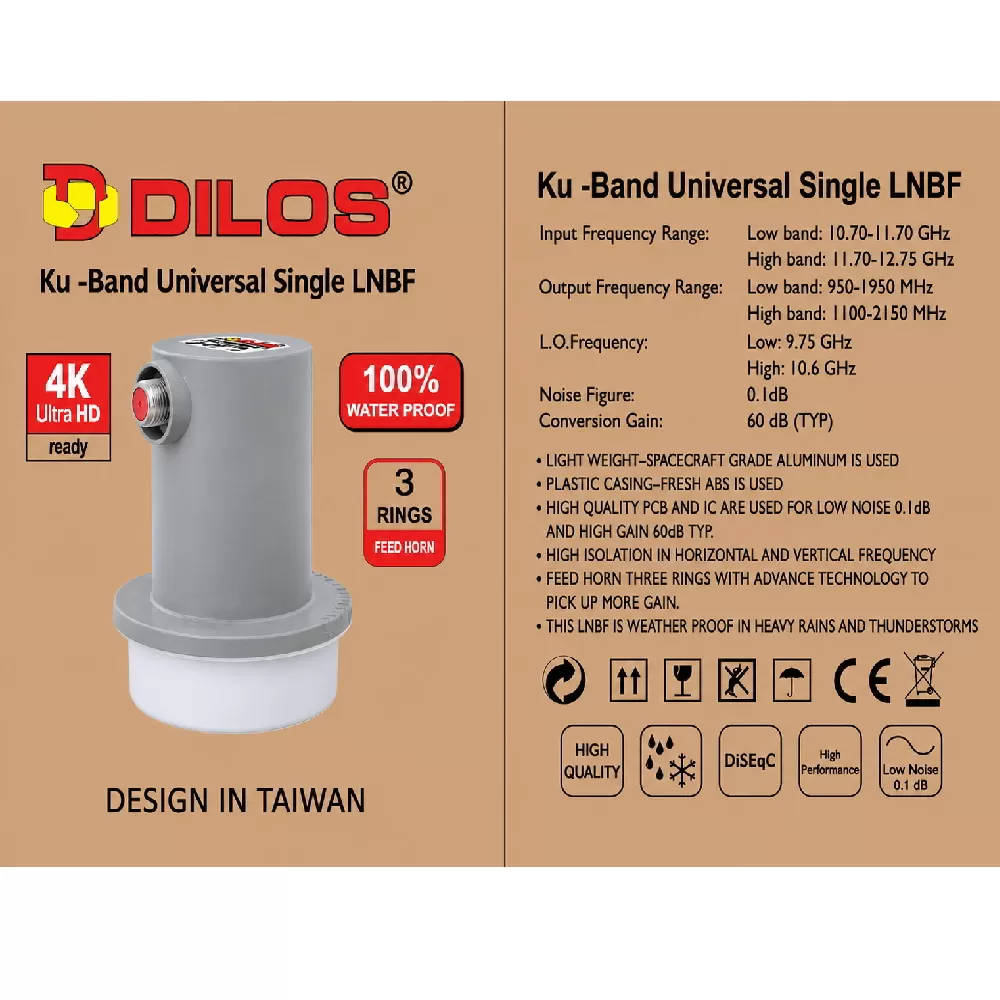

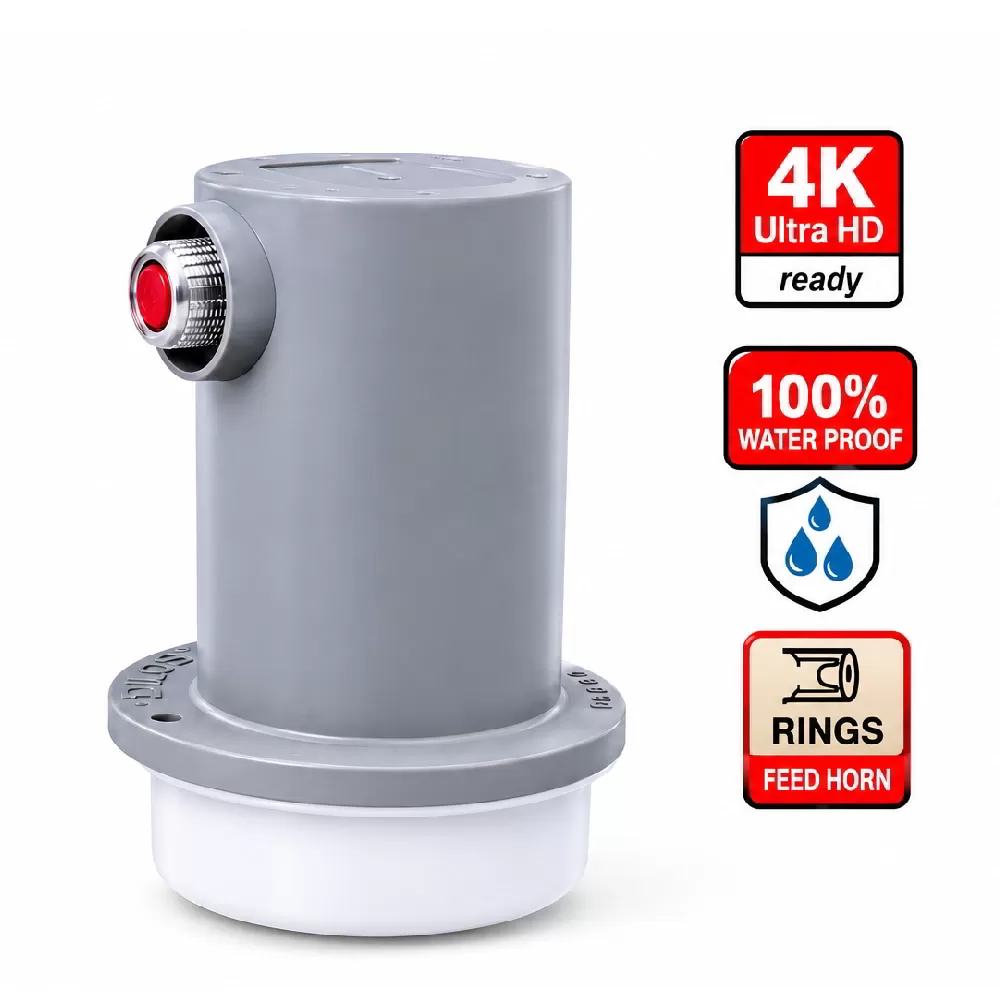

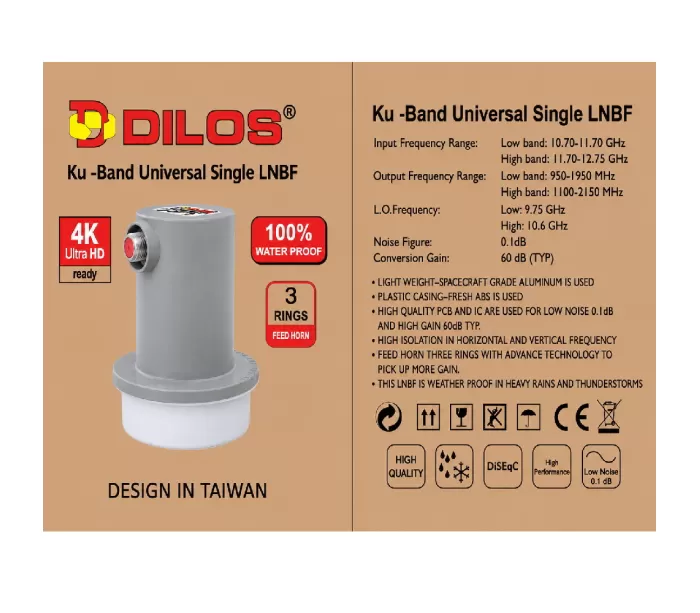

DILOS Ku-Band Universal Single LNBF
The DILOS Ku-Band Universal Single LNBF is made for clear and stable satellite TV reception. It supports HD and Ultra HD (4K) channels with low signal noise and high performance. The strong weatherproof design helps the LNBF work well in rain, wind, and other outdoor conditions.
This LNBF uses a 3-ring feed horn to improve signal quality and provide better reception. It is built with a lightweight aluminum body and durable ABS plastic for long-lasting use. It is easy to install and works with most Ku-band satellite dishes.
Key Features :
- Universal Single Ku-Band LNBF
- Supports HD, Full HD, and 4K Ultra HD channels
- Low Noise Figure: 0.1 dB
- High Conversion Gain: 60 dB (Typical)
- 3-Ring Feed Horn for better signal reception
- Waterproof and weather-resistant design
- Lightweight aluminum body with strong ABS housing
- Suitable for home satellite TV systems
- Easy installation and reliable performance
Technical Specifications :
- Input Frequency: 10.70–12.75 GHz
- Output Frequency: 950–2150 MHz
- Local Oscillator Frequency: 9.75 / 10.6 GHz
- Noise Figure: 0.1 dB
- Conversion Gain: 60 dB (Typical)
Other Information :
Light weight-spacecraft grade aluminum us used
Plastic casing-fresh abs used
High quality PCB and IC are used for low noise 0.1dB and high gain 60dB typ.
High isolation in horizontal and vertical frequency.
Freed horn there rings with advance technology to pick up more gain
This LNB is weather proof in heavy rains and thunderstorms.
Package Includes
- 1 × DILOS Ku-Band Universal Single LNBF
This LNBF is a good choice for users who want strong signal quality, clear picture, and reliable satellite TV performance. It is suitable for both residential and commercial satellite installations.
