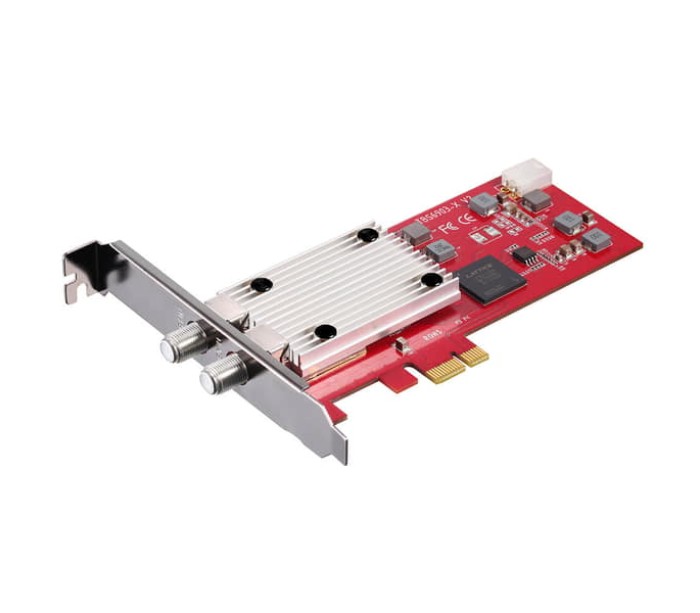

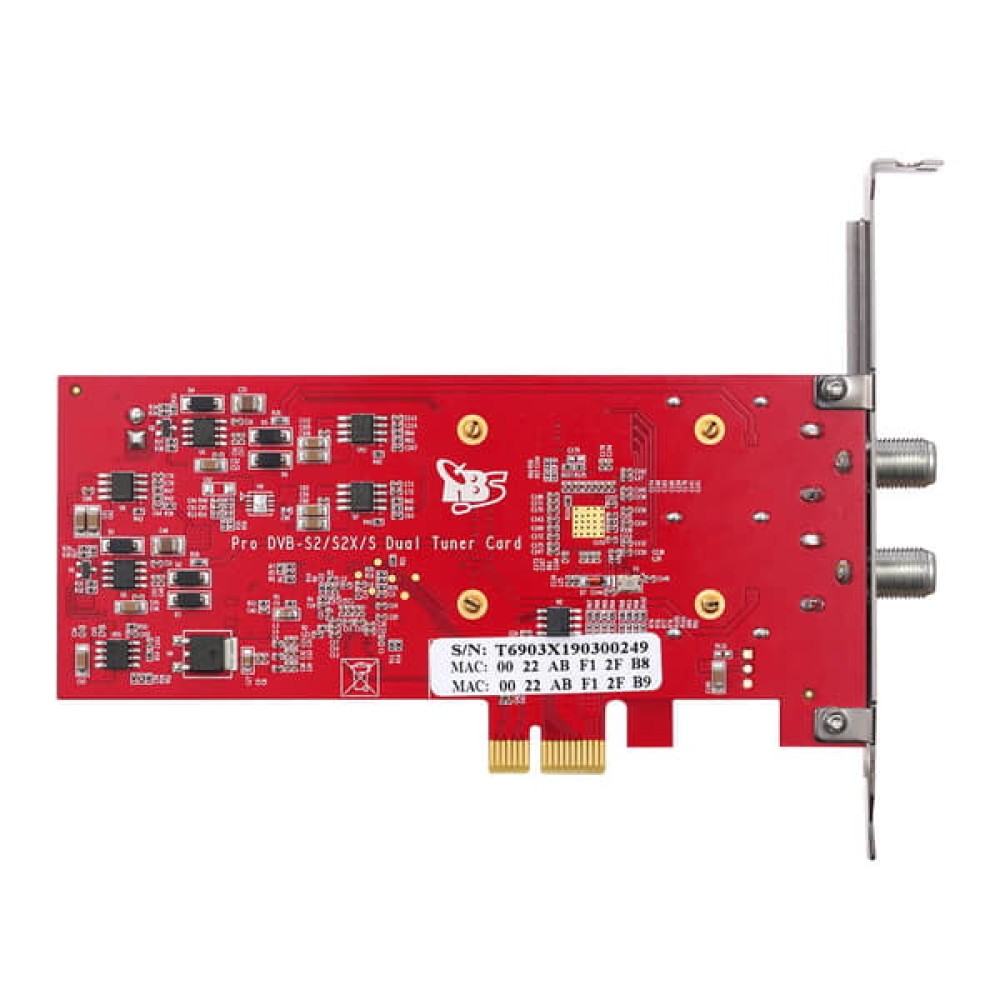

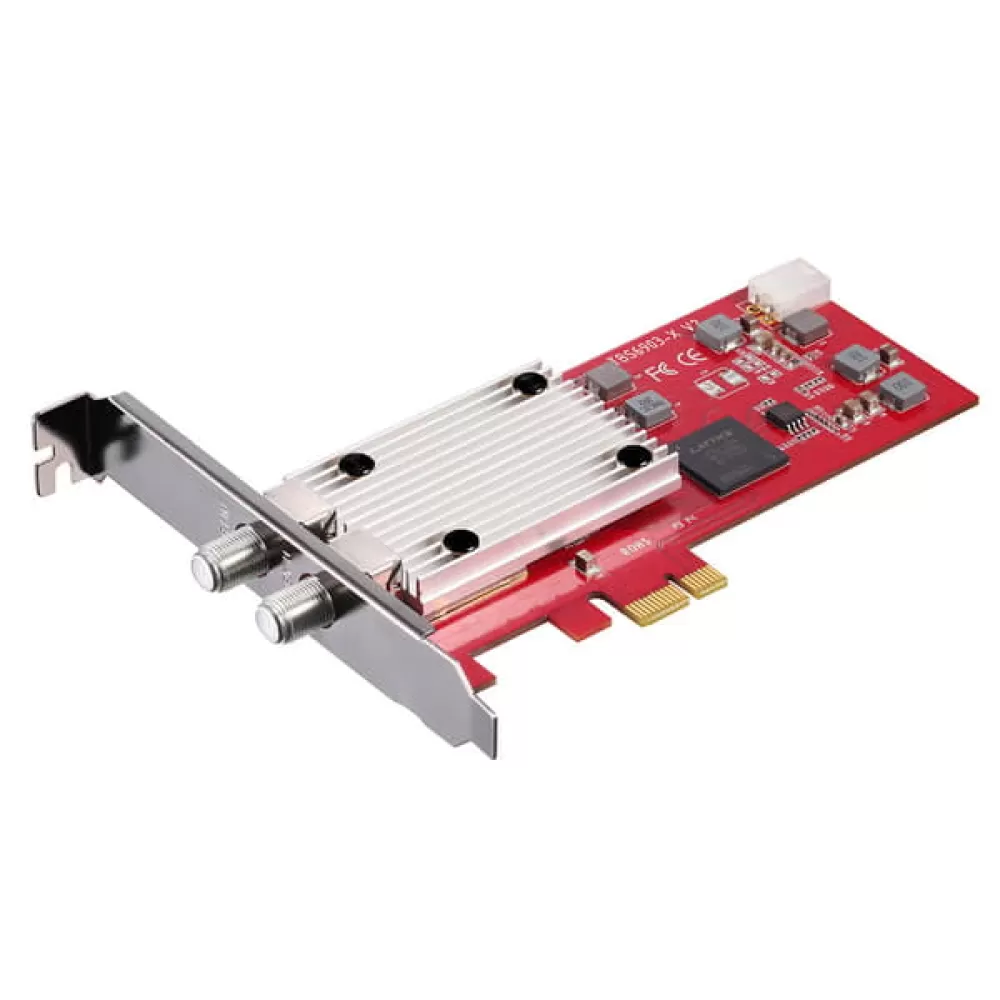

TBS6903-X Professional S2X Dual Tuner PCIe Card
TBS6903-X is a Professional level digital satellite TV Tuner card with a PCI Express interface. TBS6903-X not only supports normal S2X/S2/S QPSK, 8PSK which is supported by normal satellite receivers but also supports CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can't support. With the use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channels from one satellite transponder while recording channels from different satellite transponders of another tuner at the same time.
Main Features:
S2 dual tuner
Watch & record satellite TV/ radio programs on a PC
CCM, VCM, ACM, and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Applications:
Data Receiving
Media monitoring
Specification:
| S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK | 2/3, 32/45 | |
| 64APSK | 32/45/L, 11/15, R/5E, 7/9 | |
| R/60, 4/5, R/62, 5/6 | ||
| 128APSK | 3/4, 7/9, 29/45/L, 2/3/L | |
| 256APSK | 31/45/L, 32/45, 11/15/L, 3/4 | |
| VCM, ACM, CCM | Yes | |
| Power consumption | ||
| Input/ Power: | 12V/7~15W | |
| temperature | 0° ~ 60° | |
| System Requirements | Windows XP / Vista/ 7/8/10, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Package Contents | 1 * TBS6903-X | |
| 1 * Power cable | ||
Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)
| Msymb/s | Demod |
| QPSK | 180 |
| 8PSK | 120 |
| 16APSK | 90 |
| 32APSK | 72 |
| 64APSK | 60 |
| 128APSK | 51,42 |
| 256APSK | 45 |
