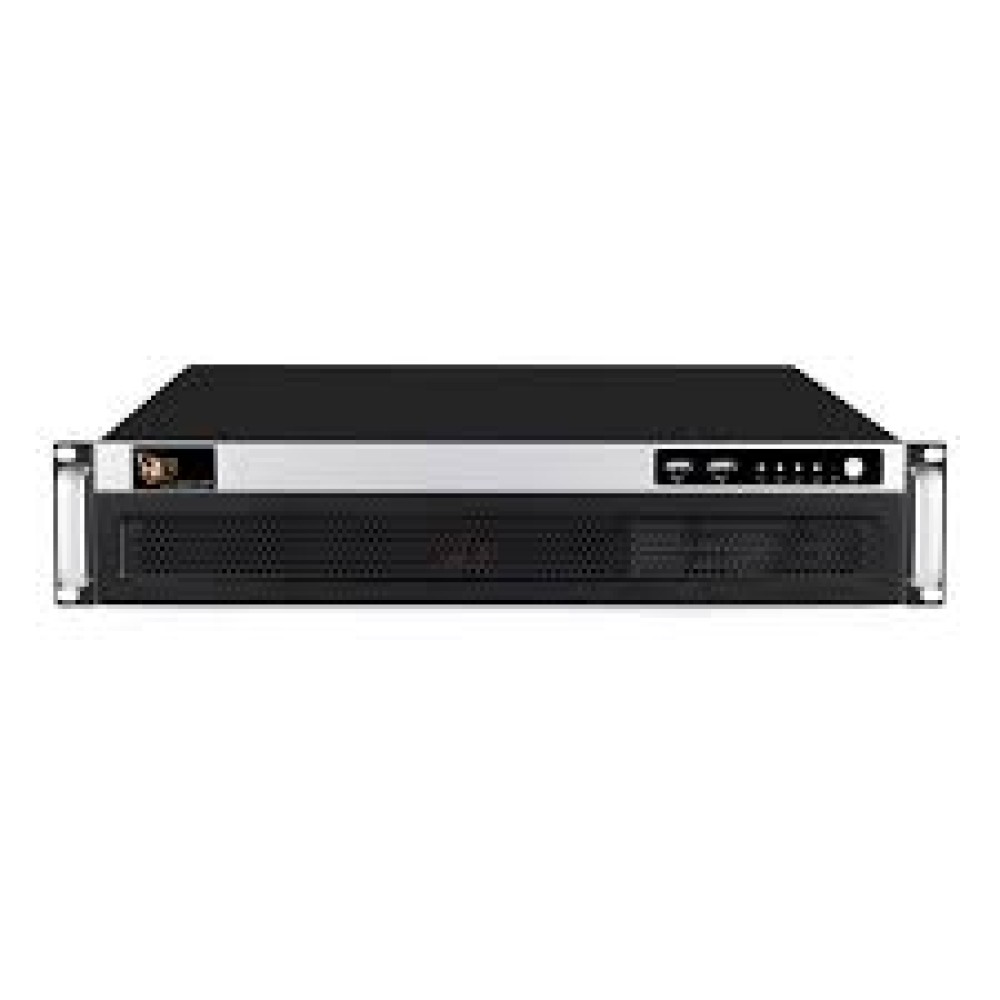

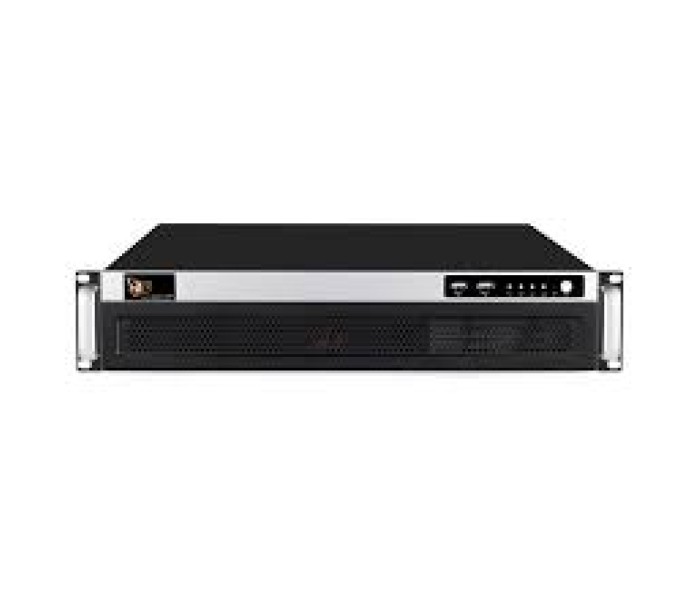

SOLID SDTBS8520 Multiple inputs H.264/H.265 IPTV Transcoder - Stream up to 50 IPTV channels with a single device.
SOLID SDTBS8520 multiple inputs H.264/H.265 IPTV transcoder is SOLID latest product, which is designed for our SOLID TV tuner card customers. It’s a high-performance video server that features in high integration and reliable hardware transcoding server. Because the original data rate from DVB channels is very high, send it to internet directly will cost a lot of bandwidth, then you need both receiving server and transcode server to lowdown the bit rate, this is not convenient and will greatly increase the cost of the solution.

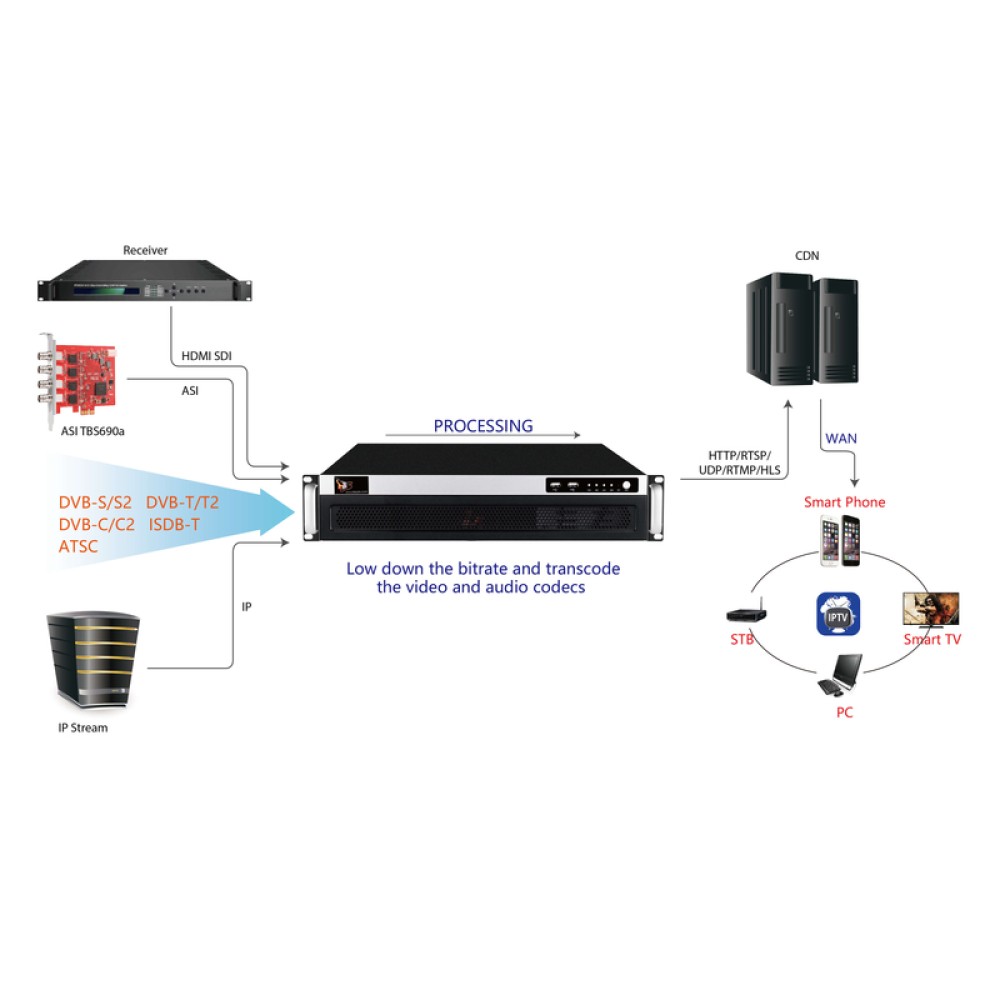

Now with SOLID SDTBS8520 real-time transcoder server you can Receiving and Transcoding at the same time, this is a cost-effective solution for OTT IPTV providers. With Two Giga Ethernet Ports, it can be configured to transcode up to 80SD or 30 Full HD streams simultaneously, and equipped with 2 TBS Tuner/Capture PCI-e card inputs(up to 16 tuners) to receive channels directly from satellite or ASI / IP inputs to receive digital channels.
It can be easily managed through NMS system, and has become an ideal solution for operator to provide high quality video transcoding. TBS8520 is a real multi-channel/formal transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks.
Key Features:
- 1.Multiple recourse inputs: DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI and IP streams.
- 2.Filtering streams you can filter some PIDs which you do not want to use
- 3.Scrambling the channels protect your stream
- 4.Descrambling the encrypted channels
- 5.Support subtitle burn to the video or by pass to TS stream.
- 6.Support ABR HLS output, You can set up to 6 profile with different quality and resolution
- 7.H.265 and H.264 Encoding support
- 8.Support Multicast/IGMP output
- 9.Support SAP
- 10.Support HTTP(MPEG-TS)
- 11.Support RTMP push to CDN server
- 12.Best web management for DVB to IP
- 13.Output m3u8 playlist for all chanels
- 14.Demultiplexing - preparing channels for IP network
- 15.Multiplexing - preparing streams for TBS DVB modulators such as TBS DVB-C modulator
Specifications:
| Size | 2U |
| Input interface | 2xRJ45, 1000M Base-T2 |
| 2xPCI-E slot | |
| Input | |
| Input Signal | DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI |
| Input Net Stream | UDP, RTP, HTTP, HLS, Media Files |
| Video codecs | MPEG-2, AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576 |
| Audio codecs | AAC, MP2, MP3, AC-3 |
| Output | |
| Output types | UDP, RTMP, HTTP, HLS(ABR), Media Files |
| Video codecs | MPEG-2, AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576 |
| Audio codecs | AAC, MP3 |
| Rate Control | CBR/VBR |
| Transcoder | up to 80 SD / 30 HD1080 AVC(H.264) streams up to 50 SD / 26 HD1080 HEVC(H.265) streams |
| Power Consumption | 65W ~ 250W |
Application:
1.OTT IPTV providers (Internet TV).
