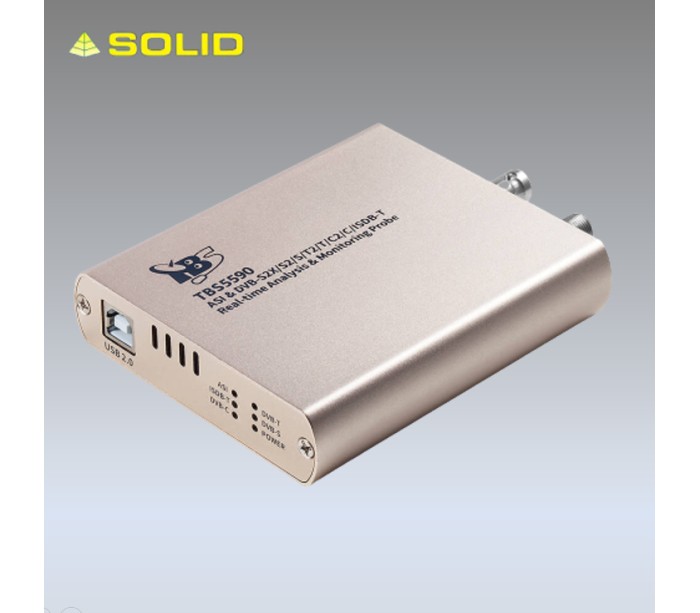

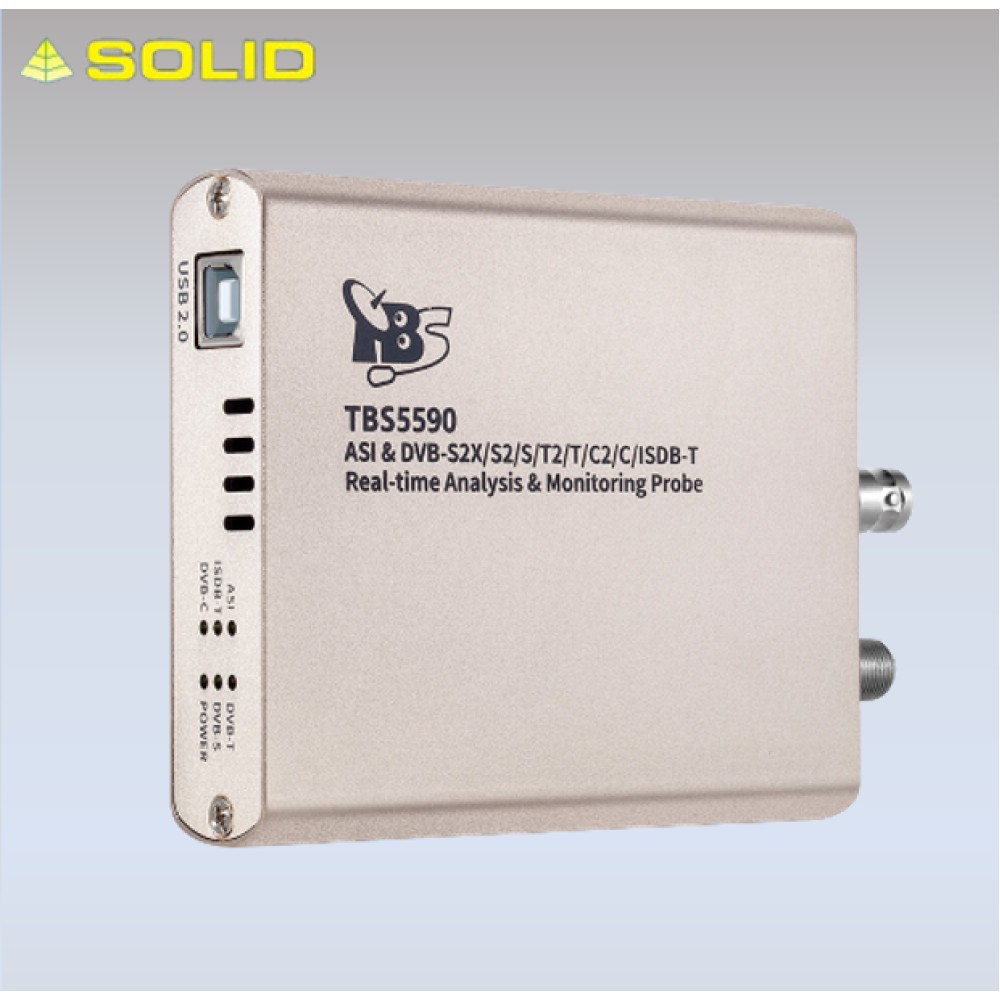

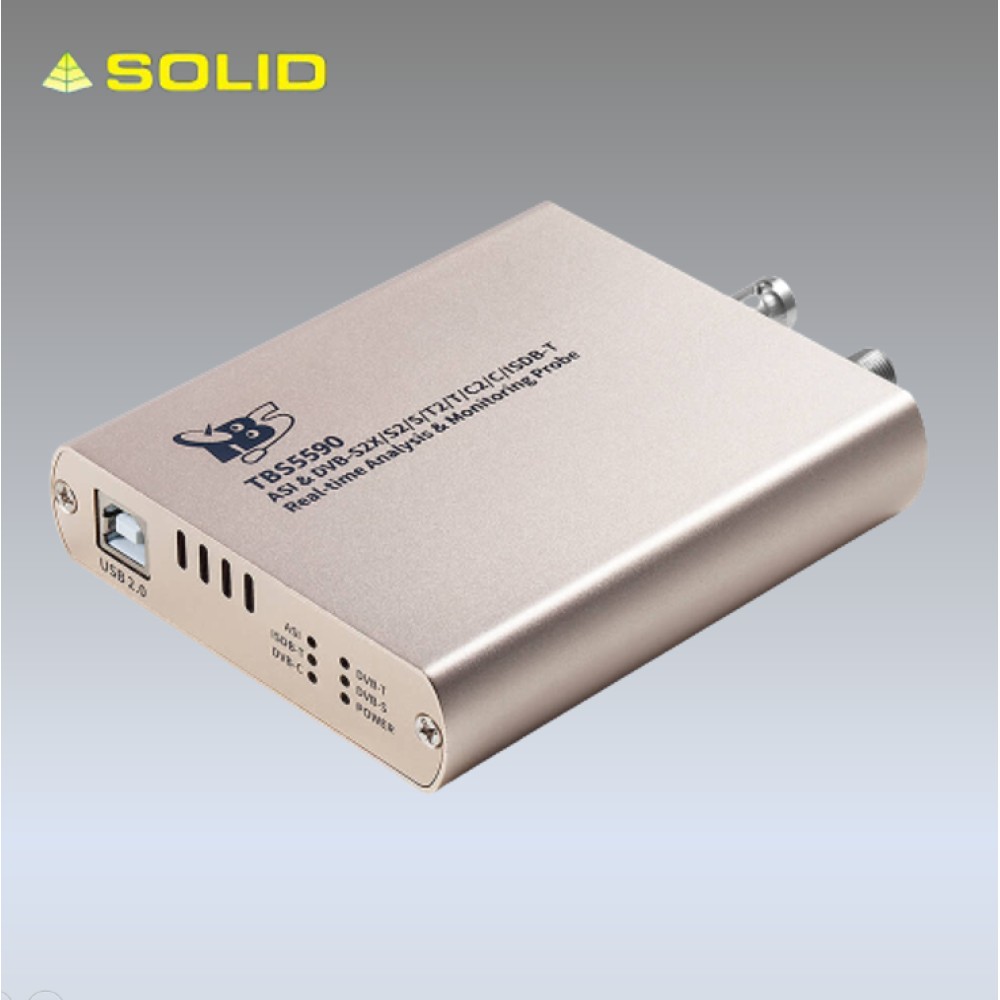

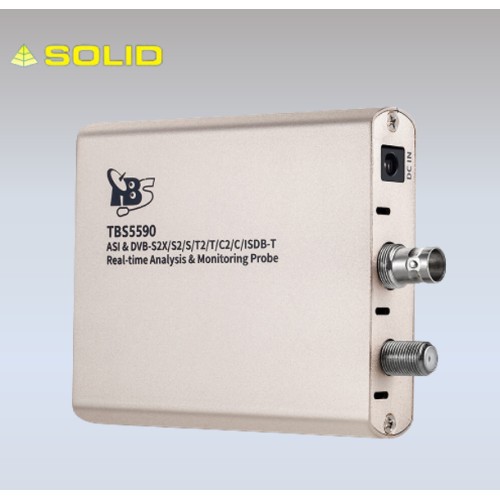

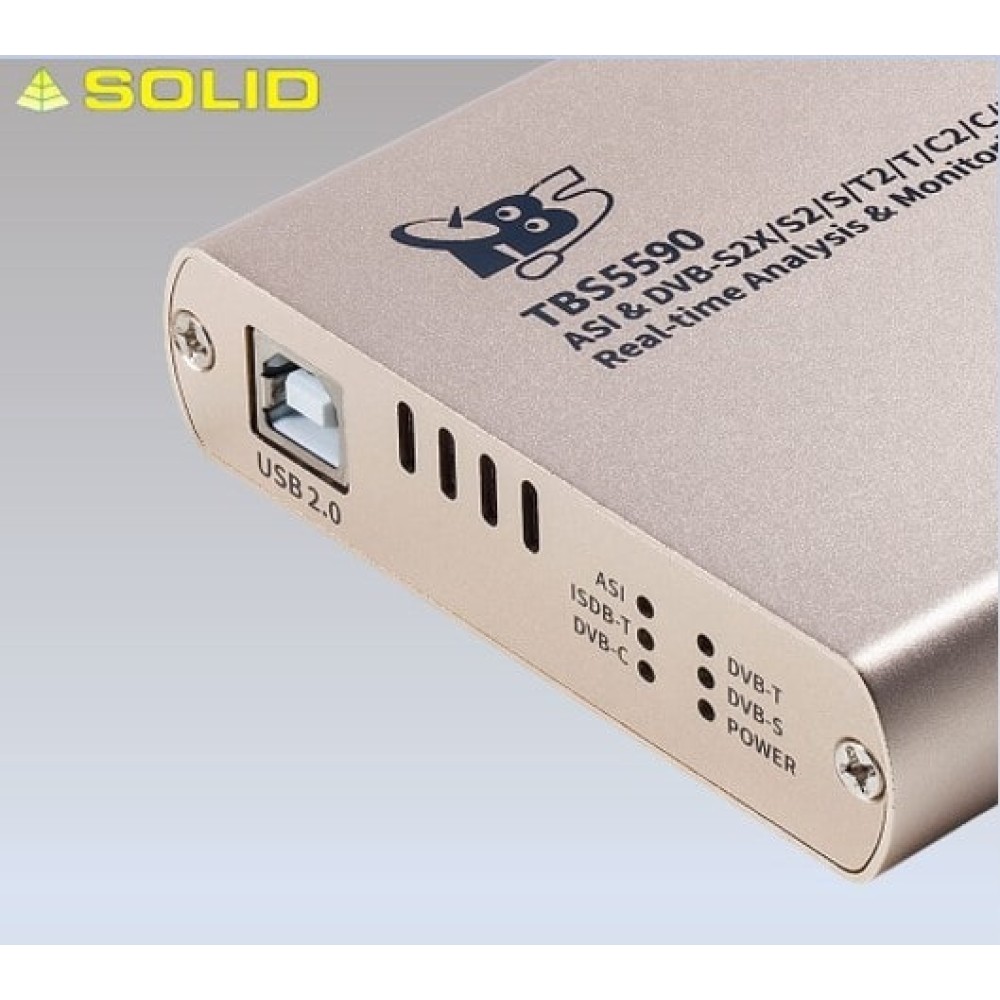

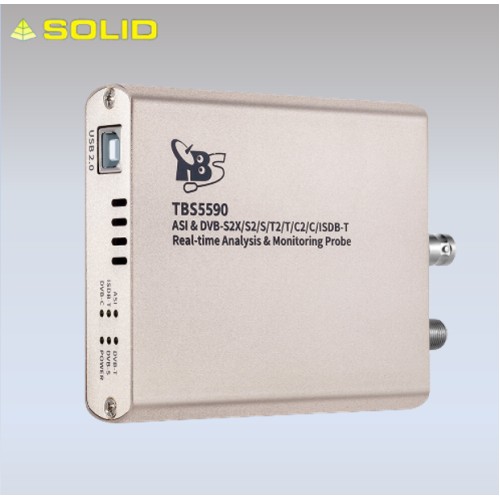

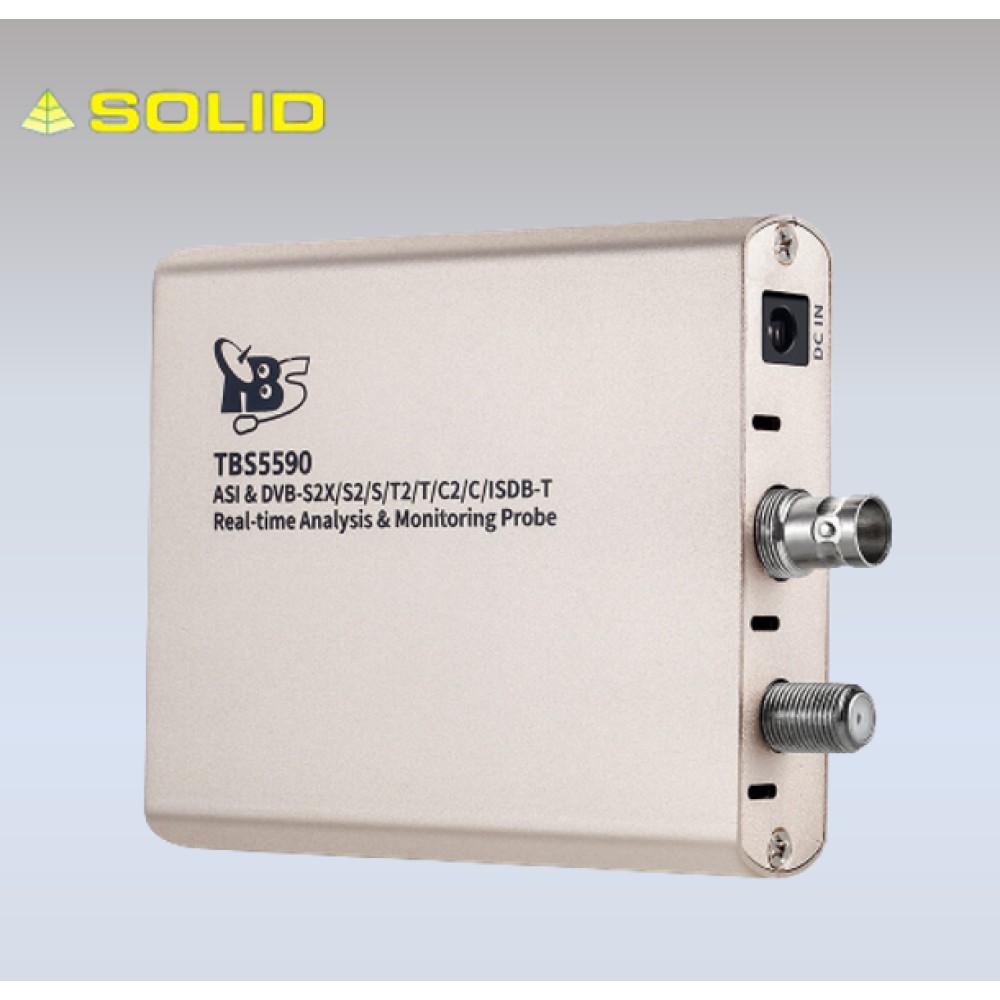

SOLID TBS5590 Multi-standard Real-time Analysis & Monitoring Probe

TBS5590 is a DVB multi-standard external TV tuner box with USB2.0 interface. It is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T. Through the USB interface, you can easily plug the TBS5590 Universal TV Tuner box to your desktop or laptop PC for watching or recording different standards digital TV channels.

Features:

o DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T, Multi-standard digital TV supported.

o Universal USB TV tuner Box for watching or recording live TV channels.

o Support Real-time TV stream Analysis & Monitoring

o Support Bitrate measurement

o Support elementary stream information analyzing.

Specification:

Digital TV Standards:

ISDBT

COFDM demodulator and FEC decoding

Support 3 layers decoding

TMCC decoding

Support differential demodulation

AC1 and AC2 decoding

DVBT2 and T2-Lite

Receiving channel: VHF band, UHF band

Bandwidth: 1.7, 5, 6, 7, 8MHz

FEC: QPSK, 16QAM, 64QAM.256QAM

FFT mode: 1K, 2K, 4K, 8K, 16K, 32K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

DVBC2

COFDM Demodulator(16_QAM to 4096_QAM)

FEC(LDPC/BCH) decoder

Bandwidth: 6MHz, 7MHz, 8MHz

DVBC and ITU-T j.83ANNEX B

QAM demodulator

FEC decoder

1 to 7.2MSymbol/s

DVB-S/DVBS2/DVBS2X

Symbol rates: 1-45Msps

FEC:

DVB-S/S2

QPSK:	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK:	3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK:	2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK:	3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2x

QPSK:	13/45, 9/20, 11/20
2_4_2_APSK:	100/180, 104/180
8PSK:	23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK:	26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK:	2/3
4_8_4_16_APSK:	128/180, 132/180, 140/180

DVB-ASI

Up to 200Mbps

Power consumption

Input/power

12V/2A

Temperature

0~60℃

System Requirements

Windows XP / Vista/ 7/8/10, Linux

Available USB 2.0 slot

Digital TV signal ISDB-T/DVB-T2/C2/S2X/S2/T/C/S, and DVB-ASI

Dimension:

TV tuner box size

103*88*22mm

Net weight

260g

Gift Box Size

210*174*55mm

Gross Weight

800g

Package Contents

1x TBS5590

1X USB Cable

DC 12V Adapter
