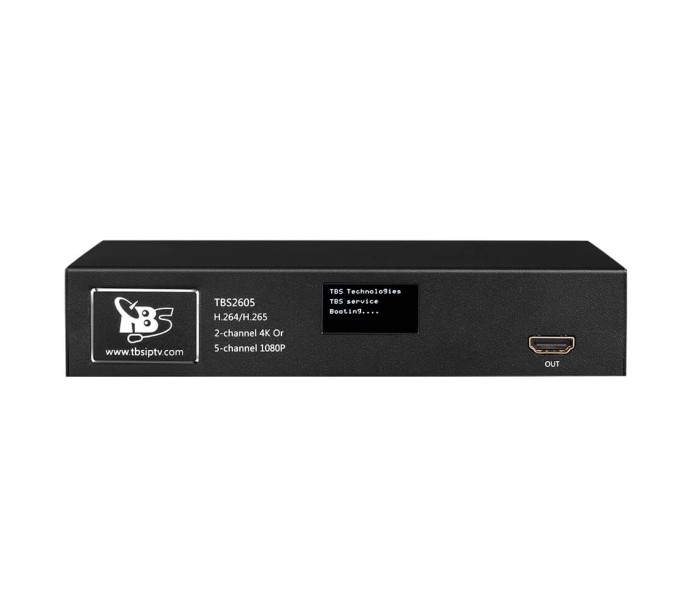

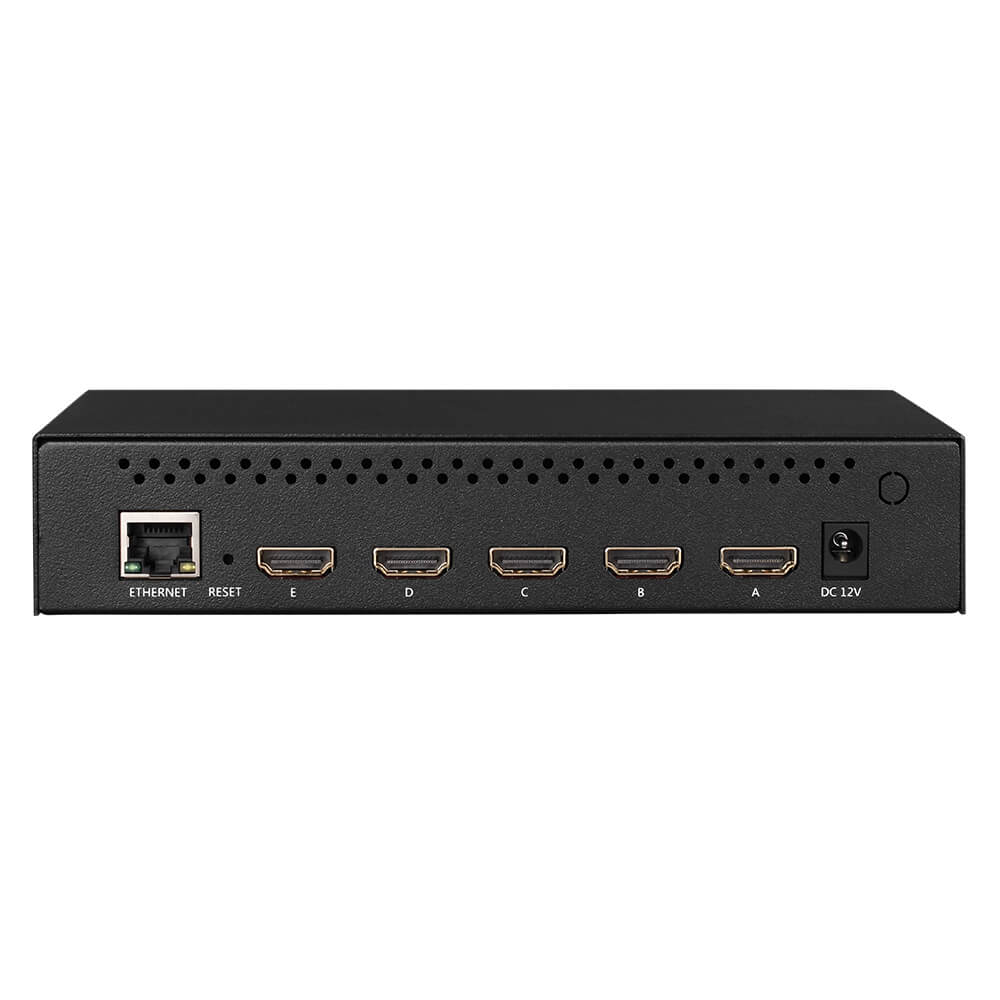

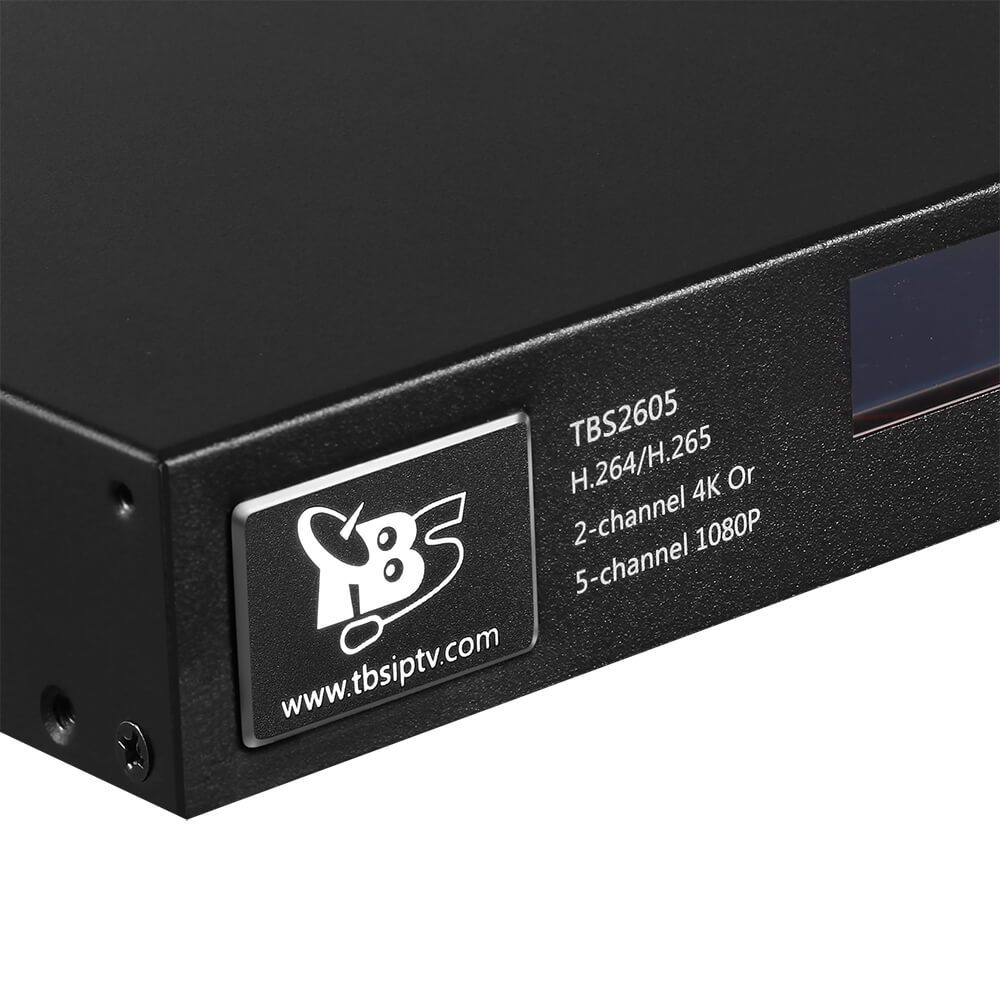

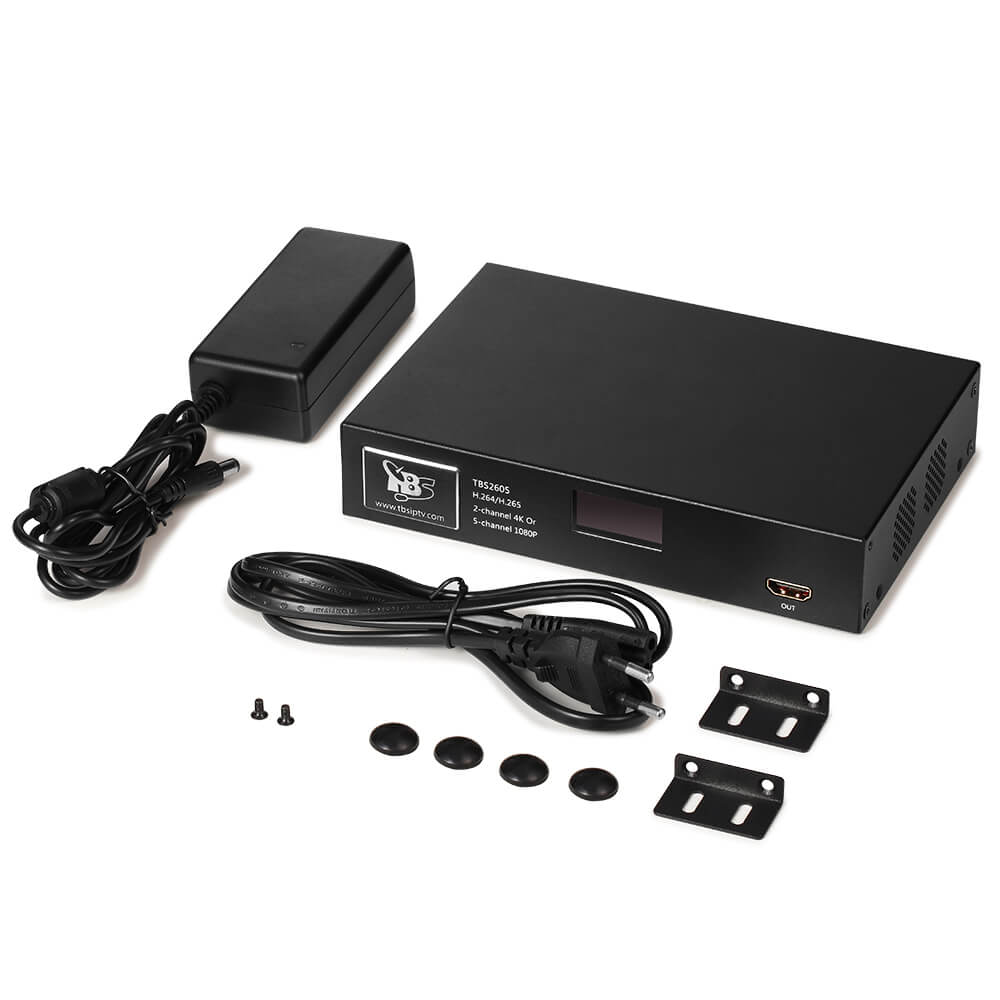

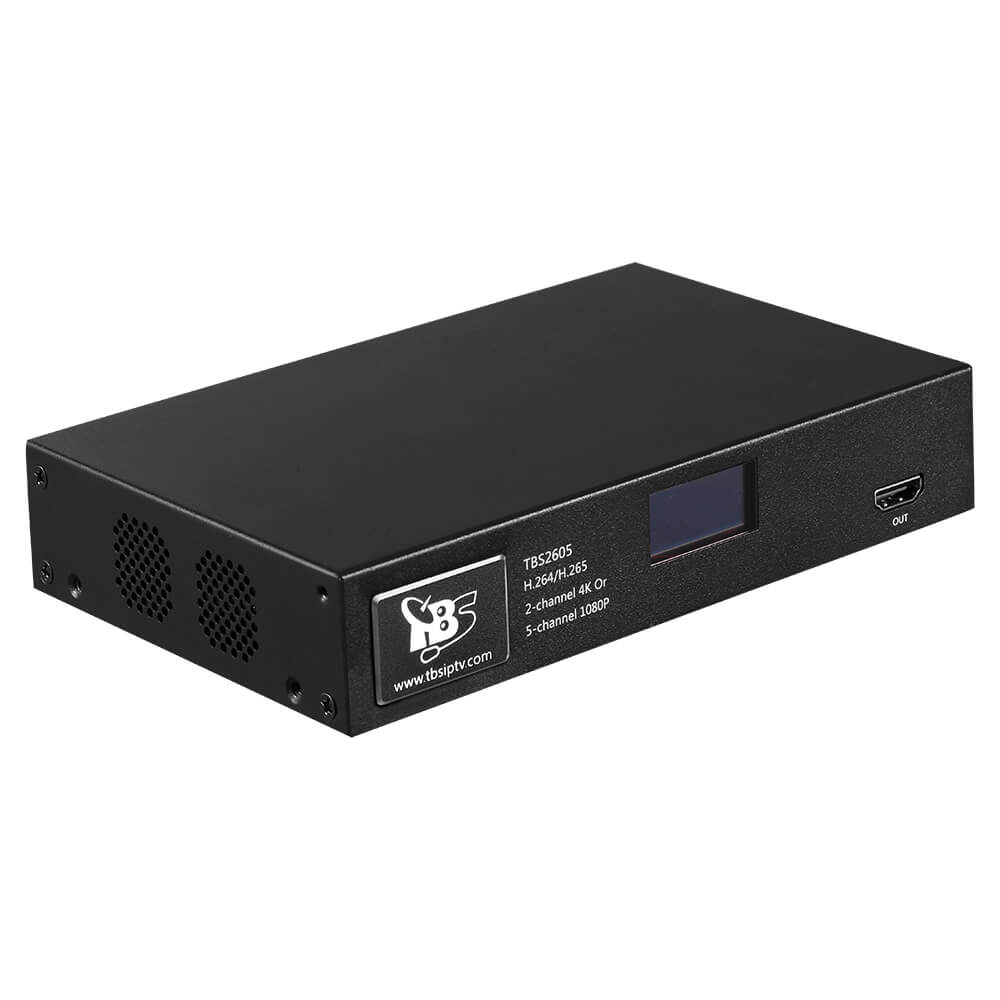

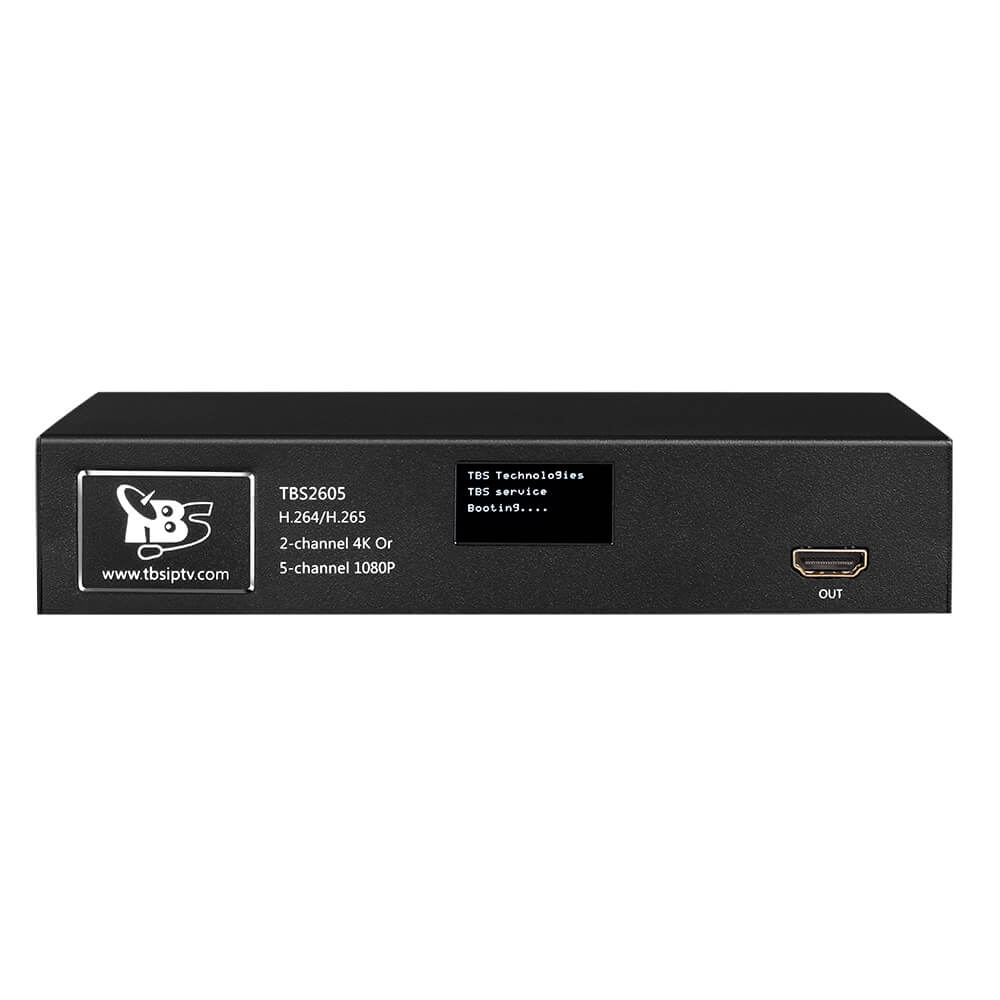

TBS2605 2 channels 4K/5 Channels 1080P 60hz HDMI Video Encoder
TBS2605 is a professional 4K/H.265 HDMI encoder, which is also our newest HD audio & video encoding device with powerful functions. It supports real 4K max 3840 x 2160P@30fps HDMI inputs.
TBS2605 HDMI Video encoder not only supports 2 channels 4K or 5 channels H.265 encoding, but also supports multiprotocol output. Each channel supports HTTP/HLS/RTMP(RTMPS)/RTSP/UDP/SRT protocols outputting simultaneously, which is ideal for the customers who need to output with different protocols.
TBS2605 is coupled with Web UI managing system and telnet remote access, and equipped with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.
The product can be applied to education, health care, IPTV, conference, distance education, news interview, banking, transportation and other industries.
Specifications:
| Model Number | TBS2605 |
| Video Input | 5x HDMI 1.4 |
| Audio Input | HDMI embedded audio |
| Video | |
| Resolution | Input: 3840x2160p_30hz, 1920x1080p_60hz, 1920x1080_50hz, 1920x1080i_60hz, 1920x1080i_50hz, 1920x1080p_25hz, 1920x1080p_24hz, 720p_60hz, 720p_50hz, 576p, 480p, and ect. |
| Output: 3840x2160p@30fps, 1920x1080p@60fps, 1920x1080p@50fps, 1920x1080p@30fps, 1920x1080p@25fps, 720p@60fps, 720p@50fps, 1024x576, 850x480, 720x576, 640x480, 360x240, customized, and etc. | |
| Encode | H264 base line, H264 Main, H264 High, H265 Main |
| Data Rate | 0.5Mbps~20Mbps |
| Rate Control | CBR/VBR |
| Protocol | NDI | HX / HTTP / HLS / RTMP(RTMPS) / RTSP / UDP / SRT |
| Audio | |
| Encoding | AAC, MP3, MPEG2, PCMA |
| Sampling rate: | 16K, 32K, 44.1K, 48K |
| Sampling precision | 16 bit |
| Data Rate | 32Kb/s ~ 256Kb/s |
| Network Stream Input | |
| Video | H.264 / H.265 |
| Audio | MPEG 1/2, MP3, AAC |
| Protocol | NDI | HX / HTTP / RTSP / RTP / UDP (multicast, unicast) / RTMP(pull) |
| System | |
| Ethernet / RJ45 | 1000 Base-T Ethernet interface |
| System | WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX |
| Control | WEBUI |
| General Spec. | |
| Dimension | 185 * 119 * 36mm(length, width, height) |
| Power | less than 15W |
