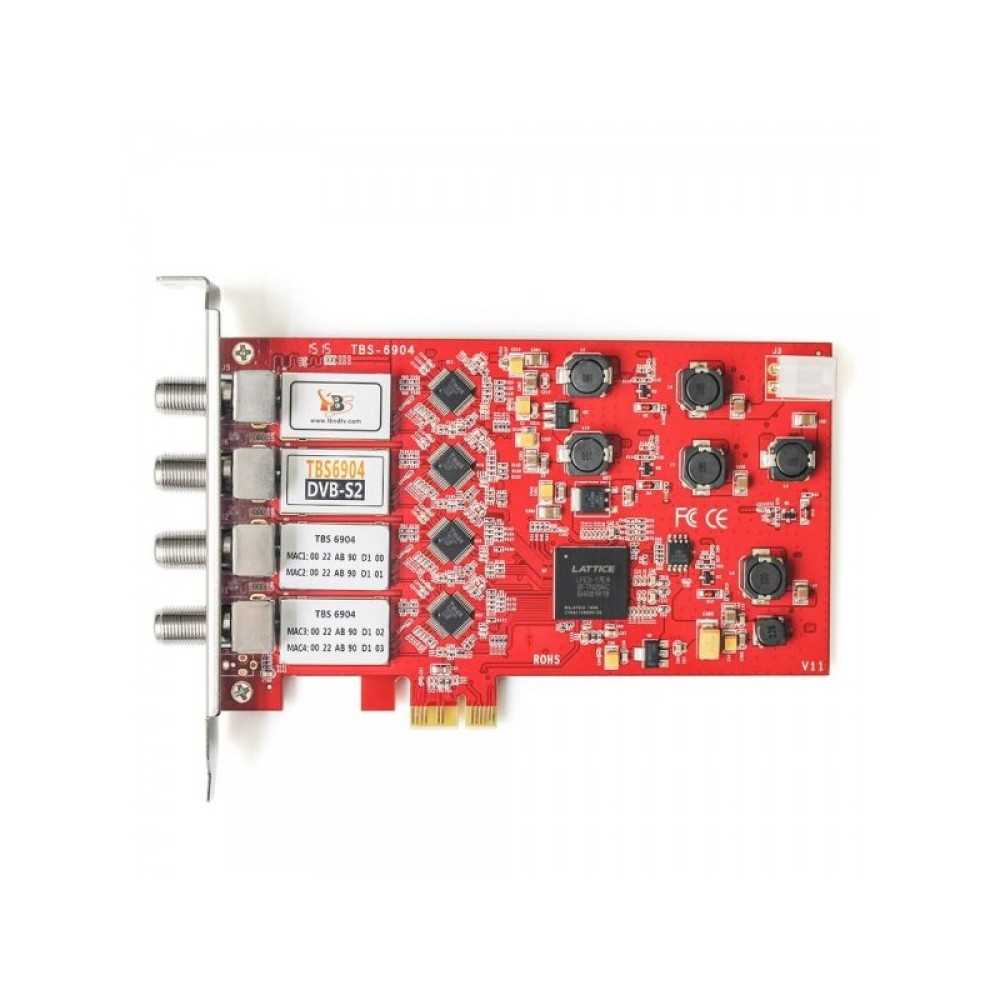

SOLID TBS6904 DVB-S2 Quad Tuner Computer PCIe Card
TBS6904 is a PCI Express interface digital satellite TV tuner card with four tuners for watching and recording Free to Air (FTA) satellite TV on PC. The four advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording three other channels from different satellite transponders at the same time. This quad tuner card is one of the most popular TV tuners for building IPTV streaming systems.
Benefits
DVB-S2/S quad tuner
Watch & record satellite TV/ radio programs on PC
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Applications
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
Frequency range: 950~2150 MHz
Signal Level: -69~-23dBm
Symbol rate: 1~45Msps
Demodulation:
DVB-S, QPSK,
DVB-S2, QPSK, 8PSK, 16APSK, 32APSK
FEC:
DVB-S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x
Connections
PCI Express
4x LNB IN
System Requirements
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB
System Requirements
1 x TBS6904
1 x DC line
