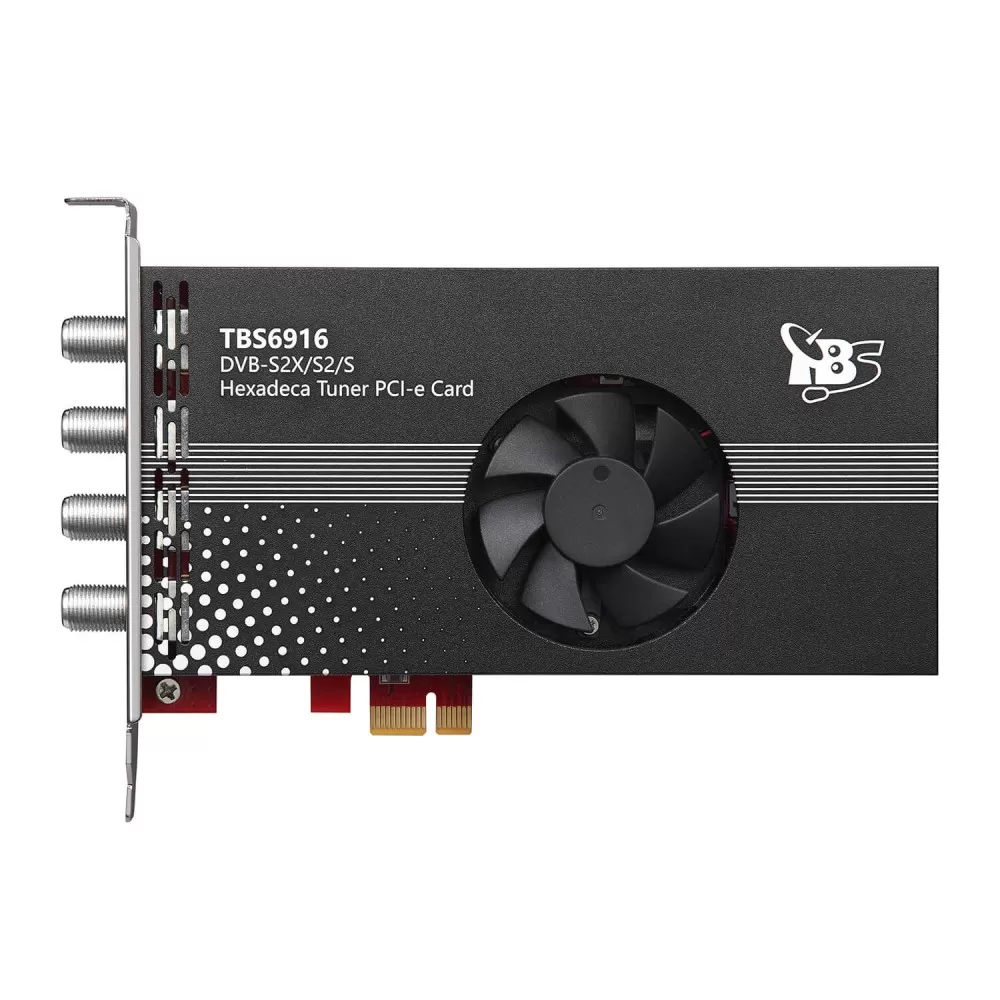

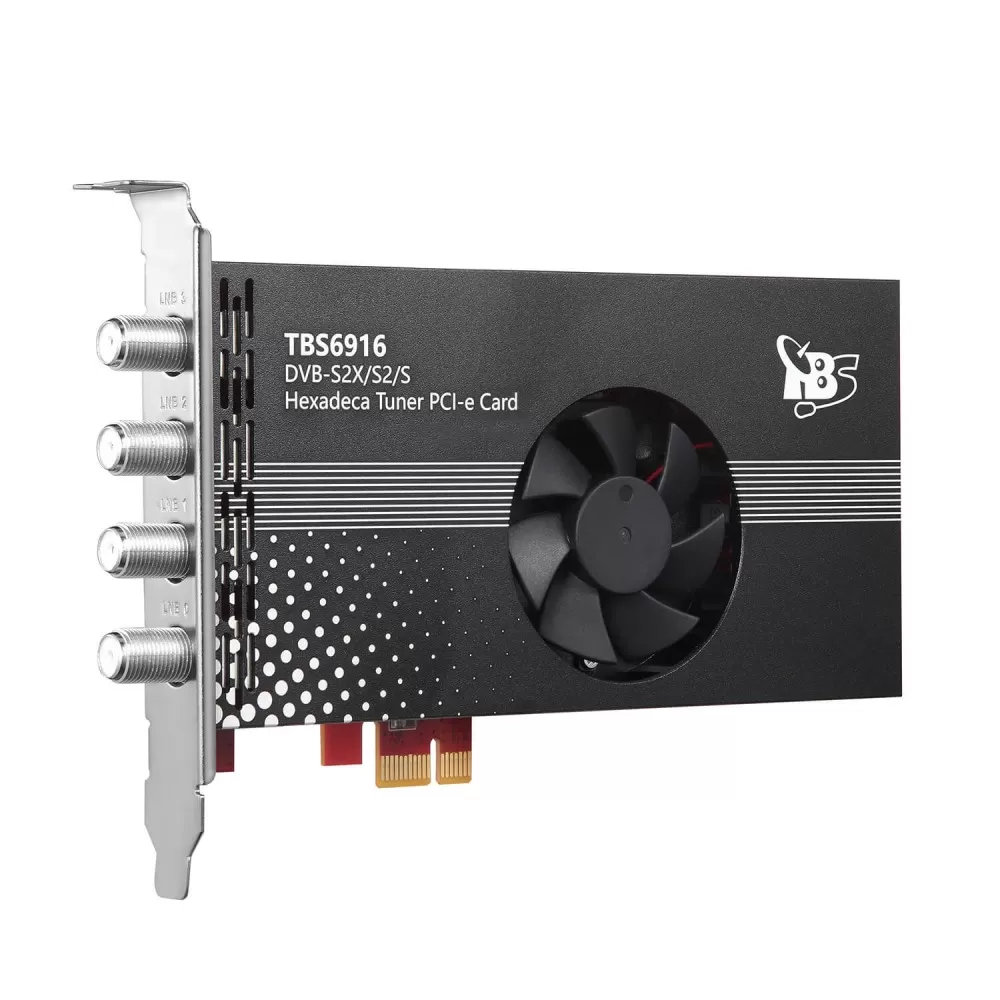

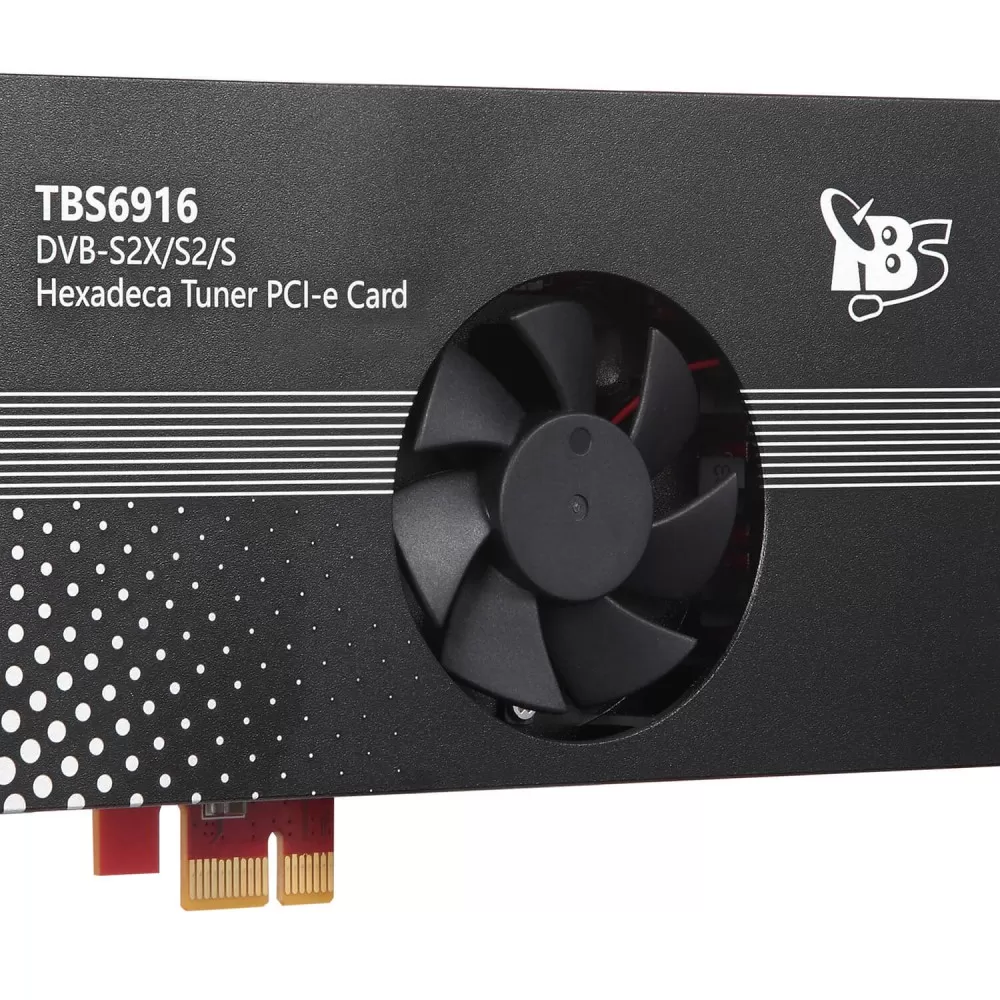

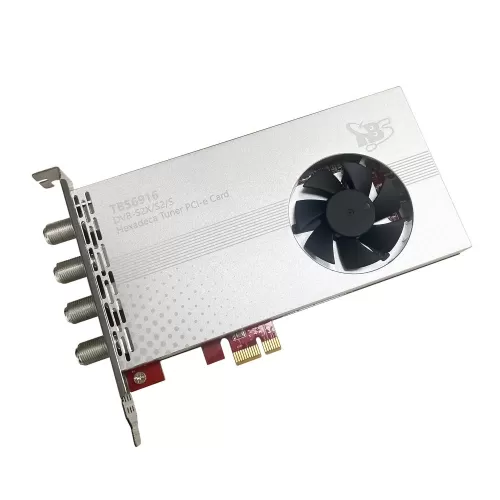

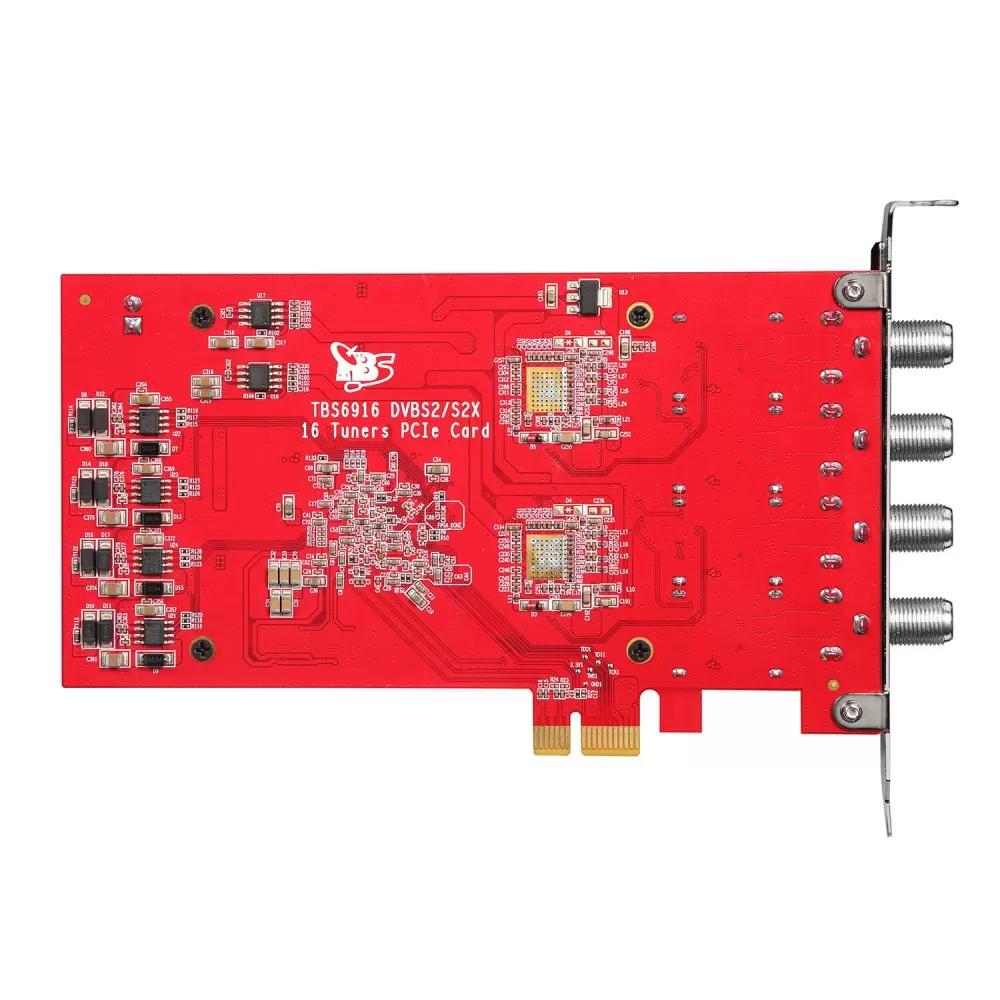

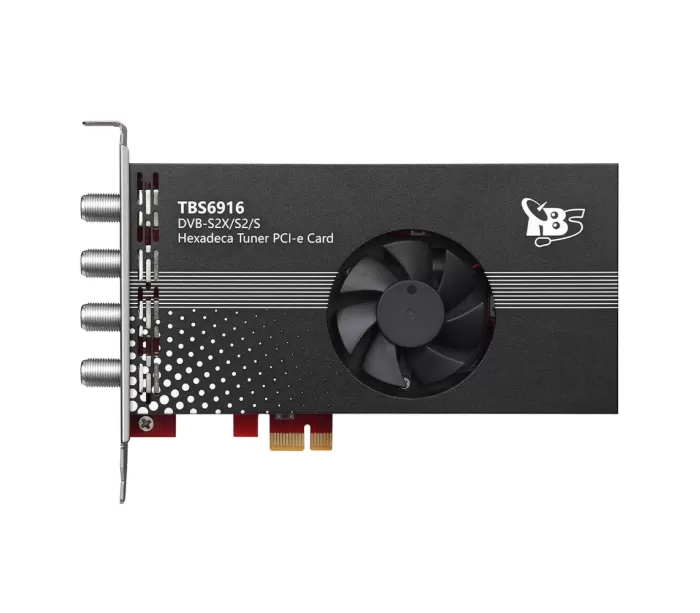

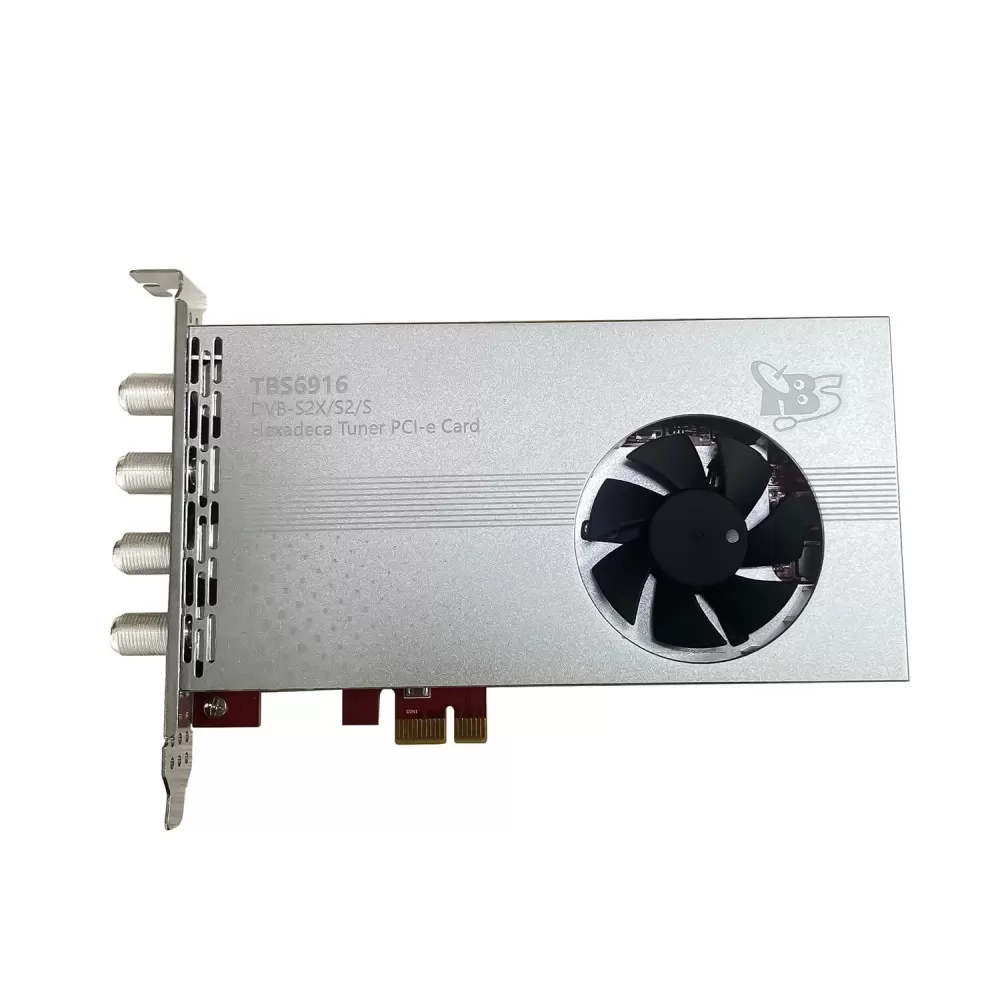

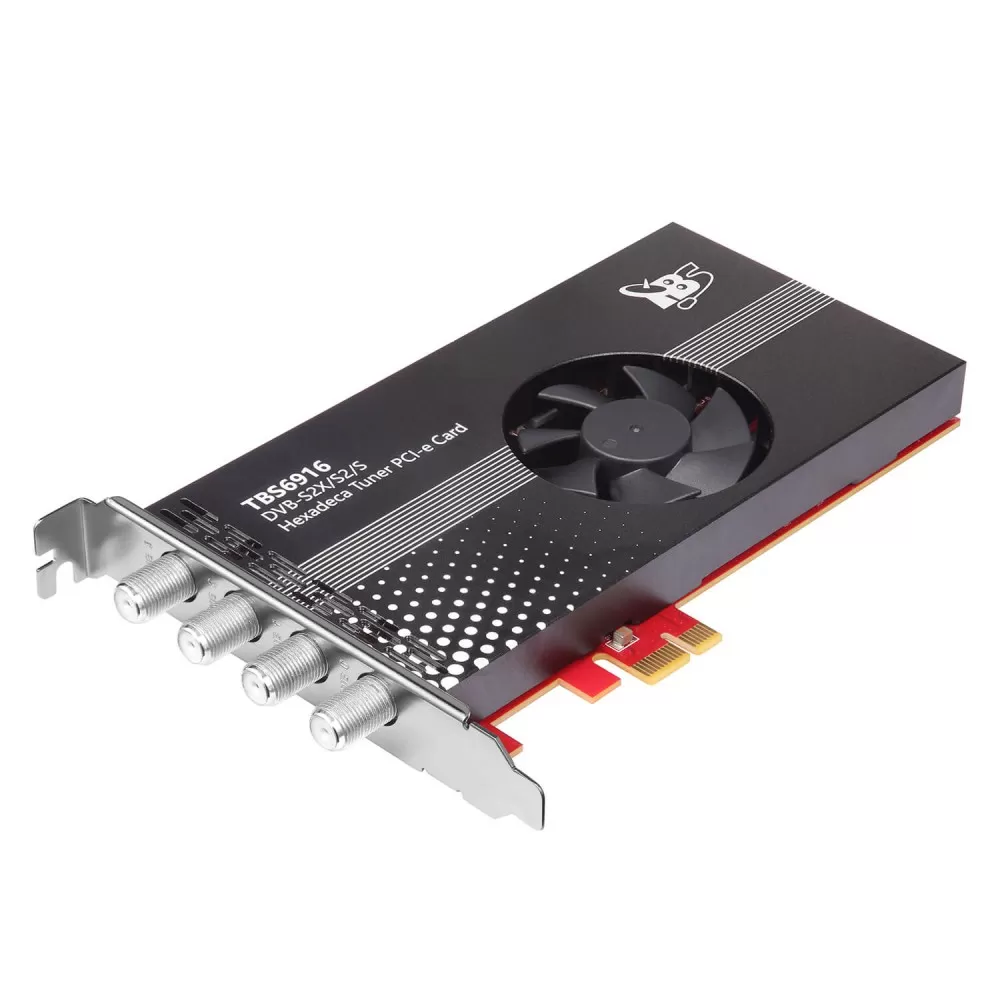

TBS6916 is a S2X/S2/S hexadeca tuner card, it not only supports to receive SD/HD digital TV channels from 16 different satellite transponders simultaneously, but also supports CCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6916 can receive more channels than the usual dual or quad TV tuner, thus it is high-minded for broadcasting system.
Main Features
Support Hexadeca S/S2/S2X
Fast scanning functionality for all media
Supports VCM, ACM, VCM and multi stream
High-speed data download via satellite
Watch & record satellite TV/ radio programs on PC
Applications
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specification
| Model | TBS6916 | |
| Connection | PCI-express | |

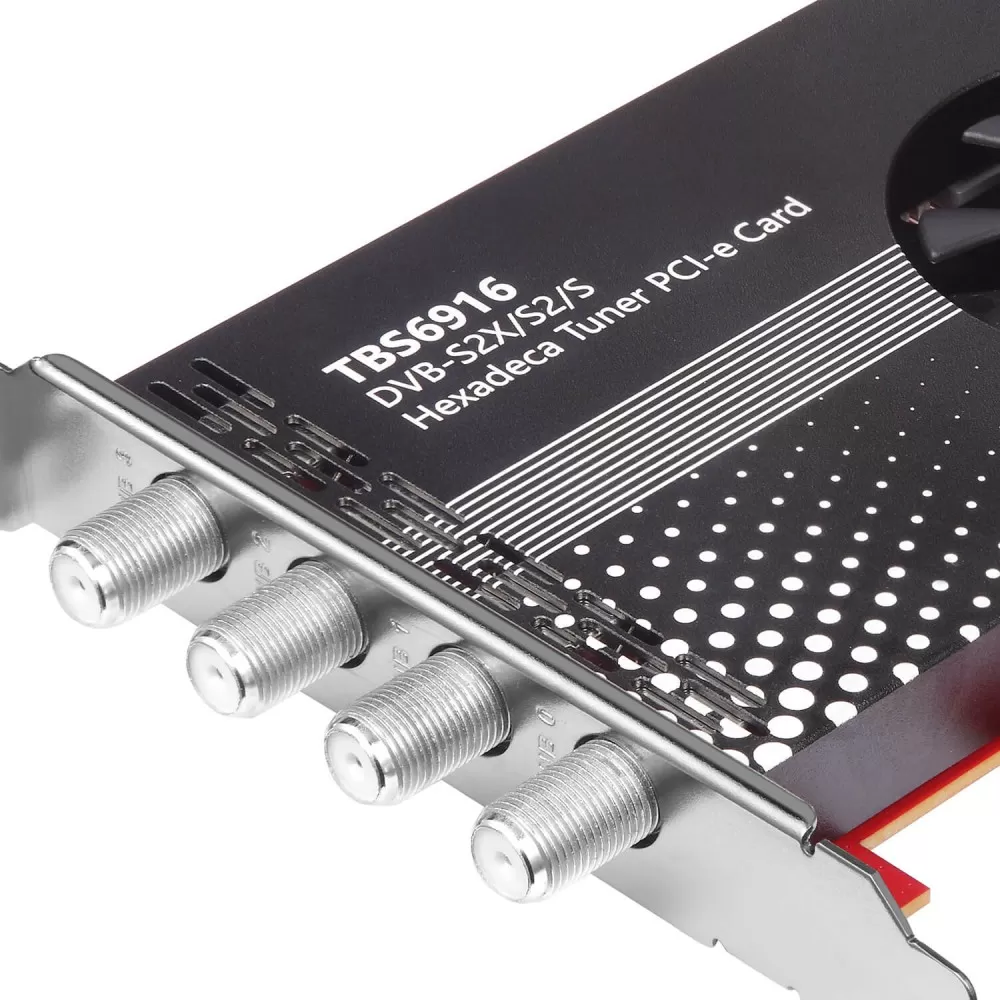

| 16 x RF in | ||
| DVB-S/S2/S2X | ||
| DVB-S/S2 | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK(32APSK-L) | 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs) 32/45, 11/15, 7/9,(2/3) | |
| VCM, ACM, CCM | Yes | |
| Symbol rate | 1 ~ 45Msymb/s | |
| Power consumption | ||
| Input/ Power: | ???? | |
| temperature | 0°~ 78° | |
| System Requirements | Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Dimension: | ||
| TV tuner card size | ||
| Gift Box Size | 200 * 130 * 30mm | |
| Weight | ||

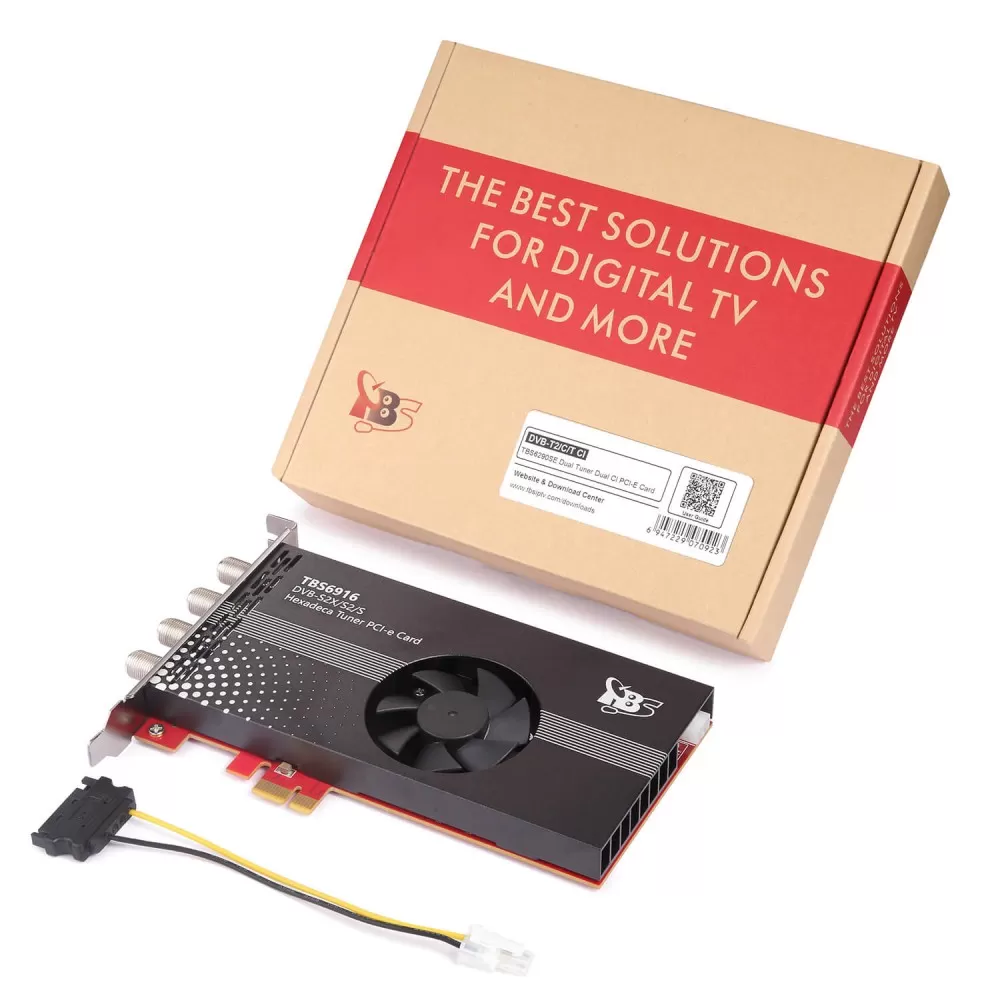

| Package Contents | 1 * TBS6916 | |
| 1 * Power cable | ||
