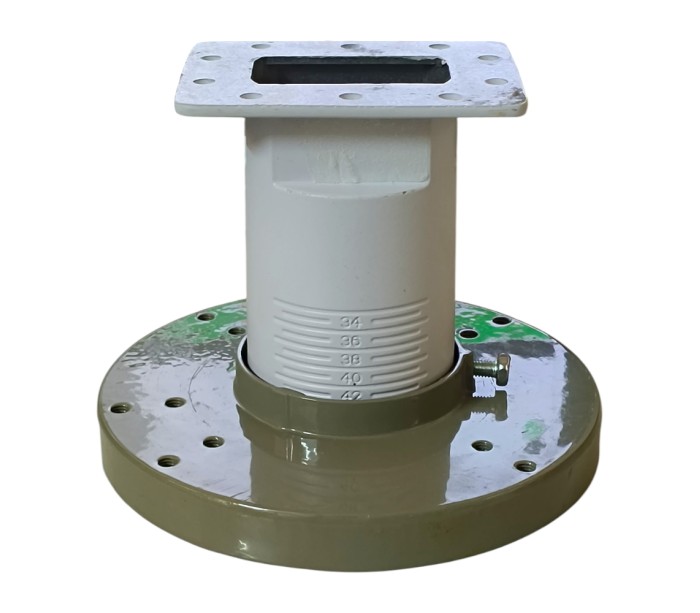

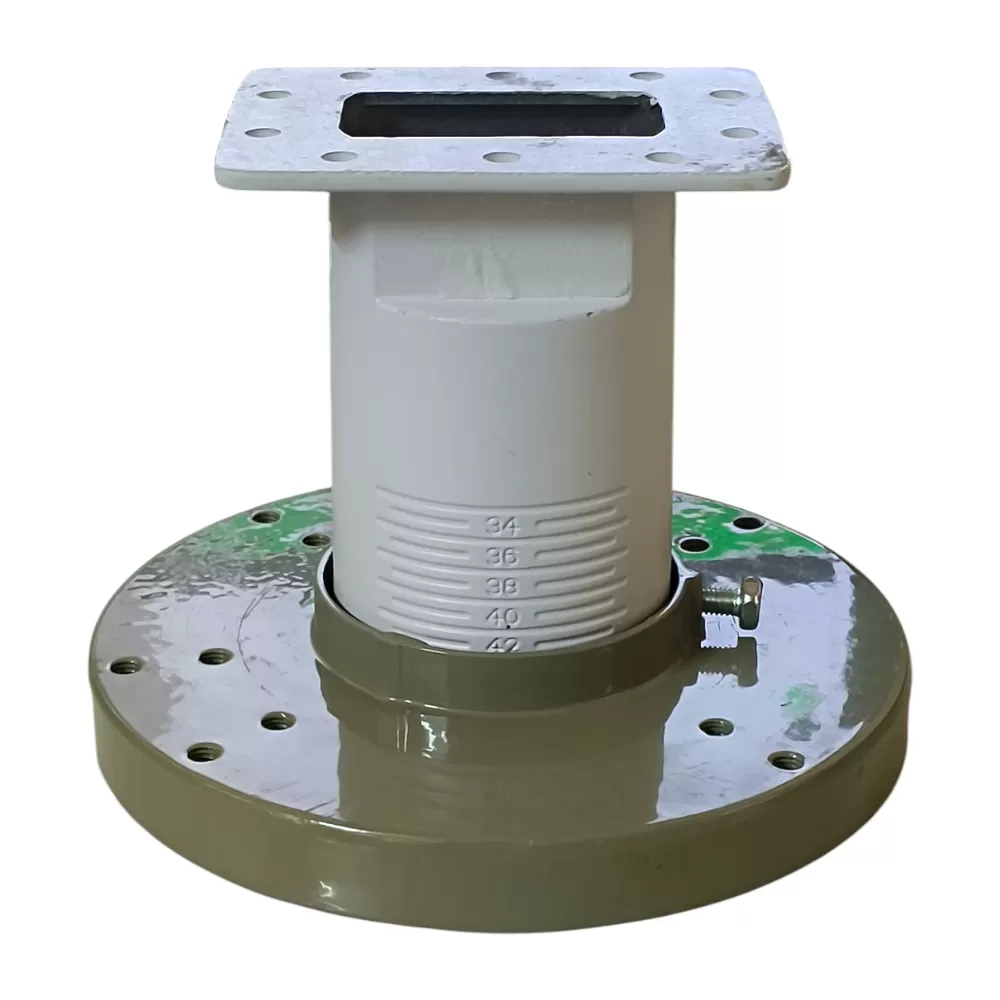

C Band Single Polarity Feedhorn - Light Weight

Our C Band Single Polarity Feedhorn can be used for single polarity reception with a Single polarity C Band LNB on prime focus C-Band dish antenna. The feedhorn has a standard C Band flange that will bolt to any standard C Band LNB. The feedhorn can be fitted to dishes that use either tri or quad-feed arms for support of the LNB and feedhorn.

Description

The  Feed is a single polarity C Band feedhorn for the reception of linear polarized signals in the 3.7 to 4.2 GHz bandwidth. Superior quality, excellent illumination patterns, and a compact design make the Super Feed the ideal choice in feedhorns for single polarity systems.

• Feed features chip-resistant

• powder paint and cast aluminum construction for

• added protection against the environment. Built-in the

• Chaparral tradition of quality, the Super Feed is the

• an ideal choice for reliable performance.


Specifications

• C-Band Frequency Range  3.7-4.2 GHz

• f/D Range  33 to 45

• Cross Pol. Isolation  25 dB minimum

• Output Ports WR 229 compatible

• Temperature Range  -40° C to 60° C
