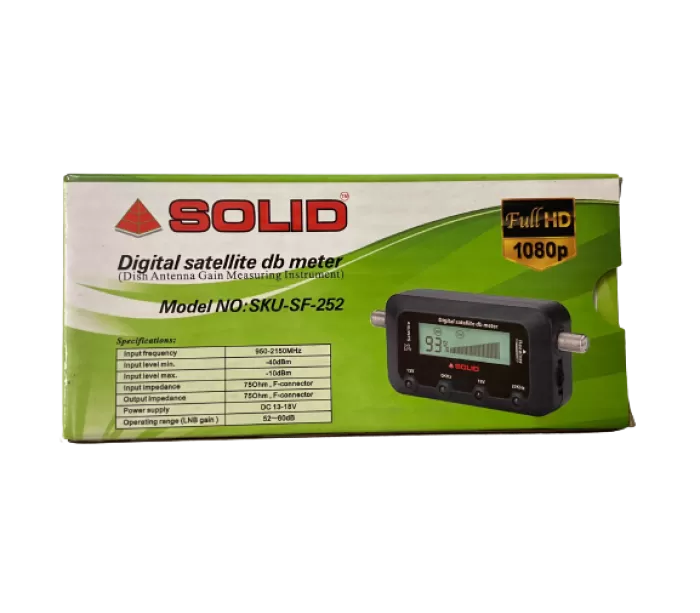

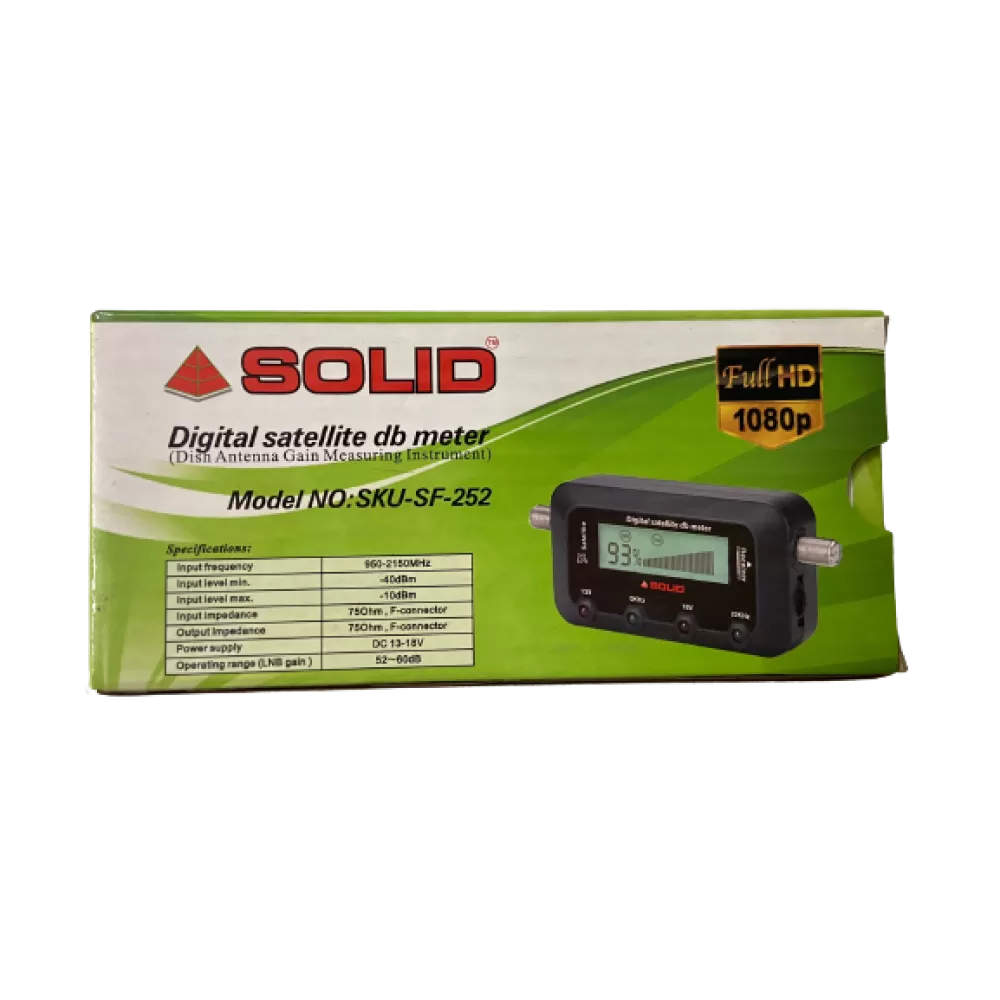

Solid SF-252 Digital Satellite dB Meter

Solid SF-252 Digital Satellite dB Meter

(Dish Antenna Gain Measuring Instrument)

Support all DTH and free-to-air and paid satellite TV signals. So you can easily set your dish / DTH antenna without calling DTH Installer. It is a must-have tool for every TV viewer because you can set your dish antenna by yourself. It is a very easy task not much technical background is required.

Model No. SF-252

Specifications :

Input Frequency: 950~2150MHz

Input level min. : -65dBm

Output level max. : -15dBm

Input impedance: 75Ohm, F-connector

Output Impedance: 75Ohm, F-connector

Power Supply: DC 13-18V

Operating Range (LNB Gain) : 52~60dB

How to connect:

1. connect a jumper cable from the LNB to the " Satellite" port on the digital Sat finder.

2. Connect the cable from your satellite receiver to the " Receiver" port on the digital Satfinder
