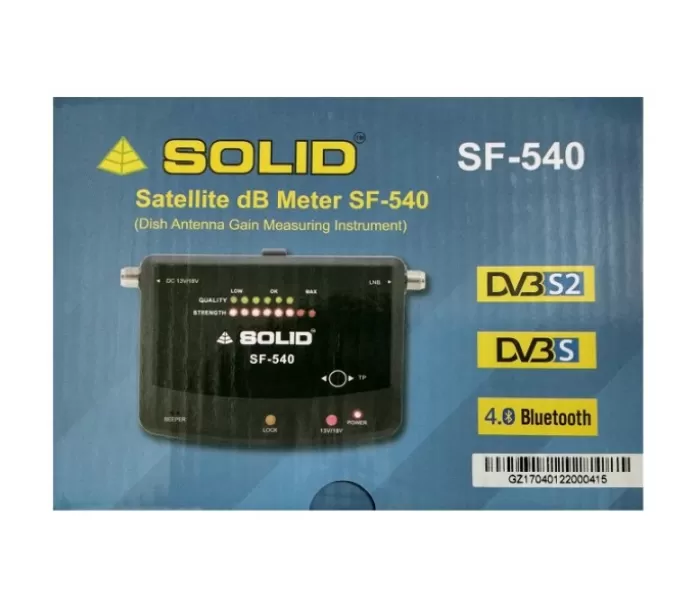

SOLID SF-540 Satellite dB Meter with Bluetooth Interface
Partner Request

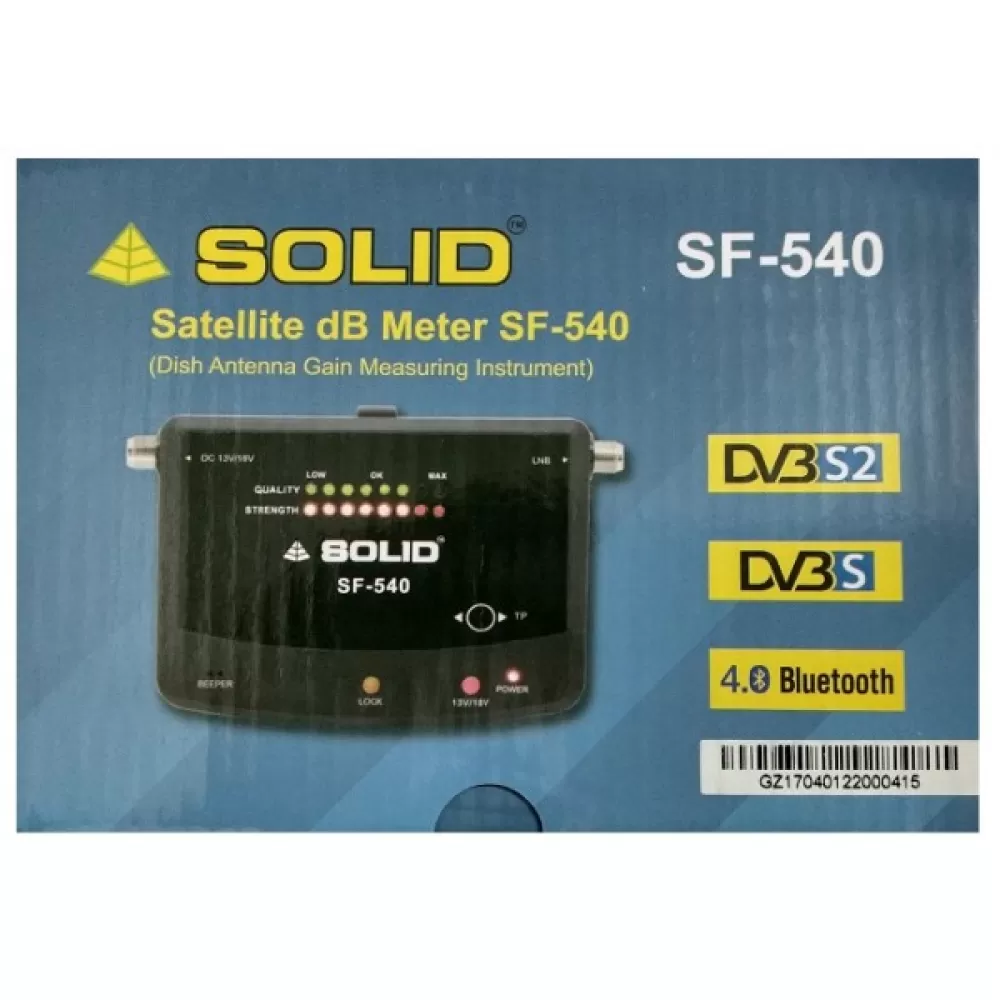

SOLID SF-540 Satellite dB Meter - Works with Satellite Finder App and Bluetooth
(Dish Antenna Gain Measuring Instrument)
This satellite dB meter has a Bluetooth interface and can be set and used via an Android app which can be downloaded from here. Buy the best Bluetooth satellite finder in India.
Download Android Application
You can also download it for iPhone from the iOS store.
- Direct selection of desired satellites on the smartphone.
- Additional measurement values such as level (in dB), C/N, BER, and MER.
- Selection of the individual transponders of the respective satellites
- More other satellite and TP can be added by mobile APP
- Individual transponders of the respective satellites are available
- New transponders can be added to the respective satellites
- The sound signal can be switched on or off
Specifications:
- Frequency Range: 950~2150 MHz
- Input level range: 44 ~ 110 dB
- Symbol rate : 1 ~ 45 Msps
- Operating Voltage: 12/18V DC
- Impedance: 75Ohm
- Input Connectors: F Type (Coaxial)
- Operating temperature : 0 degrees C to 60 degrees C.
- Other Features:
- Low noise figure
- Signal strength and signal level LED indicator
- Signal lock LED indicator
- 13V / 18V LED Indicator
- Beeper for reminder signal lock function support
- 1 satellite 4TV present
- Warranty: 30 Days from the date of Delivery
You can update the latest frequency and TP list in your satellite finder here.
How to connect? -
1. Download the Solid Bluetooth satellite finder application from the above link.
2. Install the Bluetooth sat finder application
3. Open your Bluetooth function in your smartphone or "On Bluetooth".
4. Now open your sat finder app or sat finder application and give the above 3 permission to work well.
5. Now you will see your Bluetooth satellite finder name S2-0B62ED, just click to connect.
6. now you will see satellite frequency on your mobile, if you are changing frequency, then click on the send button and wait for 15 seconds to get real results.
You can update the latest frequency and TP list in your satellite finder here.
