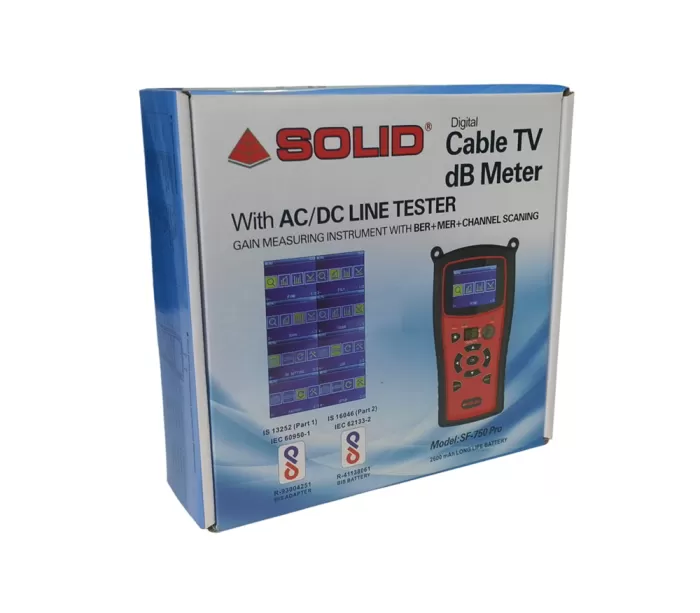

SOLID SF-750PRO DVB-C (BER+MER) Cable TV dB Meter with AC / DC (Color Display)
Partner Request
SOLID SF-750PRO DVB-C (BER+MER) dB Meter with AC / DC
In today's digital age, accurate signal measurement is crucial for ensuring high-quality cable TV services. The SOLID SF-750PRO DVB-C meter is a professional-grade tool designed to provide precise measurements of DVB-C signal quality. In this blog post, we'll explore the features and benefits of this meter and how it can help cable TV operators and technicians.
Features and Benefits:
The SOLID SF-750PRO DVB-C meter offers a range of features that make it an essential tool for cable TV signal measurement. These include:
1.Accurate Measurements: The meter provides precise measurements of BER (Bit Error Rate), MER (Modulation Error Ratio), and signal strength in dBm.
2.Wide Frequency Range: The meter covers a wide frequency range of 50-870 MHz, making it suitable for measuring DVB-C signals.
3.Easy to Use: The meter has a user-friendly interface and a large LCD display, making it easy to operate and read measurements.
4. Compact Design: The meter is lightweight and portable, making it convenient for field use.
Applications
The SOLID SF-750PRO DVB-C meter is ideal for a range of applications, including:
1. Cable TV System Installation: The meter ensures that cable TV systems are installed correctly and that signal quality meets the required standards.
2.Signal Troubleshooting: The meter helps technicians identify signal quality issues and optimize system performance.
3.Maintenance and Repair: The meter is useful for routine maintenance and repair of DVB-C systems.
Conclusion:
The SOLID SF-750PRO DVB-C meter is a reliable and accurate tool for measuring DVB-C signal quality. Its wide frequency range, precise measurements, and user-friendly interface make it an essential tool for cable TV operators and technicians. Whether you're installing, troubleshooting, or maintaining DVB-C systems, this meter is the perfect solution.
Features :
Support DVB-C function
Support Automatic channel scanning
Build highlight LED
Show the signal quality of the nixie tube
Built-in buzzer
Support to check the power cable automatically
Support to reset to defaults
The unit of signal power support dBm, dBuV
Use USB 2.0 for software upgrades and data backup.
Specifications of DVB-C signals -
Digital Channel Frequency - 47 to 862 MHz
Impedance - 75ohm
Signal level - -78 to -10dBm
Symbol Rate - 1.4M to 7.5M baud
Demodulation Scheme - 16QAM / 32QAM / 64QAM / 128QAM / 256QAM
Demolution type - DVB-C
Bandwidth - 6MHz / 8Mhz
