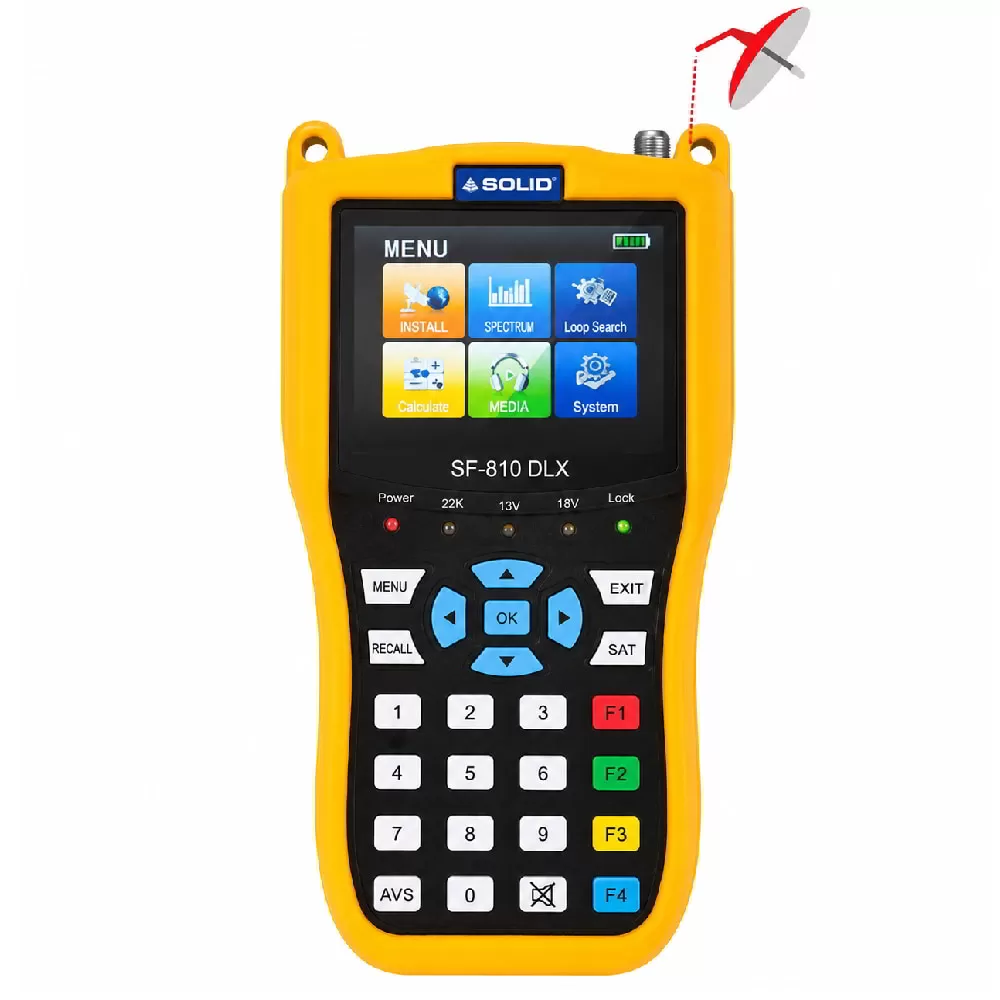

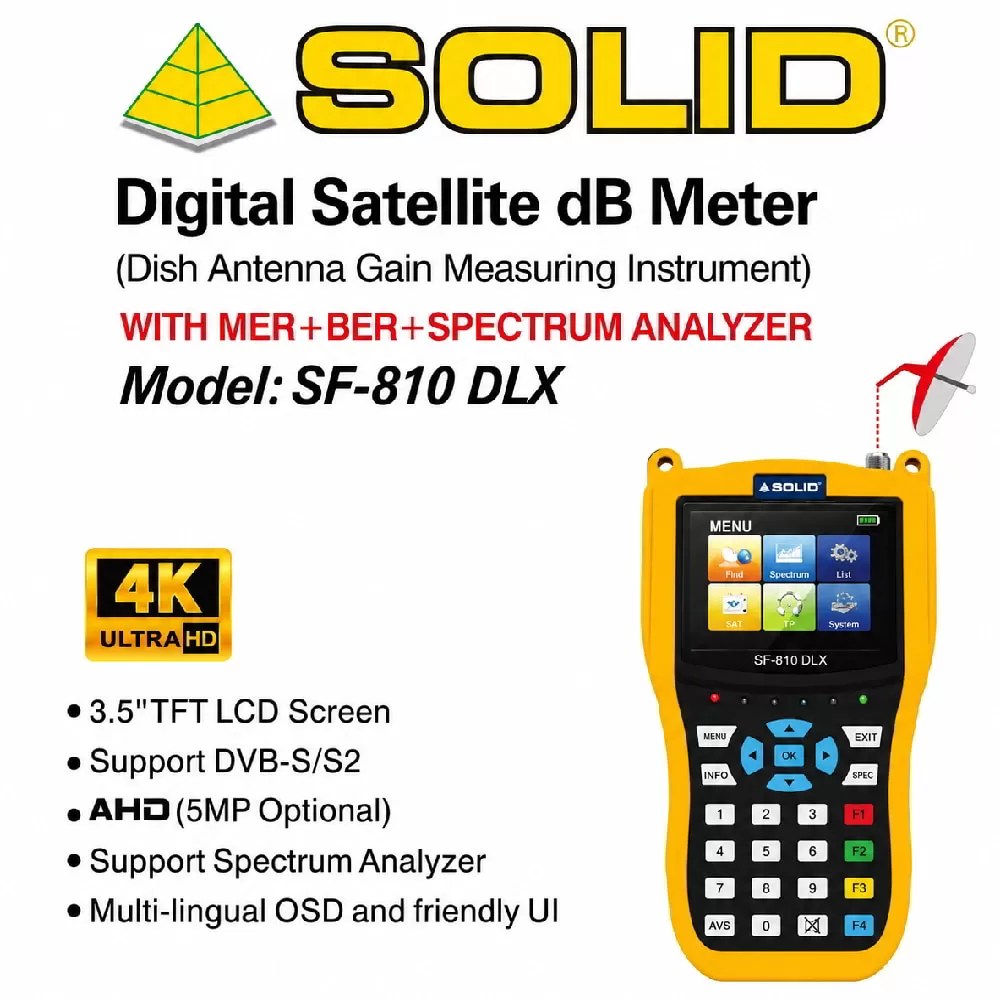

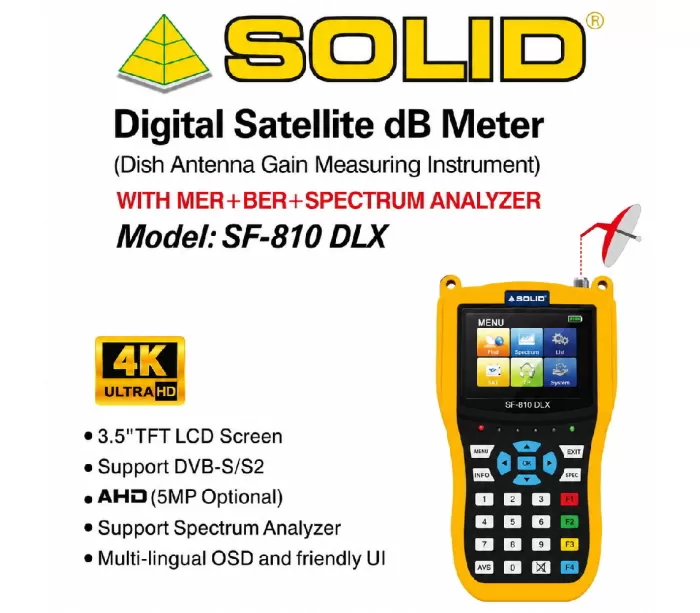

SOLID SF-810DLX Digital Satellite dB meter with Live TV Screen
This satellite dB meter supports audio and video so you can check video quality and signals at the same time while installing dish antenna. This satellite finder coming soon to India in April
Features:
- 3.5''TFT LCD Screen
- Support DVB-S/S2
- Support CCTV camera testing
- AHD(5MP Optional)
- Support Spectrum Analyzer
- Multi-lingual OSD and friendly UI
Specifications:
| System Resources | |
| Main Processor | 600M Hz based CPU |
| Flash Memory | 64M Bits |
| DDR2 SDRAM | 512M Bits |
| Tuner/Front-end | |
| Tuner Type | DVB-S/DVB-S2 |
| Input Connector | F-type |
| Frequency Range | 950MHz~2150MHz |
| Signal Level | -65~-25dBm |
| Impedance | 75Ω |
| LNB Power & Polarization | Vertical:+13V |
| Horizontal:+18V | |
| Current:Max.500mA | |
| Overload Protection | |
| DiSEqC Control | Version 1.0/1.1/1.2/1.3, USALS Available |
| 22KHz Tone | Frequency:22±1KHz |
| Demodulation | QPSK,8PSK,16APSK,32APSK |
| Symbol Rate | 1~60Msps |
| Power Supply | |
| Input Voltage Adapter | Free Voltage (100~240V AC 50/60Hz) |
| Power Consumption | 10W MAX |
| Power charger output | 14V DC 2A |
| Battery | 12.6V/2200mAh |
| Battery charging time | 6H |
| Battery standard discharging time | 3-4H |
| CCTV input | CVBS(SF-3600G) CVBS/ TVI /CVI /AHD(SF-3600GC) |
| Video Output | RCA(CVBS, L), HD TV Interface |
| Power Output | DC12V |
| Audio output | Built-in Loudspeaker |
| USB | 1*USB 2.0 slot Compatible for Host |
| Transport Stream | MPEG-2/4, H.264 |
| Physical Specification | |
| LCD size | 3.5 inch |
| Display Resolution | 320(RGB)*240 |
| Operating Temperature | 0℃ ~ + 45℃ |
| Storage Temperature | -10℃ ~ + 70℃ |
- Warranty: 7 Days from the date of delivery
- Other Information:-
