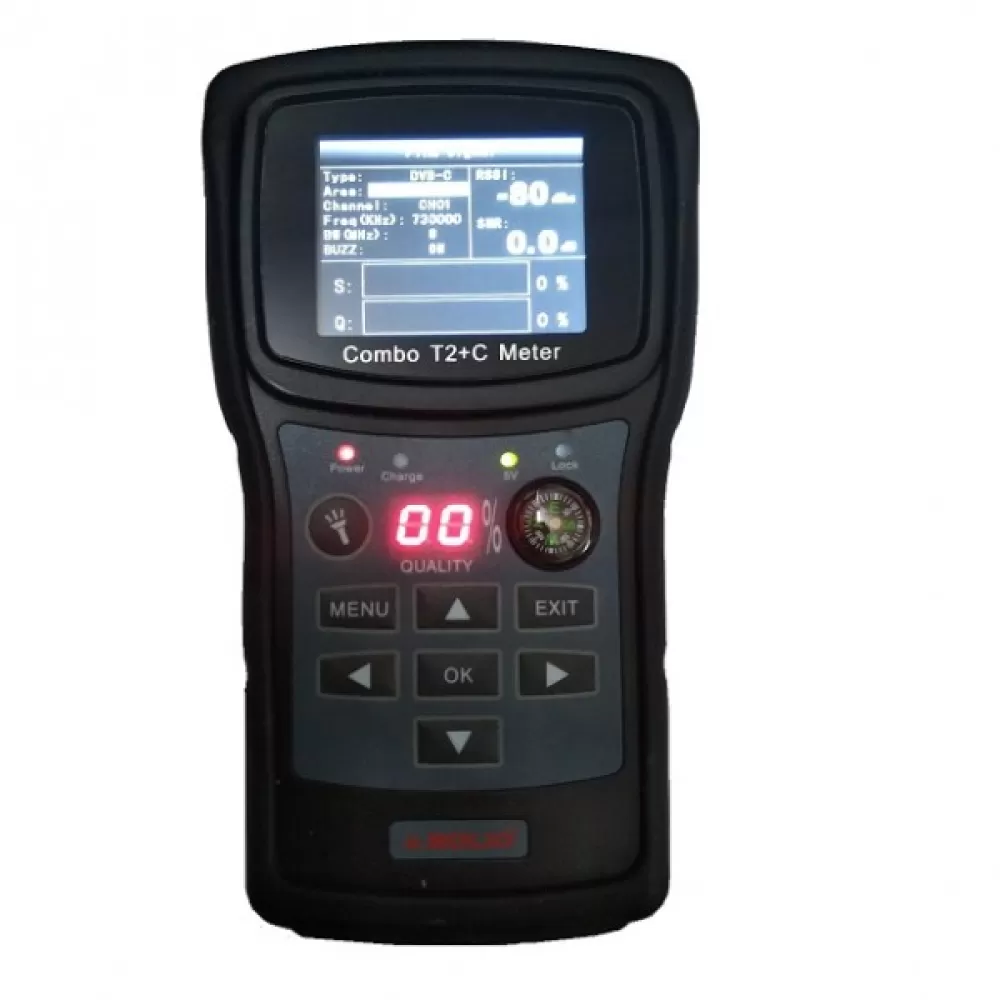

SOLID SF-750 T2+C Combo (BER+MER) dB Meter

SOLID SF-750 T2+C Combo (BER+MER) dB Meter

Features :

Support DVB-T, DVB-T2 and DVB-C function

Support Automatic channel scanning

Build highlight LED

Show the signal quality of the nixie tube

Built-in buzzer

Support to check the power cable automatically

Support to reset to defaults

The unit of signal power support dBm, dBuV

Use USB 2.0 for software upgrade and data backup.

Specifications of DVB-T2 signals -

Frequency range - 170 to 230MHz (VHF Band)

- 470 to 862Mhz (UHF Band)

Impedance -  75ohm

Signal level - -78 to -10dBm

Demodulation Scheme - DVB-T / QPSK / 15QAM / 64QAM / 256AQM

    - DVB-T2 / 16QAM / 64QAM / 256QAM

Brandwidth  -    5MHz / 6MHz / 7MHz / 8Mhz

Demolution type - DVB-T and DVB-T2

Specifications of DVB-C signals -

Frequency - 47 to 862 MHz

Impedance -  75ohm

Signal level - -78 to -10dBm

Symbol Rate - 1.4M to 7.5M baud

Demodulation Scheme - 16QAM / 32QAM / 64QAM / 128QAM / 256QAM

Demolution type - DVB-C

Brandwidth - 6MHz / 8Mhz
