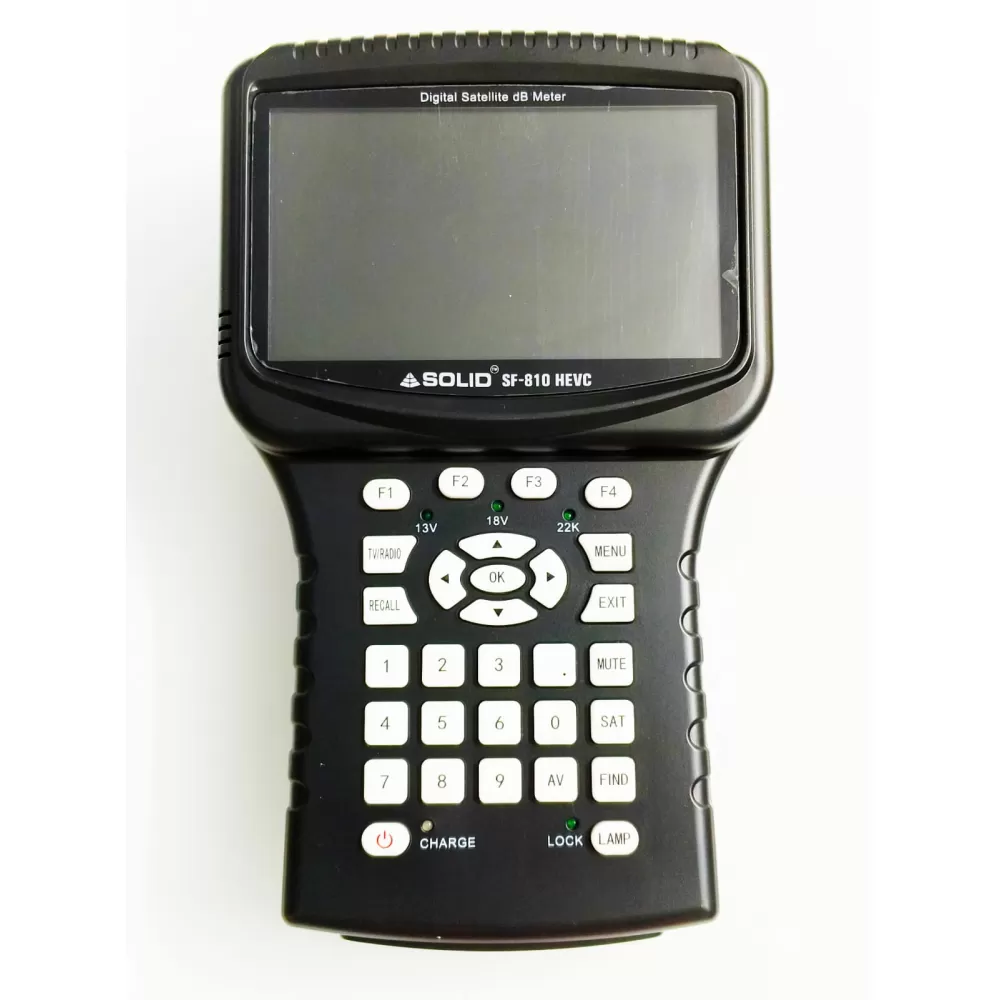

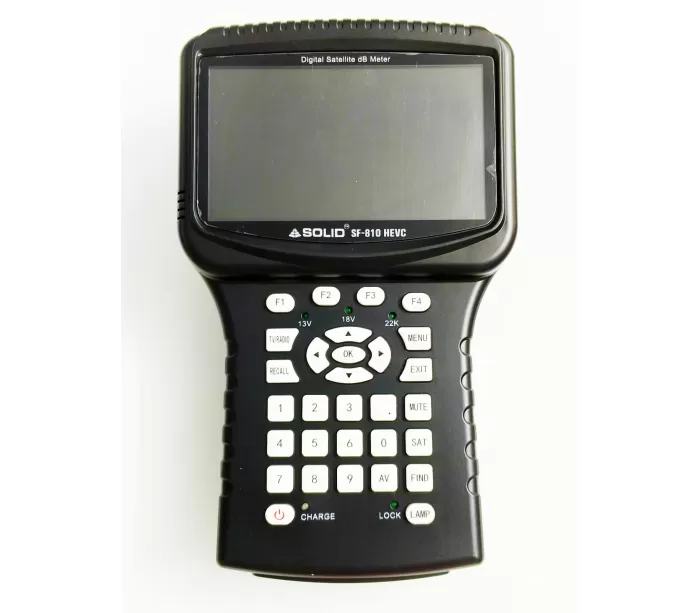

SOLID SF-810 HEVC Full HD Digital Satellite dB Meter

SOLID SF-810 HEVC Full HD Digital Satellite dB Meter

Now you can check audio and video for FTA satellite TV channels. This meter is an upgraded version of SF-810 and comes with HEVC technology.

General Features

DVB-S/DVB-S2 Constellation and Spectrum Analyzer supported

4.3 “inch definition TFT LCD screen

Measurement of BER, MER, C/N

CCTV camera Tester supported

13V/18V/22KHz/Lock/Power status display

DISEqC 1.0/1.1/1.2/USALS

Multi-media Payout supported

Multilingual OSD for worldwide use

USB2.0 interface available for software update

LED torch and stereo- loudspeaker inside

5000mAh long-life rechargeable Li-ion battery

1. Product Overview
2. Power Key: Press the power key for 3s to turn the unite on/off
3. LCD Screen: Shows menus and parameters clearly
4. Power light: Indicates the power status

Red: The unit is switched on or in charging

Red flashing: The unit has been short-circuited

Red/Green alternating flashing: The unit needs to be charged or it is fully charged

3. Lamp Light: switch on/off the utility LED on the back
4. 22K Hz/ 13V/18V lights: Indicate the 22K Hz/ 13V/18V status
5. Function keys: F1-F4, to access functions indicated on the display
6. Arrow key and OK key: Press the arrow key to select the desired function then press OK to confirm
7. 8. MENU key: Enter the main menu
8. EXIT key: Exit from the present menu back to the previous menu
9. 10. SAT key: To start satellite search
10. FIND key: Enter the packet control menu, You can find the information about transponders quickly
11. TV/RADIO: To switch between TV and Radio services
12. RECALL: Show the previously viewed channel or list

III.           Technical parameters

DVB-S/S2 Measurement

General Features

CCTV TESTER

DVB-T/T2 Measurements (OPTION)

  VII. Standard Accessories

     User’s manual

     Adapter

    F-type connector

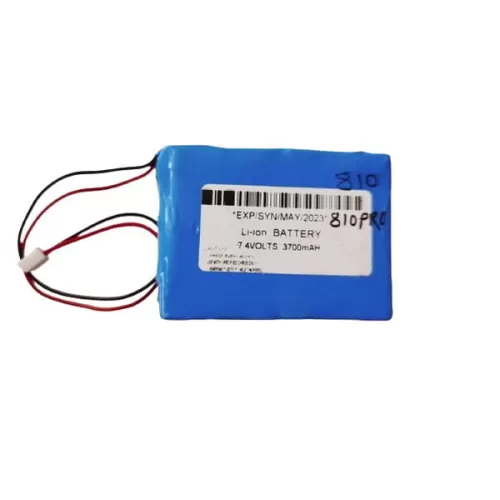

    Li-ion Battery 5000mAH/7.4 Rechargeable

OPTIONAL ACCESSORIES -

HDMI cable

AV cable

DC- Micro USB power cable

Car charger/power cable

BNC-AV connector

Nylon Bag & Straps

IV.System Setting

1. Time Setting Change the settings of the time /time zone
2. Software Upgrade Software update by USB
3. Factory Reset Reset all settings to factory default, the password is 0000.

2. Main Menu-> Setting-> Setting
3. Language change the language of Menu / Audio/ Subtitle/TTX/EPG
4. Network Setting
5. Other DC 12V output on/off

1. Optional Functions

 1. DVB-T/T2

Main menu-> Installation-> DVB-T to setting and according to your region to find DVB/T2 signal and channels

2. DVB-C settings (option)

Main menu-> Installation-> DVB-C to settings and according to your region to find DVB-C signal and channels

3. CCTV Monitor

This model supports a CCTV monitor function, connecting your composite camera signal correctly and pressing the AV button to active

• Connect the CCTV camera signal cable with finder BNC to AV
• Connect the CCTV camera with the finder via a power cable (12V out interface)
• Enter the Main menu – system setting – other power supply: Switch to ON”

• Satellite Meter Setup

1. Installation

 Press the MENU key to show the main Menu and enter the satellite installation mode.

2. Antenna Setting

Main Menu->Installation->Antenna Setting Enter the satellite setting to select. Use  (/) Buttons to set LNB DiSEqC and TP . When all parameters are confirmed, press OK to start searching for channels

3. Satellite Setting

Main Menu->Installation-> Satellite   List Press OK to enter the satellite settings, On this page, you can change the setting of pre-programmed satellites. Also, you can delete/add/edit/search manually

4. Calculation

Main Menu->Installation->Calculation  Press OK to enter the calculation function, choose the satellite you want to find, input your local Longitude and latitude, press OK and finder will calculate Azimuth/ Elevation / Polarity for you.

5. Finder

Main Menu-> Finder->DVB-S2 press OK to enter the DVB-S2 signal finder function, choose the satellite you want to find.

6. Spectrum

Main Menu-> Spectrum In this menu you can see the strength of all received transponders

7. Constellation

Main Menu-> Constellation enter into the constellation mode.
