-1000x1000.jpg "SOLID CB1-13K-SINGLE C-BAND LNBF")

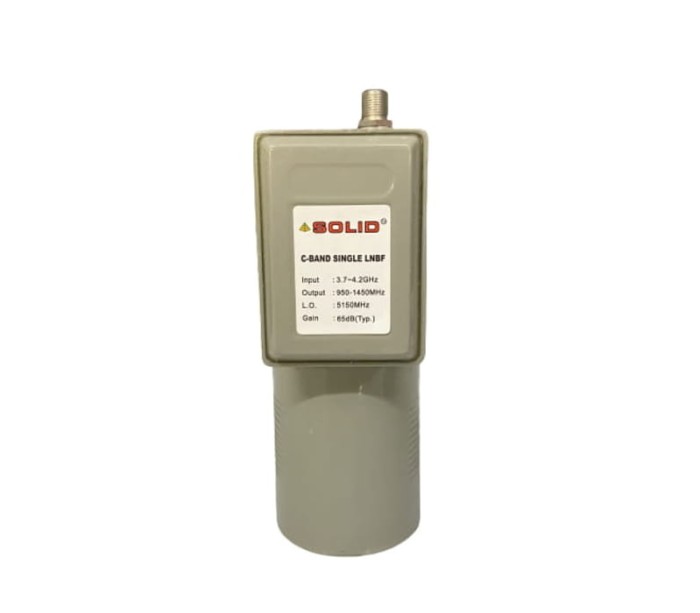

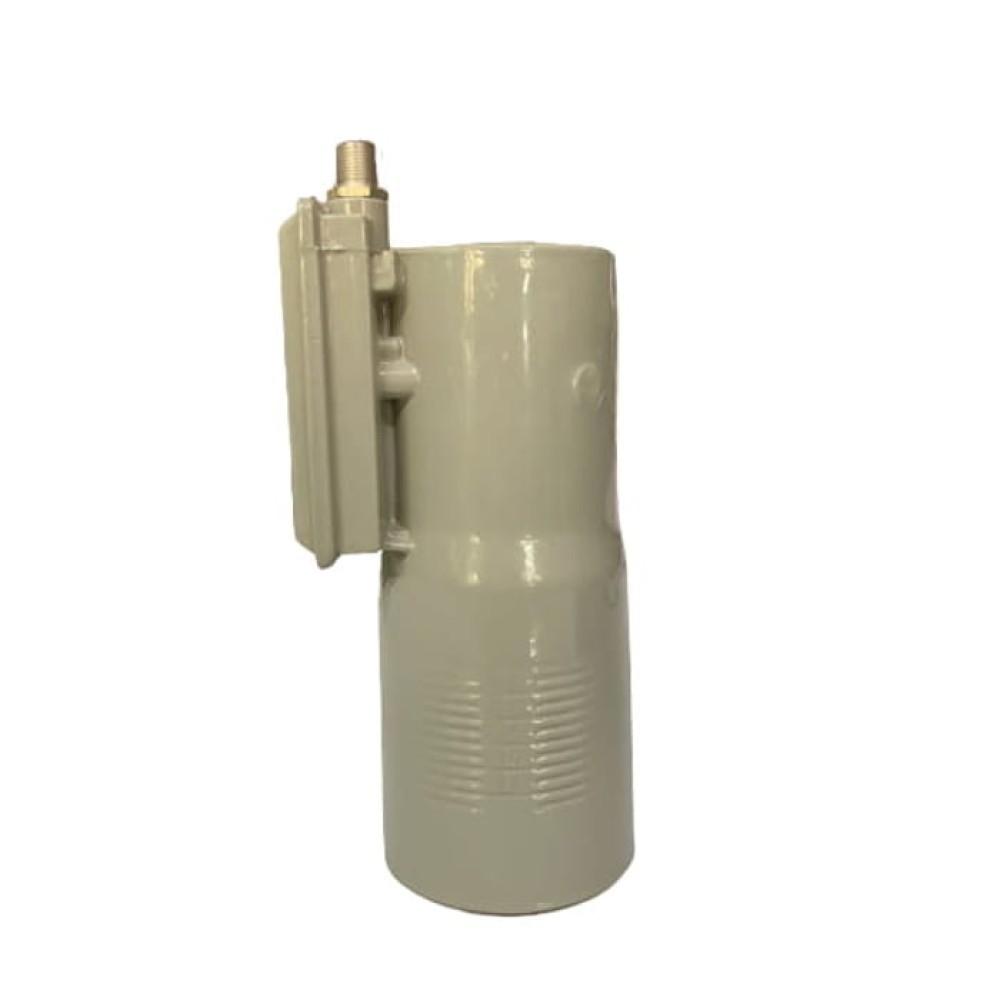

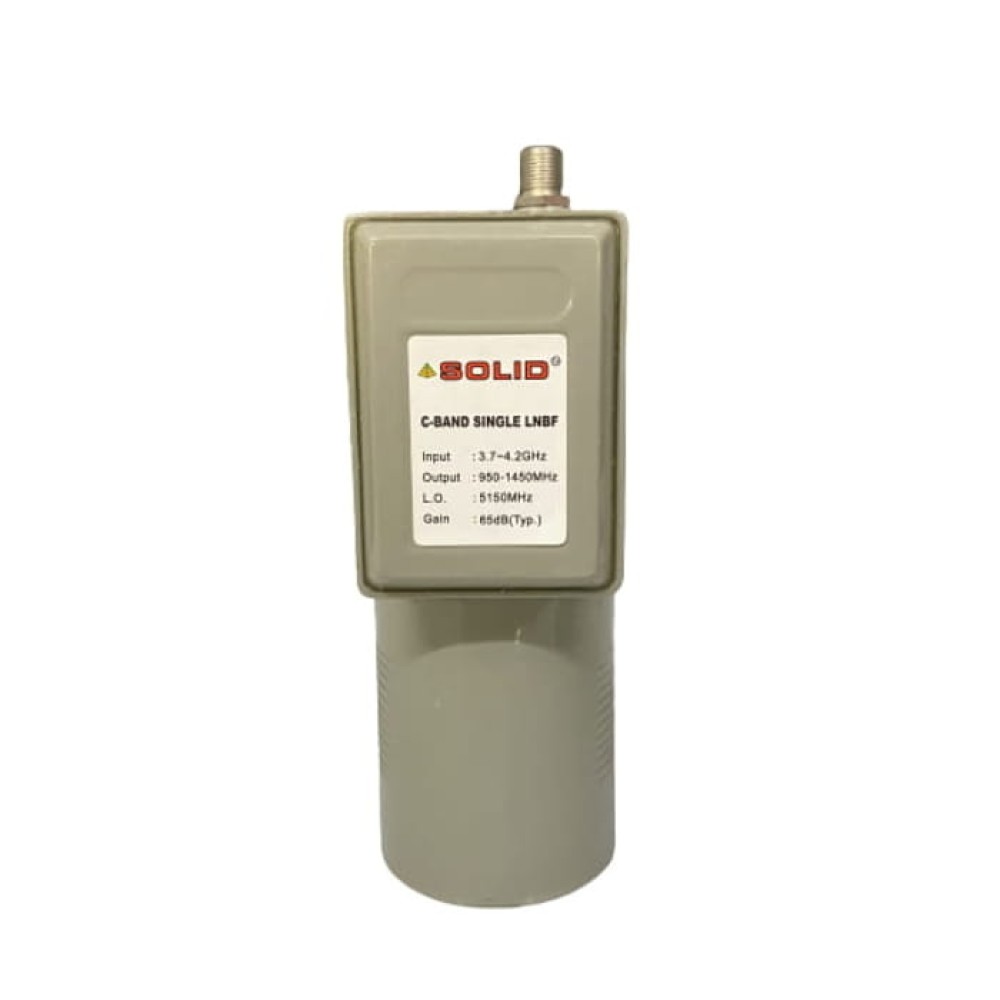

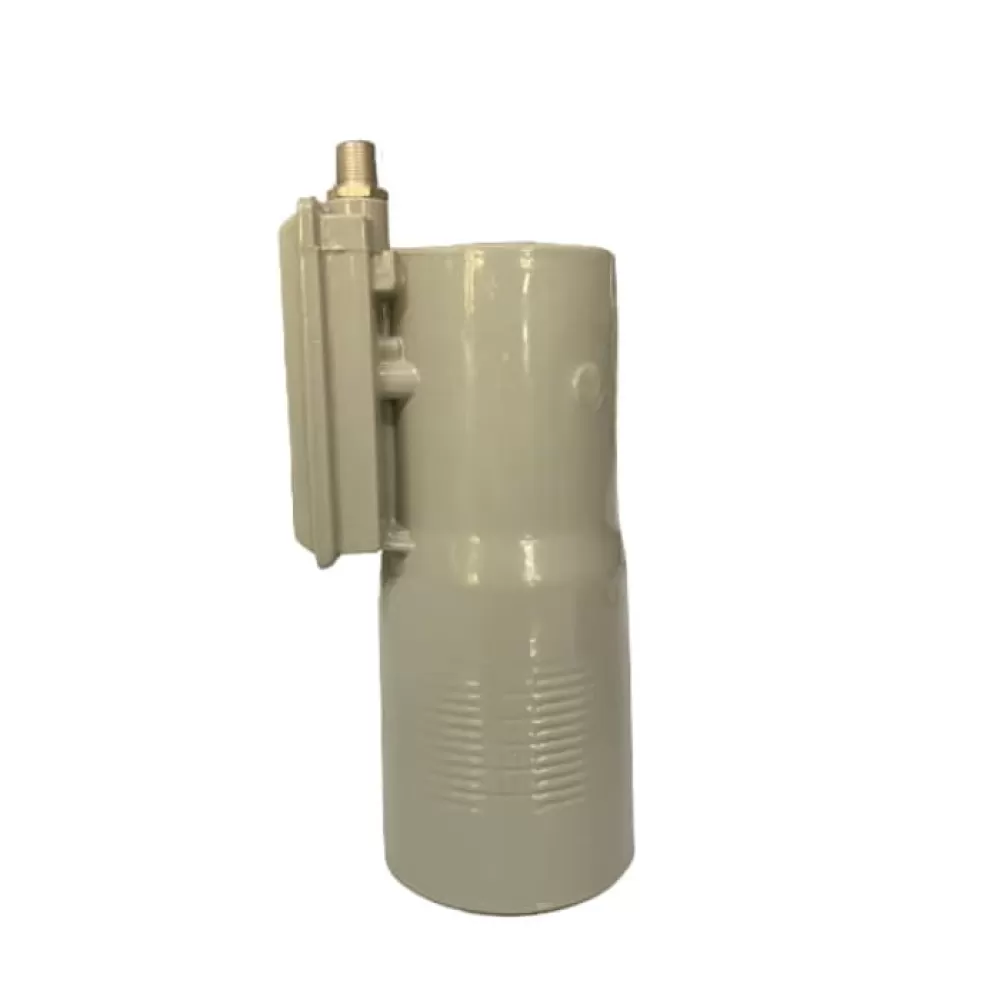

SOLID C-BAND SINGLE LNBF
(Model - CB1-13K)
SPECIFICATION-
Input Frequency - 3.4-4.2GHz
L.O Frequency - 5.150GHz
Frequency Stability - +/-2MHz (-40'c-+70'c)
Local Leakage Input - 15dBm
Output Frequency - 950~1750MHz
Conversion Gain - 65dB (Typ.)
Gain Flatness - +/-1dB/36MHz
Output VSWR - 2.1
Output Spurious - -60dBm (Max)
Noise Figure - 13'K (Max)
Power Supply - 24V (DC),250mA(Max)
Waveguide - WC-229
Switching Voltage - 13V/18V
Image Rejection - 45dB(Min)
Output Power - +5dBM (at1dB Compression)
Output Compression - Type F Female
Input Connector - Circular WG with Horn with Horn Ring
This C-Band LNBF is best suitable for receiving C-Band TV Signals using a C-Band Dish Antenna.
