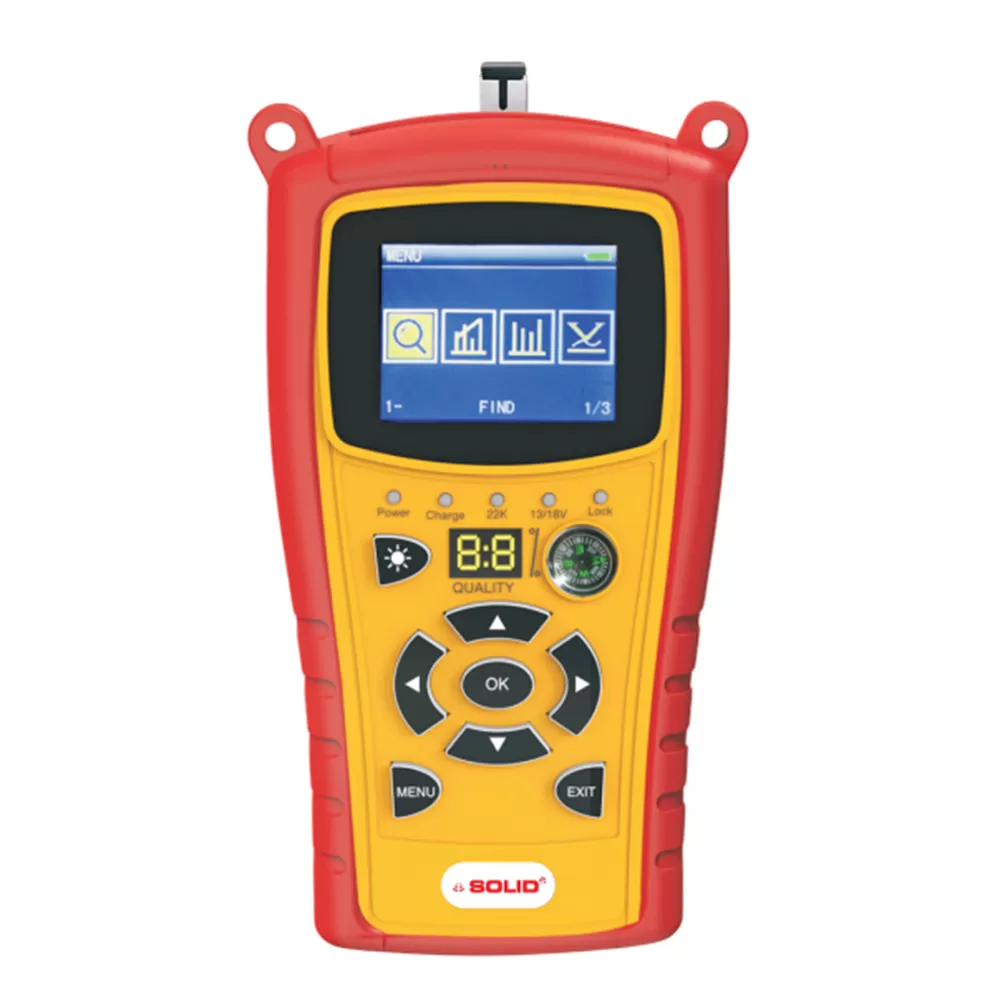

Solid SF-936 CABLE TV DB METER WITH FIBER TEST
|
DVB-C |
CABLE METER RF TECHNICAL SPECIFICATION |
|
|
Standard |
DVB-C: EN 300429 |
|
|
Demodulation |
16/32/64/128/256 QAM |
|
|
Frequency Range |
45~1002MHz |
|
|
Bandwidth |
6M, 8M |
|
|
Symbol Rate |
1.4~7.5Msps |
|
|
Signal Level |
-78-20dBm |
|
|
|
OPTICAL POWER METER (OPM) TECHNICAL SPECIFICATION |
|
|
Optical |
Connector |
Universal SC |
|
Power detect range |
-50 ~- 26dBm |
|
|
Wave Range |
800nm-1700nm |
|
|
Detector Type |
1mmlnGaAs |
|
|
Uncertainty |
5% |
|
|
Calibration Wave |
850/980/1300/1310/1490/1550/1625nm |
|
|
Power adapter |
Output |
DC 12V |
|
RF Input |
75 0 Type-F(1) |
|
|
Others |
USB |
USB Port |
|
Voltage Detection |
AC/DC: 0~120V |
|
|
Operation temperature |
-10~+50℃ |
