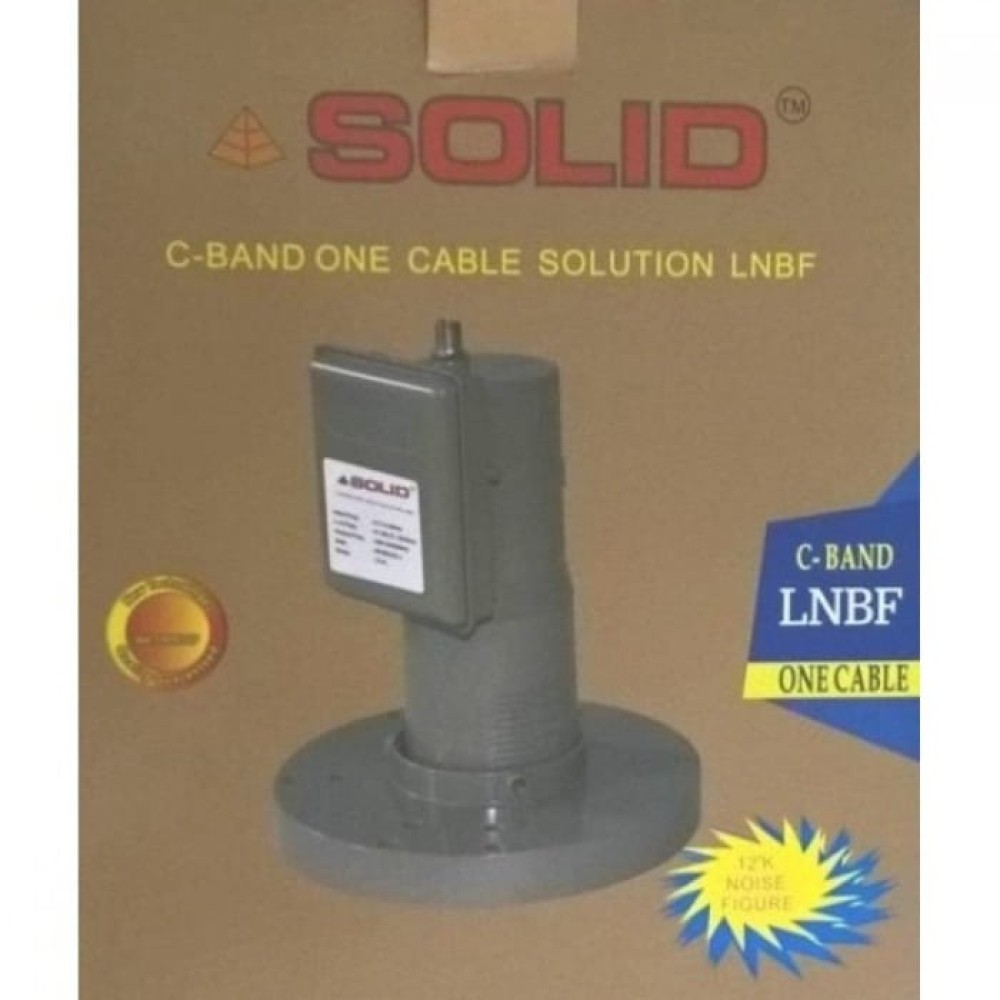

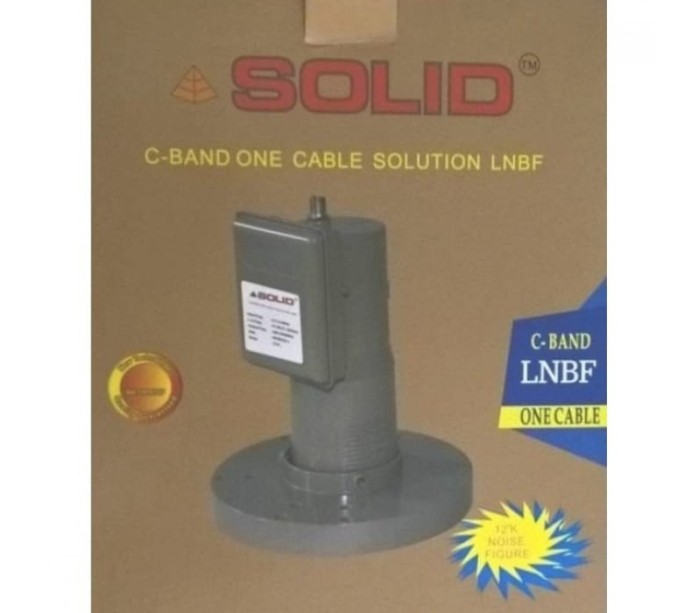

SOLID CB-SSL C-Band One Solution (C-Band Single Solution LNBF) LNBF

SOLID C-Band One Solution (C-Band Single Solution LNBF) LNBF

This LNB is best if you have one or more set-top boxes installed in your home or office. You can use a simple power pass splitter to connect all multiple set-top boxes.

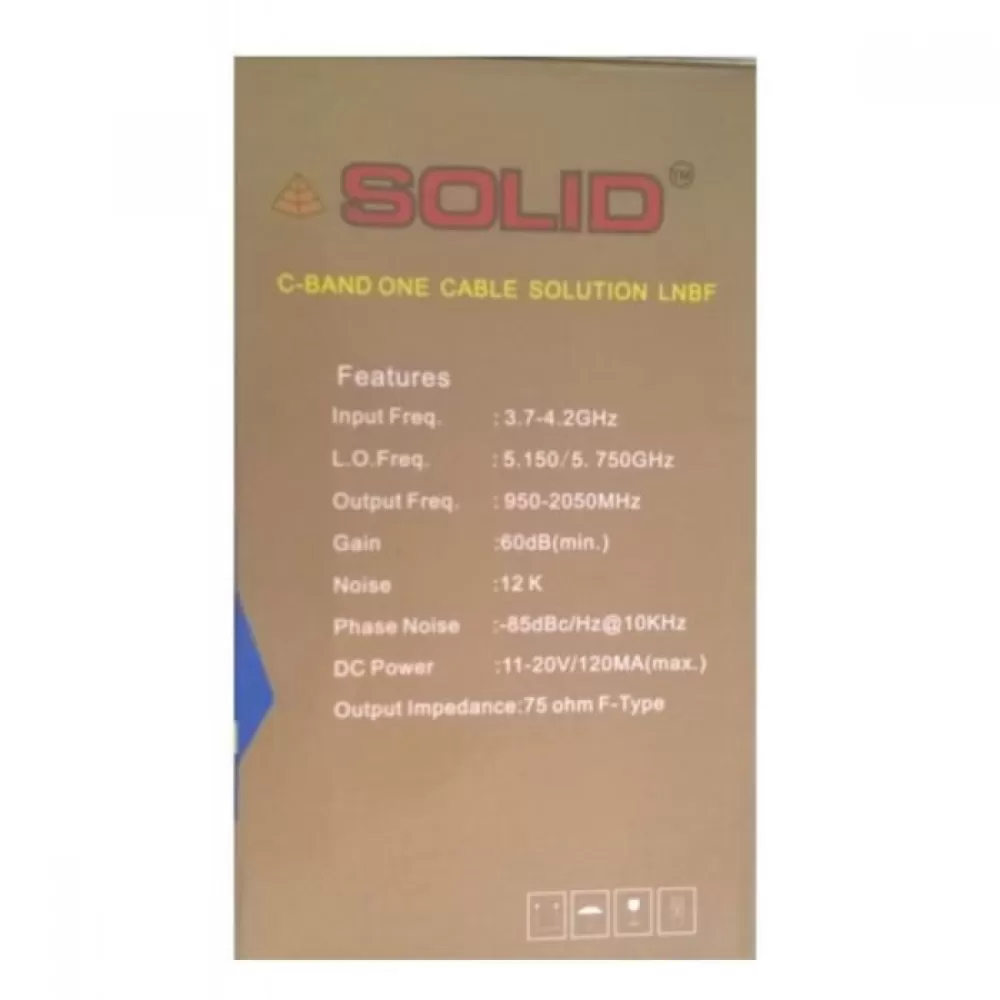

Technical Specifications:

Input - 3.7-4.2 GHz

LO Freq.: 5.150 - 5.750 GHz

Output Freq: 950-2050MHz

Stability: +/-250KHz

Gain: 60dB (Min.)

Noise: 12K

Phase Noise: -85dBc / HZ@10KHz

DC Input: 11-20V (Max.)

( Please note if you connect two or more set-top boxes then there is a gain loss is -10dB per set-top box, use loop connection from the set-top box.

 This C-Band LNBF is best suitable for receiving C-Band TV Signals using a C-Band Dish Antenna.
