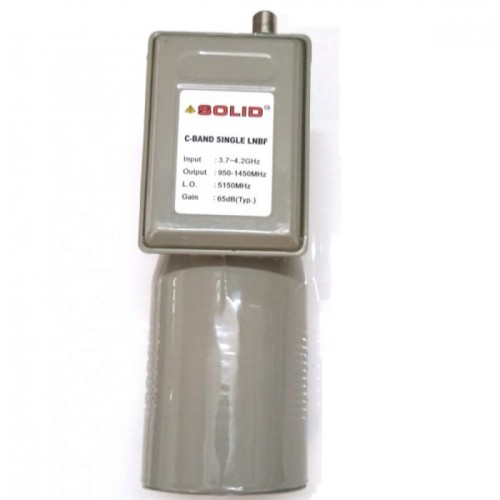

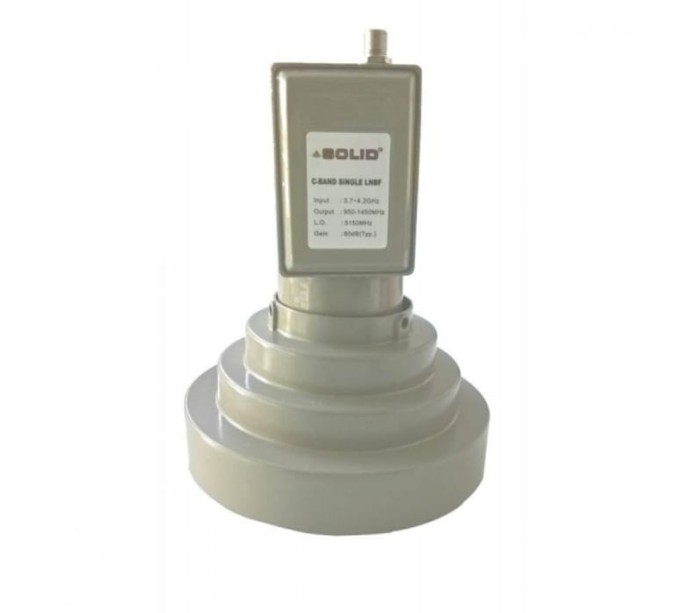

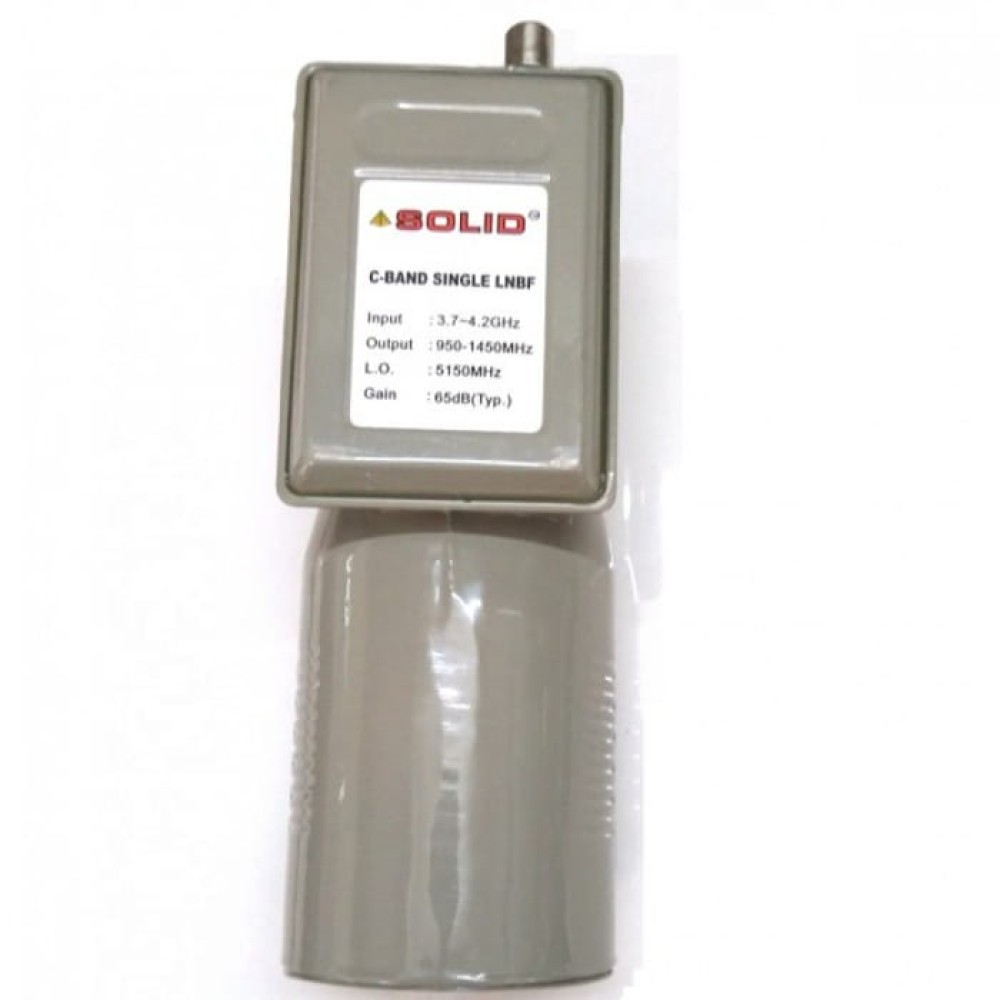

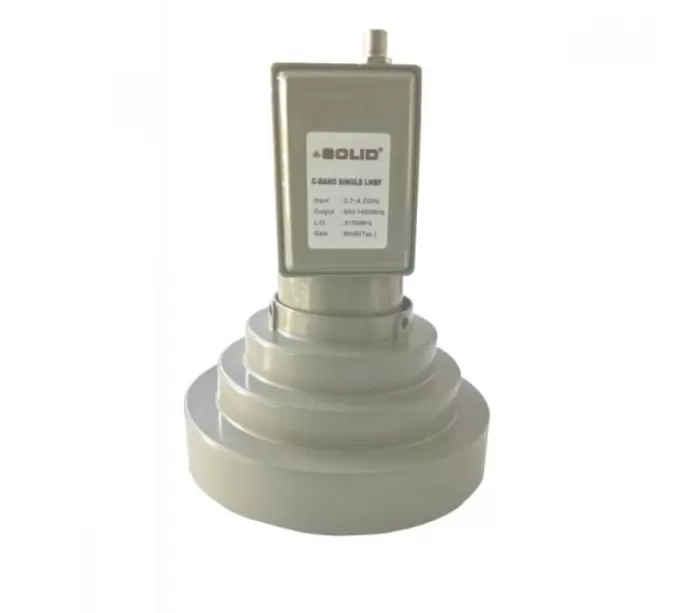

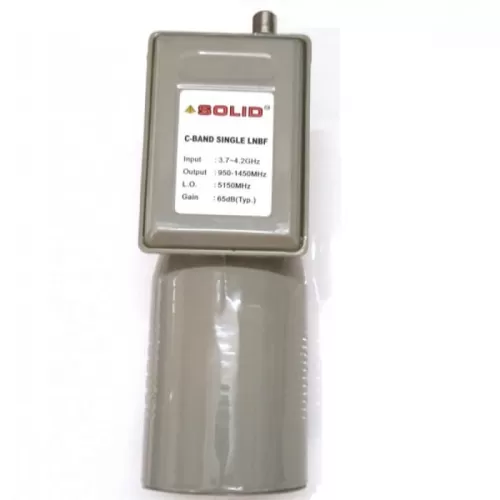

SOLID C-Band LNBF with Feedhorn for offset Ku-Band Dish Antenna
If you want to installed C-Band LNB on Ku-Band Dish antenna then this LNBF is best for you, This LNB comes with offset feedhorn and Clamp so that you can install easily.
C-Band LNBF with Feedhorn for an offset Ku-Band Dish Antenna is a specialized device designed to receive C-Band satellite signals using a dish typically meant for Ku-Band signals. Here’s a breakdown:
- C-Band LNBF: Low Noise Block Feedhorn that converts C-Band signals (3.7-4.2 GHz) to a lower frequency for easier transmission to your receiver.
- Feedhorn: Directs the satellite signals into the LNBF.
- Offset Ku-Band Dish: A dish designed for Ku-Band signals (3.7-4.2 GHz) but adapted to receive C-Band signals with this setup.
Benefits:
1.Versatility: Allows the use of an existing Ku-Band dish to receive C-Band signals, saving the cost of purchasing a new dish1
2.Improved Signal Quality: The feedhorn ensures that the signals are accurately directed into the LNBF, enhancing signal quality
3.Cost-Effective: Utilizing an offset Ku-Band dish for C-Band reception can be more economical than setting up a new C-Band dish system
4.Ease of Installation: Designed to fit easily onto existing Ku-Band dishes, making the installation process straightforward
5.Dual Band Capability: Some setups allow for switching between C-Band and Ku-Band, providing access to a wider range of channels
Technical Specifications:
Input - 3.7-4.2 GHz
LO Freq.: 5.150GHz
Output Freq: 950-1450MHz\
Gain: 65-70dB (Typ.)
Noise: 10K
Phase Noise : -85dBc/Hz@10KHz
Output Impedance: 75ohm F-Type

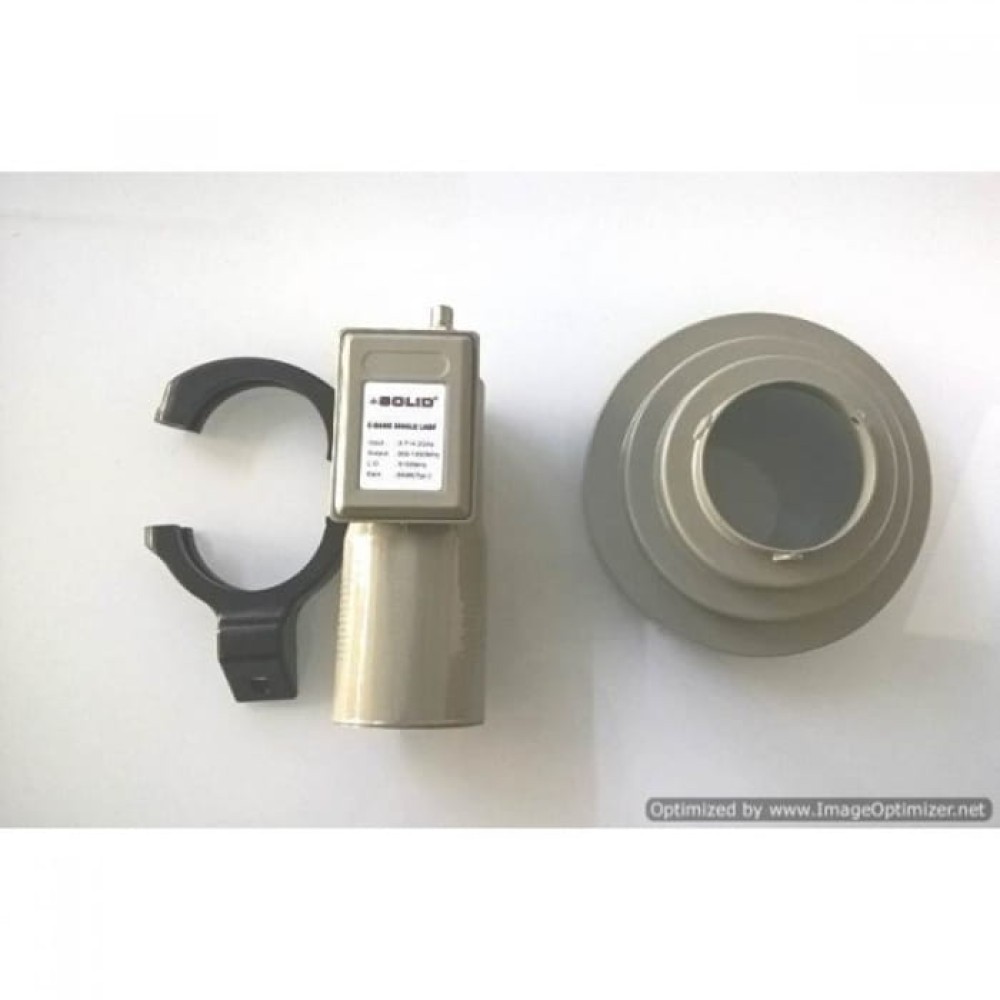

Package Included:
C-Band LNBF
Offset Clamp
Offset Feedhorn
Please note: This LNB will work great above 90cm KU-Band antennas.
