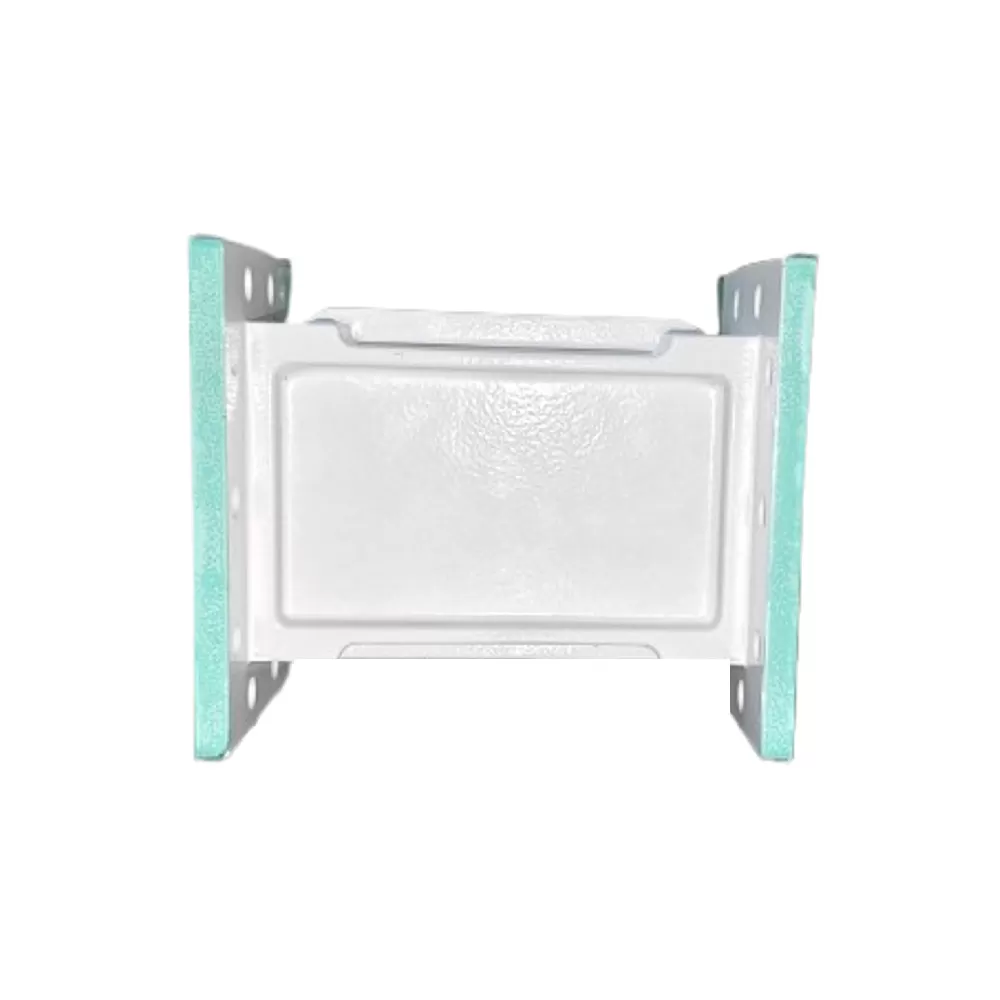

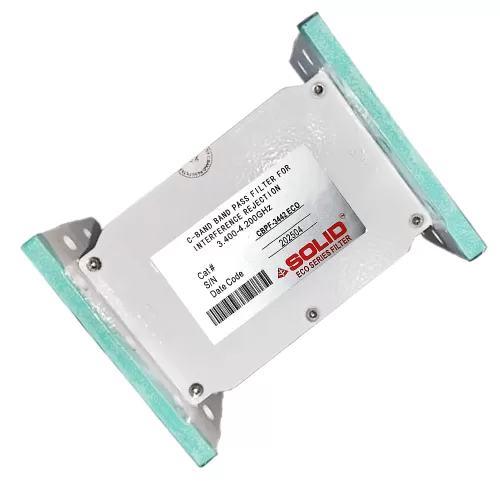

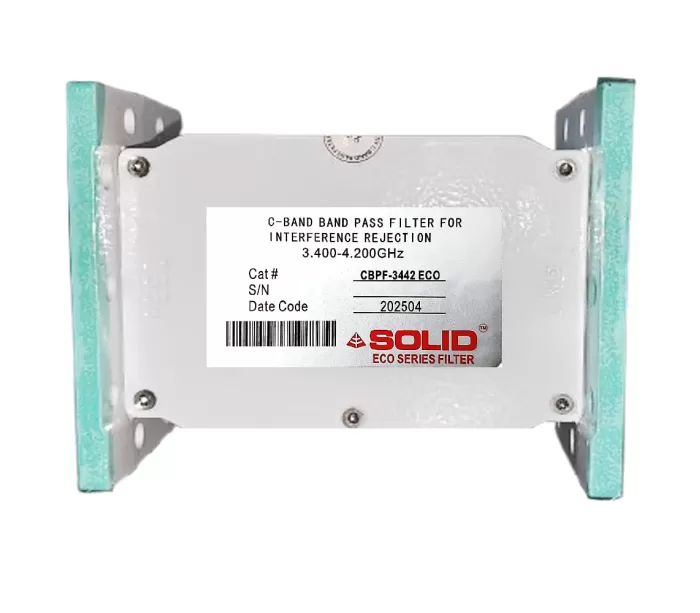

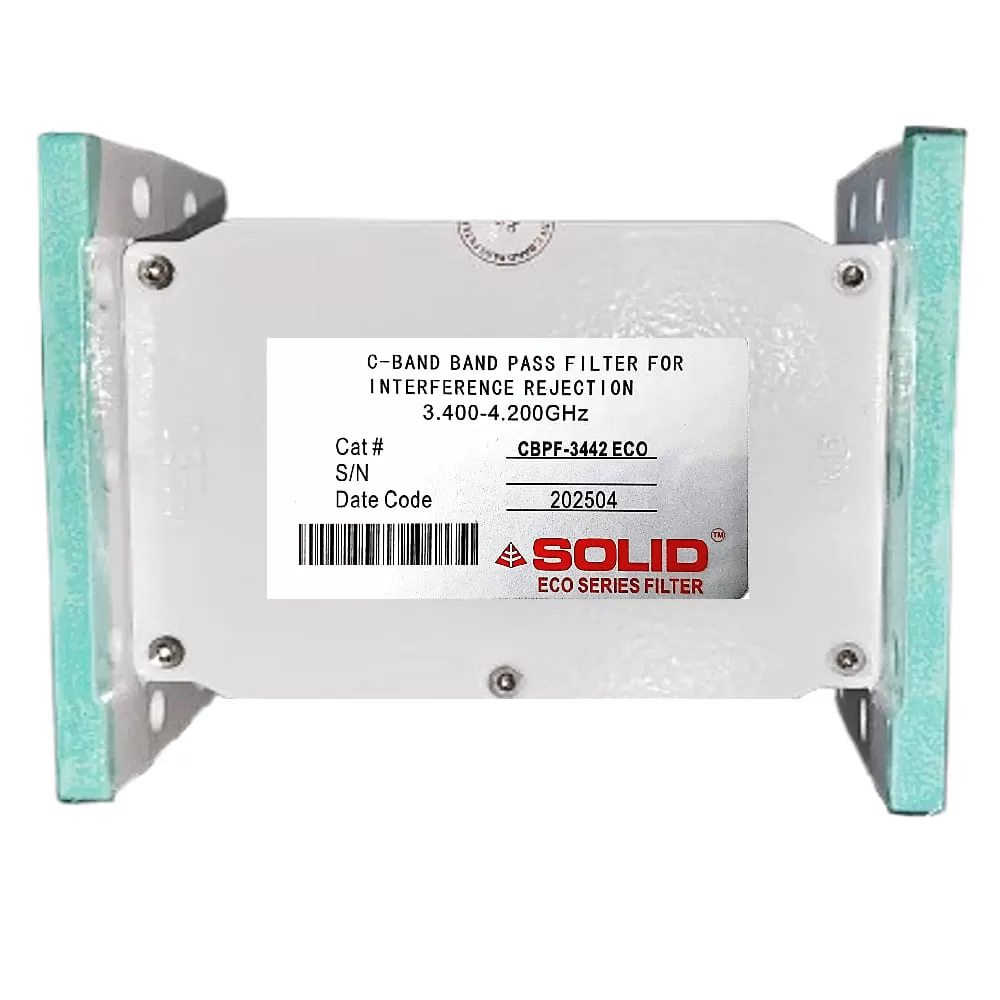

SOLID CBPF-3.400-4.200GHz C-BAND 5G PASSBAND FILTER
The SOLID CBPF-3700-4200MHz C-BAND 5G PASSBAND FILTER is a high-performance filter designed to mitigate 5G interference in C-Band satellite communications. Here's an overview:
Key Features:
C-Band Frequency Range: 3400-4200MHz , covering the C-Band satellite frequency range.
5G Passband Filter: Allows 5G signals to pass through while filtering out other frequencies, minimizing interference.
High Rejection: Provides high rejection of out-of-band frequencies, ensuring minimal interference.
Low Insertion Loss: Minimizes signal loss, ensuring high-quality signal transmission.
Compact Design: Suitable for use in various satellite communication systems.
Technical Specifications:
Frequency Range: 3700-4200 MHz
Insertion Loss: ≤0.4 max
Electrical Specifications: | |||
Type No. | FT6B37420230 | ||
Frequency Band (MHz) | 34 00-4200 | ||
Insertion Loss (dB)(Full temperature,Outcluding connectors) | 0.4 max | ||
Rejection (dB) | ≥75@3000-3500MHz,≥70@3500-3600MHz, ≥25@4250-4400MHz, ≥70@4400-5000MHz, | ||
Return Loss (dB)/VSWR | ≤-19/1.25:1 | ||
Input Power (W) | <100 | ||
Grorp Delay(ns) | 0.6 (Within +/-0.5MHz) | ||
Mechanical Specifications | Environmental & Compliance | ||
Dimensions,HxWxD (mm) | 120x98.4x69.9 | Operational Temperature (°C) | -40 to +65 |
Weight (kg) | 0.65 | Operational Humidity (%) | ≤95 |
Packing Size(mm) | 190x170x130 | Environment | IP67 |
Connector Type | CPR-229G(input),CPR-229F(output) | Application | Indoor and Outdoor |
Color | Apple White | RoHS | Compliant |
Mounting | Plane mounting | Finish | UV resistant Epoxy |
