Managing multiple TV connections from one satellite dish is now easier with a 16-Way Coaxial Splitter (5-2400MHz Power Pass). Whether you are setting up connections for a hotel, hostel, office, apartment, or large home installation, this splitter allows you to distribute the satellite signal to up to 16 set-top boxes efficiently.
Using a high-quality splitter ensures stable signal distribution without requiring multiple dish antennas.
What is a 16-Way Coaxial Splitter?

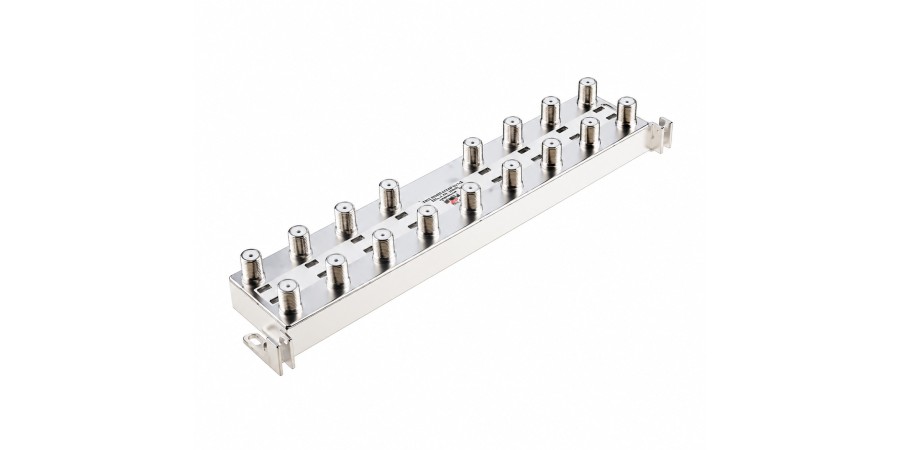

A 16-Way Coaxial Splitter is a signal distribution device that divides one satellite dish signal into sixteen separate outputs. Each output can be connected to an individual set-top box.
The 5-2400MHz Power Pass frequency range supports satellite TV signals, making it suitable for DTH and free-to-air satellite installations.
Benefits of Using a 16-Way Splitter
- Connect up to 16 set-top boxes from one dish antenna
- Reduces installation cost
- Eliminates the need for multiple dishes
- Ideal for hotels, apartments, offices, and commercial setups
- Easy cable management
- Stable signal transmission with proper installation
Connection Diagram Overview
Basic Setup
Dish Antenna → LNB → 16-Way Splitter → 16 Set-Top Boxes
The input cable from the dish antenna connects to the splitter input port. The splitter then distributes the signal equally to all connected receivers.
Step-by-Step Installation Guide
Step 1: Install the Dish Antenna
Mount the satellite dish properly and align it to the correct satellite for maximum signal strength.
Step 2: Connect the LNB Cable
Take the coaxial cable coming from the LNB and connect it to the INPUT port of the 16-way splitter.
Step 3: Connect All Set-Top Boxes
Use separate coaxial cables from each splitter output port to every set-top box.
Example:
Output 1 → Room 1 Set-Top Box
Output 2 → Room 2 Set-Top Box
Output 3 → Room 3 Set-Top Box
…and continue up to 16 connections.
Step 4: Power On the Devices
Turn on all set-top boxes and check signal quality from the receiver settings menu.
Step 5: Scan Channels
Perform a channel scan on each receiver to start watching satellite channels.
Important Tips for Best Performance
- Use good-quality coaxial cable for minimal signal loss
- Keep cable lengths balanced when possible
- Tighten all F-connectors properly
- Avoid bending cables sharply
- Use a powered amplifier if signal becomes weak over long distances
- Install the splitter in a dry and ventilated area
A 16-way splitter is perfect for:
- Hotels
- PG accommodations
- Hostels
- Apartment buildings
- Offices
- Schools and institutions
- Large homes with multiple TVs
Conclusion
With a 16-Way Coaxial Splitter (5-2400MHz Power Pass), you can easily connect up to 16 set-top boxes using a single dish antenna setup. It is a cost-effective and professional solution for multi-room satellite TV distribution.
A proper installation with quality cables and connectors ensures smooth and stable viewing on all connected TVs.
